www.nualight.com
N51571 Remote User Manual

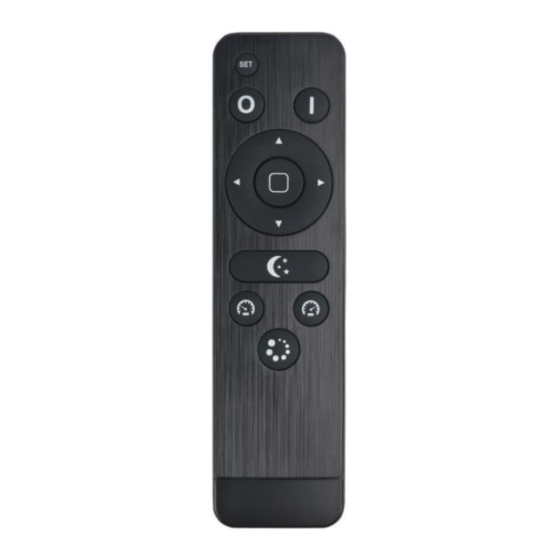

1. Product Picture

2. Product Feature

1）Product supply voltage is 3V(AAA*2);
2）2.4G wireless control, with feature of long distance and non-directional control;
3）Full keys design, unique interface, simple operation;
4）Work stable, low power consume, long standby time;
5）N51571 for N51570 PWM Dimmer 24V;

3. Technical Parameters

Working temperature
Sleep state current
Sleep state power consume
Net weight
2.4G remote control distance
Bright and Color adjust Grade
-20-60℃
Supply voltage
15uA
Emission current
45uW
Emission power
65g
Product size
≤30m
Emission frequency
1024
Battery life
3V （AAA*2PCS）
17mA
51mW
L150*W40*H20 (mm)
2.4Ghz
2 years
1 / 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N51571 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nualight N51571

  • Page 1 1）Product supply voltage is 3V(AAA*2); 2）2.4G wireless control, with feature of long distance and non-directional control; 3）Full keys design, unique interface, simple operation; 4）Work stable, low power consume, long standby time; 5）N51571 for N51570 PWM Dimmer 24V; 3. Technical Parameters 3V （AAA*2PCS） Working temperature -20-60℃...
  • Page 2 4. Remote Control Layout Function of each key as below： Name of Key Instruction Set button Blank key ON in any time OFF in any time Brightness + Increase light brightness( from darkest to brightest long press 6 seconds)
  • Page 3 Wireless remote control code value setting method The biggest advantage of this system is that it can not only solve the cabling problem in engineering wirelessly, but also realize a wired-like operation experience. In order to facilitate the early testing and debugging of the project, the factory status of the receiver is normally unpaired and each remote control has a unique code value.
  • Page 4 Press and hold the remote control “Off” for 1. Will automatically exit code transmission status 10 seconds. The indicator of the remote after 60 seconds, or pressing any key to exit. control flashes quickly, means it enters 2. If the original remote control is lost, the new the clearing code transmission status.
