Summary of Contents for AYVAZ YS-600

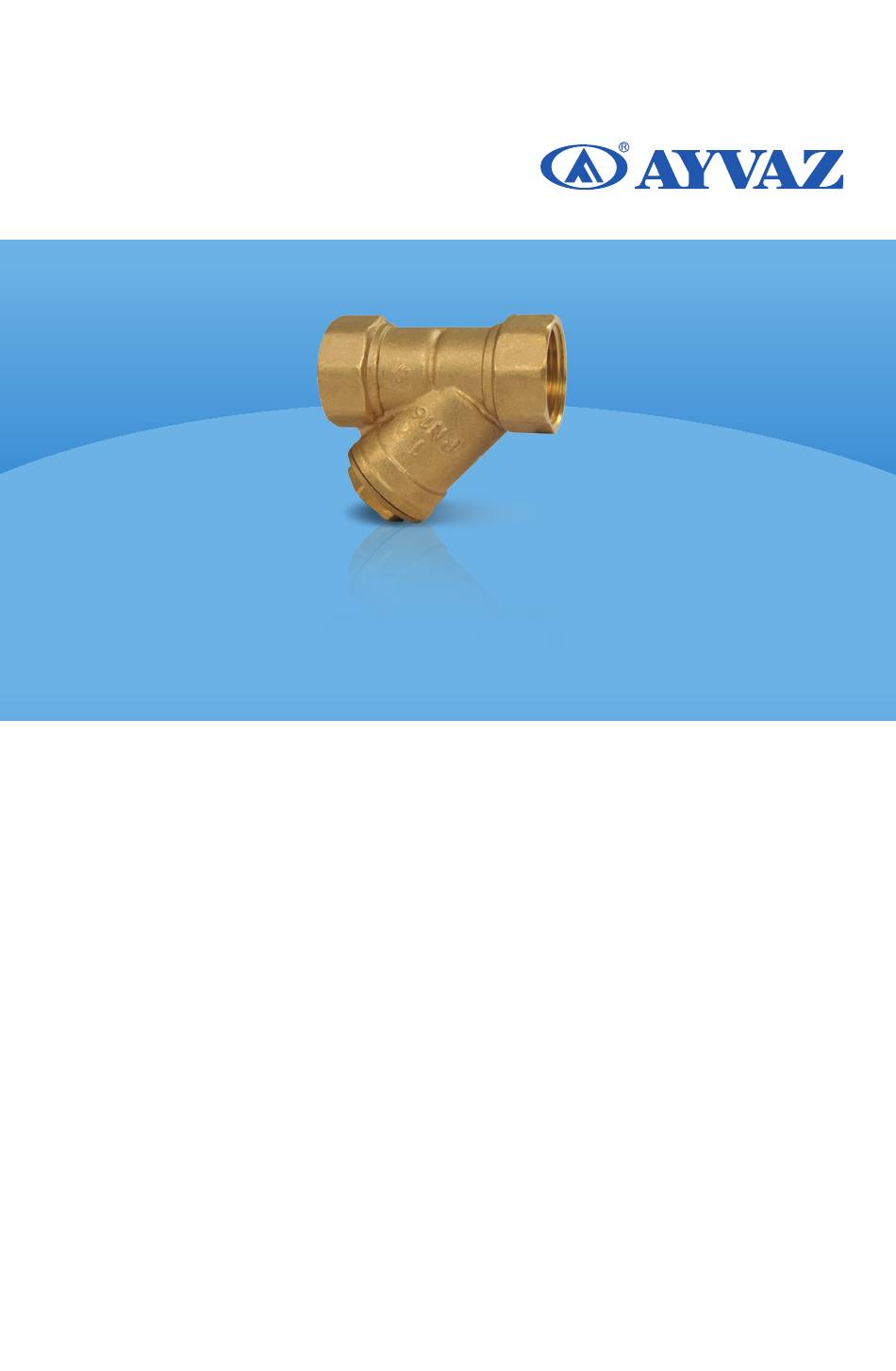

- Page 1 USER MANUAL Y-TYPE BRASS STRAINER YS-600...
- Page 2 FIRE DANGER Warning danger of fire! HOT SURFACE Warning risk of hot surface! © 10/2022 Hacı Ayvaz Endüstriyel Mamuller Sanayi ve Ticaret A.Ş. All Rights Reserved. AYVAZ® is a registered trademark. Please read this manual before you start using it!
-
Page 3: Table Of Contents
YS-600 CONTENT PAGE TITLE General Information General Features Safety and Environmental Instructions Transport, Packaging and Storage Installation Operation Maintenance and Cleaning Disassembly, Maintenance and Cut-out Technical Drawing... -
Page 4: General Information
· General terms and conditions stated at sales document. · Ayvaz reserves the right to change products, specifications at any time without any prior notice. PRODUCT CODE: YS-600 2. GENERAL FEATURES 2.1 GENERAL SAFETY INFORMATION The safety use of strainer according to working instructions can be done if it can be install and maintain by qualified person. - Page 5 Signs should be placed where the fluid temperature is 60 ° C and above. The item must be operated in accordance with the general safety instructions listed above. Ayvaz cannot be held responsible for problems arising from use that does not comply with the safety instructions.
-
Page 6: Transport, Packaging And Storage
YS-600 3.4 Responsibility of the User This item is a commercial product. Therefore, the user is responsible for legal obligations related to occupational safety. Along with the safety instructions specified in this user manual; accident prevention measures and environmental protection laws must be considered. -
Page 7: Installation
YS-600 5. INSTALLATION Before the installation, you should read safety instructions carefully. a- Check the label and technical information sheet if the product is suitable for the required installation. b- Check the maximum pressure and temperature values. lf the pressure in the system is higher than the maximum value of the product, provide the use of safety tools in order to prevent the excess pressure. -
Page 8: Maintenance And Cut-Out
YS-600 7. DISASSEMBLY, MAINTENANCE AND CUT-OUT Fluid that can cause physical injury, product damage and environmental damage. · Carefully clean the dismantled item to eliminate physical injuries, fluid damage, and damage to the environment. 7.1 Disassembly If there are closing valves, remove the item safely after closing the closing valves. If there is not closing valve, remove only the item to be disassembled on the tank when the system pressure and electrical connections are cut off. - Page 9 HEAD OFFICE - FACTORY Atatürk Sanayi Bölgesi Hadımköy Mahallesi Mustafa °nan Caddesi No: 44 Arnavutköy - °STANBUL Tel: +90 212 771 01 45 (pbx) | Fax: +90 212 771 47 27 info@ayvaz.com | www.ayvaz.com Cona Ayvaz Russia Ayvaz Germany Caserta/Italy...
