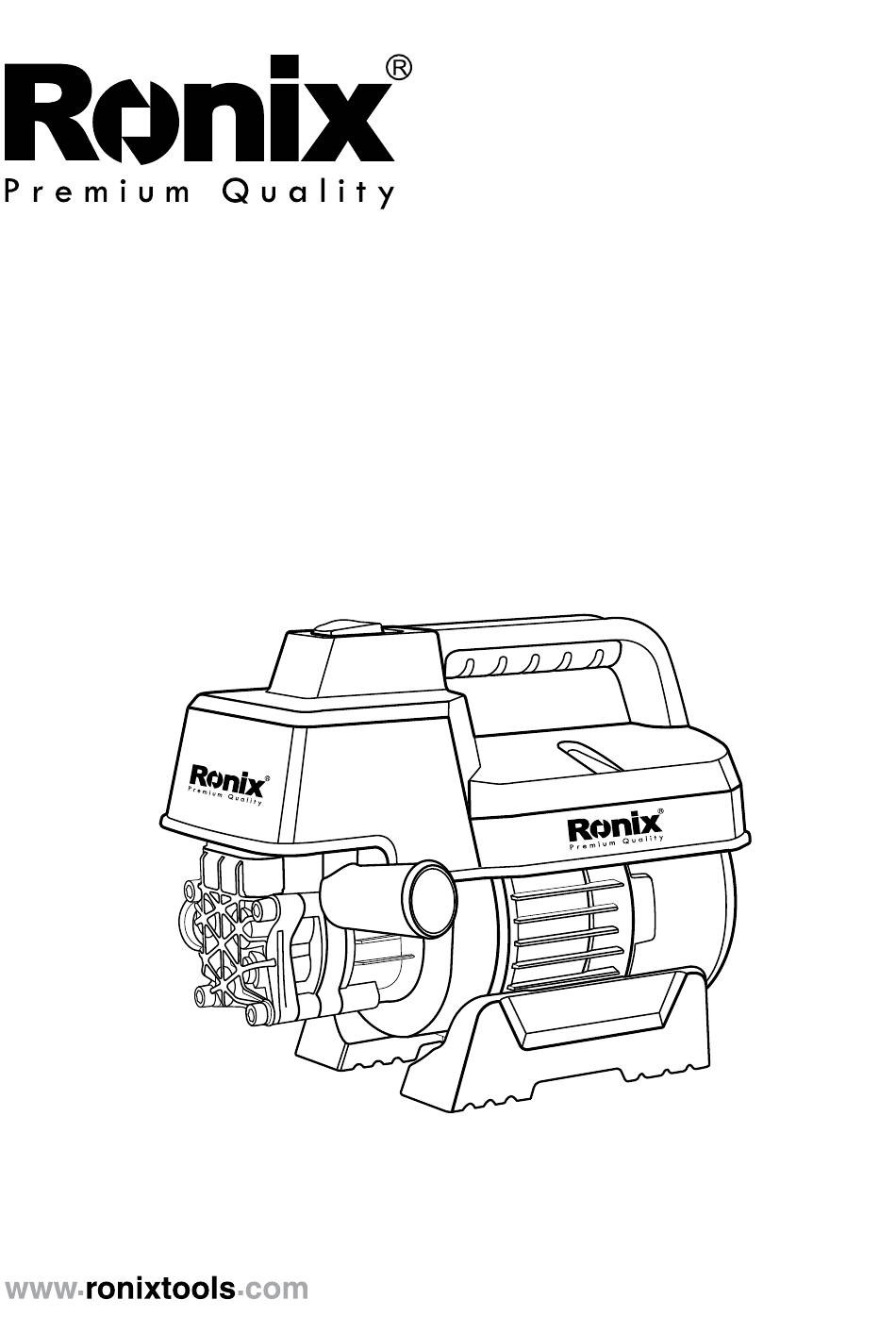

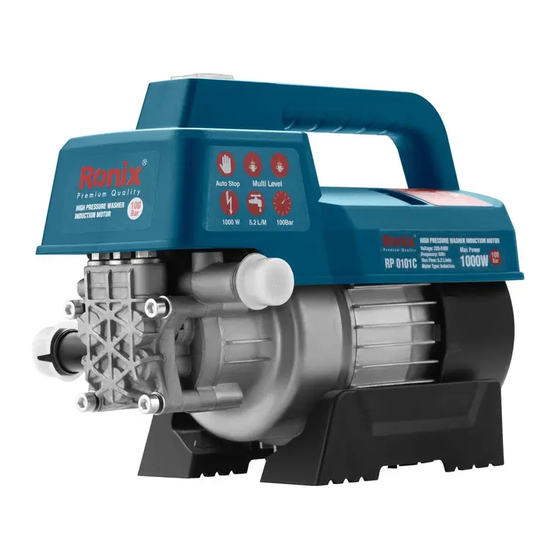

- Page 1 HIGH PRESSURE WASHER INDUCTION MOTOR RP-0101C...
-
Page 2: Parts List
SPECITICATIONS model RP-0101C motor induction power 1000W voltage 220-240V frequency 50-60HZ protection class degree of protection IPX5 max pressure 100bar max flow 5.2L/min rated tempreture 0-40 °C max inlet pressure 7 BAR sound pressure level 67±3dB(A) sound power level 80dB(A) vibration value: 3.3m/s2... -
Page 3: Product Description
PRODUCT DESCRIPTION PURFPOSE - The high pressure cleaner is designed to clean vehicle, machines, buildings, facades, etc. in the private sector. AREAS OF APPLICATION - Never use the machine in potentially explosive areas under any cirummstances! - The operating temperature must be between 0 and +40˚C - The machine consists of an assembly with a pump, which is encased in a shock absorbing housing. - Page 4 If you find any, do not start up your machine and contact your distributor. ESPECIALLY CHECK The insulation of the power cord should be faultless and with out any cracks. If the power cord is damaged, an authorized distributor should replace it. WARNING! - Do not use this appliance without reading this instruction sheets.
- Page 5 manufacturer or approved by the manufacturer. WARNING! Water that has flown through backflow preventers is considered to be non-potable. WARNING! The machine shall be disconnected from its power source during cleaning or maintenance and when replacing parts for mains operated machines by removing the plug from the socket-outlet.
-
Page 6: Mains Power Connection
- Comply with the below-mentioned requirements for length and cored dimensions. 1.0mm max.12.5m 1.5mm max.20m 2.5mm max.30m - Power cord connections should be kept dry and off the ground. - If the power cord is damaged, it must be replaced by the manufacturer or his service agent or similarly qualified person in order to avoid a hazard. - Page 7 washer to the electric installation: - The electric installation shall be made by a certified electrician and comply with IEC 60364. It is recommended that the electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms.
- Page 8 3. Connect the high-pressure hose to the water outlet Connect the other end of the high-pressure hose to the water outlet on the washer and twist the black rotatable end-piece as indicated to secure the connection. 4. Connect the garden hose to the water inlet Connect the garden hose adaptor(female coupler) to the water inlet of the pressure washer, then thread your garden hose(male end) into the garden hose adaptor.
-
Page 9: Operation
CAUTION: The washer must only be used with clean water; use of unfiltered water of corrosive chemicals will damage the washer. - Push the motor switch to “OFF” position. Check the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the washer rating plate. If the power supply is correct, you may now plug in the washer. - Page 10 - The washer is equipped with adjustable nozzle. - Jet adjustment from pencil to fan. WARNING! Do not adjust the nozzle while the triggter is squeezed. RECOMMENDED CLEANING PROCDURE - Dissolve dirt by applying detergent with the fan jet to the dry surface. On vertical surfaces.
-
Page 11: Maintenance
WARNING! BEFORE REUSING, COMPLETELY FLUSH THE UNIT OUT WISH PLAIN WATER. ANTI-FREEZE CAN DAMAGE PAINTWORK SO YOU MUST ENSURE THERE IS NO ANTI-FREEZE LEFT IN THE SYSTEM BEFORE USING IT AGAIN. MAINTENANCE CAUTION: Before working on the washer, disconnect the lug from the power supply socket. - Page 12 disappointments, you should check the following before contacting the service organization. In case problems other than the above occur, please contact your local distributor. Symptom Cause Recommended Action - Machine not - Plug in machine plugged in - Try another socket Machine refuses to - Defective socket - Replace fuse...
