Zled Lighting RGB FLOOD REMOTE CONTROLLER Manual

Hide thumbs
1
2

Advertisement

Table of Contents

PRODUCT FEATURES

This manual describes two types of RGB remote controls used for our RGB flood product. Both of them have the same functions but different
designs. Each remote controls the LED lights in up to four different zones, changes the color, dim/brighten the lights, warm/cool white, and
multiple programming options.

TECHNICAL PARAMETERS

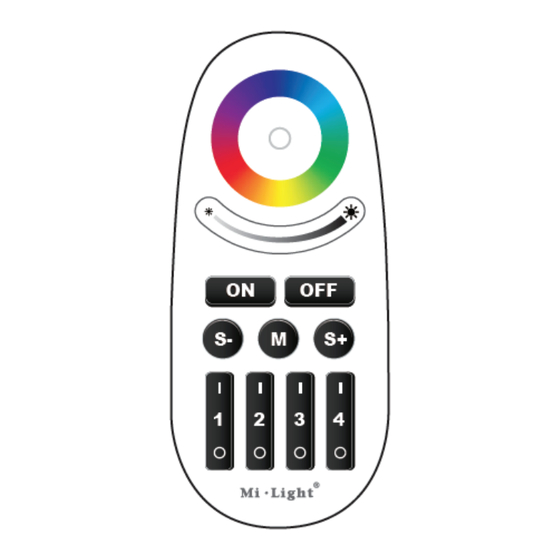

Product Name: RGB remote control with buttons
Voltage: 3V(AAA - 2PCS)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Control Distance: 98 feet
Size: 2.06" x 0.82" x4.72"
Product Name: Touch screen RGB remote control
Voltage: 3V(AAA - 2PCS)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Control Distance: 98 feet
Size: 2.06" x 0.82" x4.72"

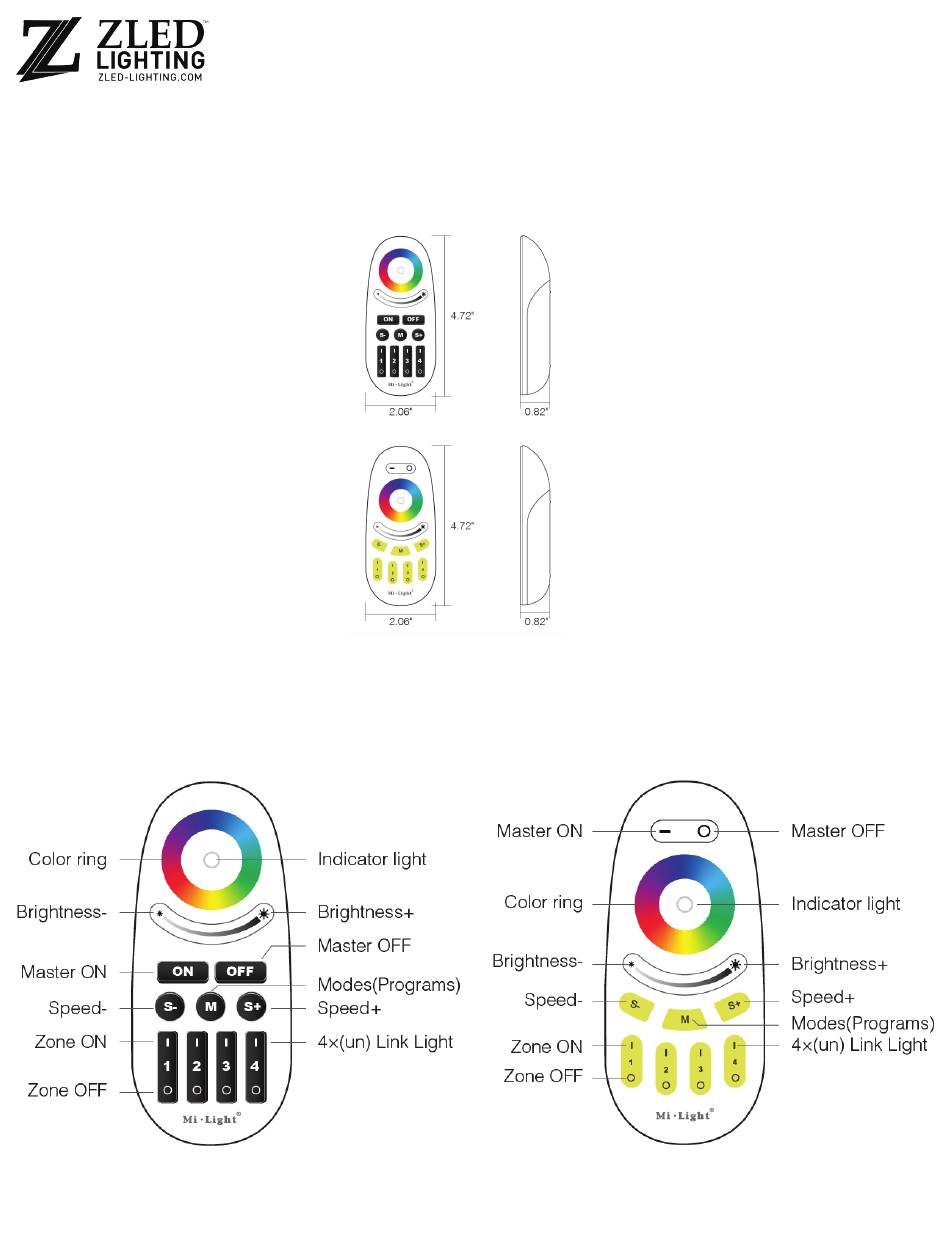

PRODUCTS KEY DIAGRAM

Hold "Z" to get to white mode. Under white mode, press 'S-' to get warm white, press 'S+' to get cool white. Under color mode, press 'S+/S-'
for saturation control. When pressing 'M', 'S+/S-' can adjust the speed of the dynamic modes. To dim all RGB lights at once or change the
color, first press "Master ON". To do this with individual lights, first press "Zone ON".Then choose the color or brightness according to the
color ring or brightness ring.
Specifications and actual product may vary.
Office (800) 679-9243 • Fax (888) 336-2165 • sales@zled-lighting.com • www.zled-lighting.com
RGB FLOOD REMOTE CONTROLLER
05/21/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RGB FLOOD REMOTE CONTROLLER and is the answer not in the manual?

Questions and answers

Summary of Contents for Zled Lighting RGB FLOOD REMOTE CONTROLLER

  • Page 1 RGB FLOOD REMOTE CONTROLLER PRODUCT FEATURES This manual describes two types of RGB remote controls used for our RGB flood product. Both of them have the same functions but different designs. Each remote controls the LED lights in up to four different zones, changes the color, dim/brighten the lights, warm/cool white, and multiple programming options.
  • Page 2 RGB FLOOD REMOTE CONTROLLER LINKING & UNLINKING Linking Instructions Uninking Instructions If the light does not blink quickly, the unlink failed. Please switch off If the light does not blink slowly, the linking fails. Please switch off the light again and follow the above steps to unlink again the light again and follow the above steps again.
