Konig CMP-VOIP60 Instructions

CMP-VOIP60

1. Package contents

- SIP Internet Phone
- Manual
- UTP Cable
- Power Adapter

2. Hardware installation

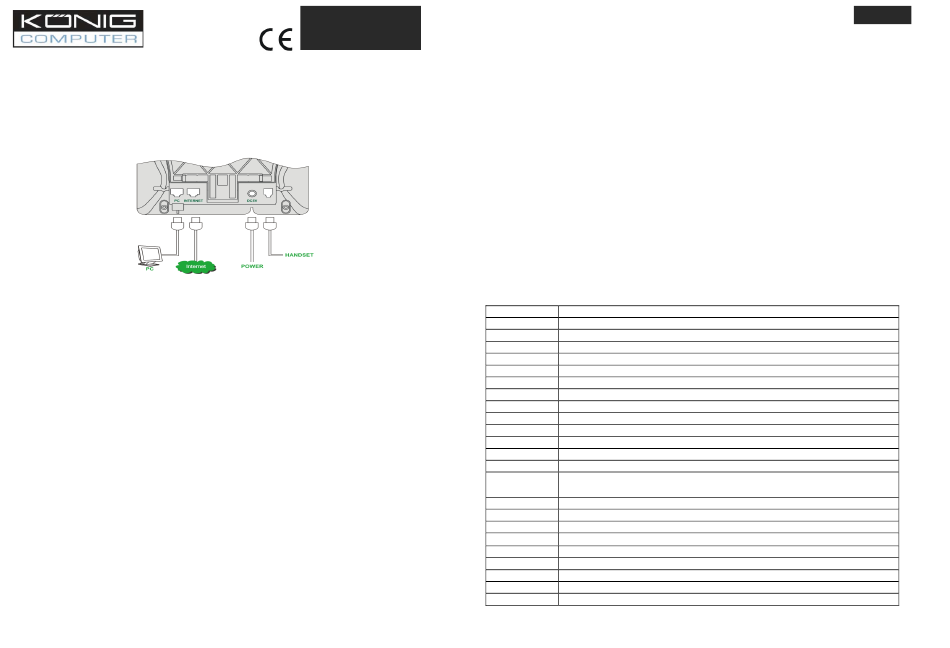

Please install your phone as the connection chart above shows.

3. Setting up the phone

3.1 Obtaining IP address

First of all, you should obtain the IP address of the phone. After you connect the phone with your
local network, it will get an IP address automatically by DHCP (server assigned). Press MENU
button and up/down to select the 'Network' menu and press ENTER, then press up/down to
select the Status menu, then press ENTER.
You will see L for LAN port IP and W for WAN port IP. The default LAN port IP is 192.168.123.1.

3.2 Use the web based programming page

After getting the correct IP, open an Internet Explorer browser on the PC which is connected with
the same network as the phone (Please ask your network administrator how to set your PC).
Then put the IP address in the Web page. At the end of IP address, please add the port number
":9999", for example: http://192.168.123.1:9999 and press Enter. You will see the login screen.
The default account and password are
For admin user:
Account: root
Password: test
For normal user: (With this account you can not set some parameters, e.g. SIP domain)
Account: user
Password: test

3.3 Network Settings

Click the menu Network->WLAN Settings and Network->LAN Settings to set the network
parameters. Please consult your ISP or network administrator about it. DHCP is the default
network type. Your phone will get the required network parameters such as IP and subnet mask
automatically.
ENGLISH
INSTRUCTIONS
-1-
If your network uses static IP, you should set local IP, subnet mask, gateway IP, DNS1 and
DNS2 first. If your network uses PPPoE, you should set the PPP password first.

3.4 Set time and SNTP server

Click the menu Phone Setting->SNTP Settings to set your SNTP server and time zone.
Note: If your service provider has pre-programmed some settings such as Primary Server,
Secondary Server, Time Zone, Synchronic Time, and so on, you will not need to program these
items.

3.5 SIP Settings

After you have the IP setting completed as above, you should set following parameters which are
required to log in SIP Server: Display Name, User Name, Register Name, Register Password,
Domain Server, Proxy Server, SIP Port, RTP Port, DTMF setting.

3.6 Save Settings and Reboot

Simply click the Save button and quit the browser after the Configure OK screen appears, and
then click the Reboot button.

3.7 Normal Operation

After the phone reboots, it will show the time and the account information.

3.8 Use Keypad to set this device

Note: Before you set SIP Setting, you need to get authority in the menu Administrator->System
Authority. You should input roots password here. The input keys:
Key Name Description
1 "1", "-", " ", "!", "?"
2 "2", "a", "b", "c", "A", "B", "C"
3 "3", "d", "e", "f", "D", "E", "F"
4 "4", "g", "h", "I", "G", "H", "I"
5 "5", "j", "k", "l", "J", "K", "L"
6 "6", "m", "n", "o", "M", "N", "O"
7 "7", "p", "q", "r", "s", "P", "Q", "R", 'S"
8 "8", "t", "u", "v", "T", "U", "V"
9 "9", "w", "x", "y", "z", "W", "X", "Y", "Z"
0 "0", "space"
* "*", "•", ":", "@"
# Start dialing process
MENU This is the "Menu" key to set the IP Phone
UP/DOWN
This is Up / Down key and volume setting when hook off. Incoming
calls/dial calls when ready.
FWD Call forward
CONF 3-way conference
ENTER This is "ENTER", accept setting
DEL
This is "Delete", Delete word or phone number
HOLD This is "HOLD" function
CONTACTS This is "CONTACTS", Phone Book
FLASH This is "FLASH" function
RD This is "RD" the same number again
SPK This the Speaker Phone
