Summary of Contents for Arduino WisGate Edge Pro

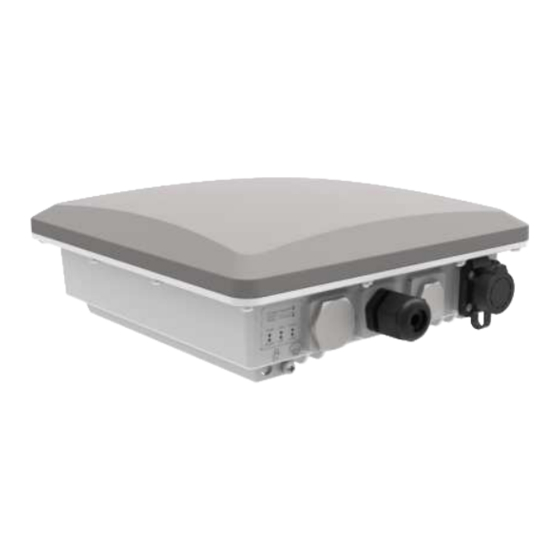

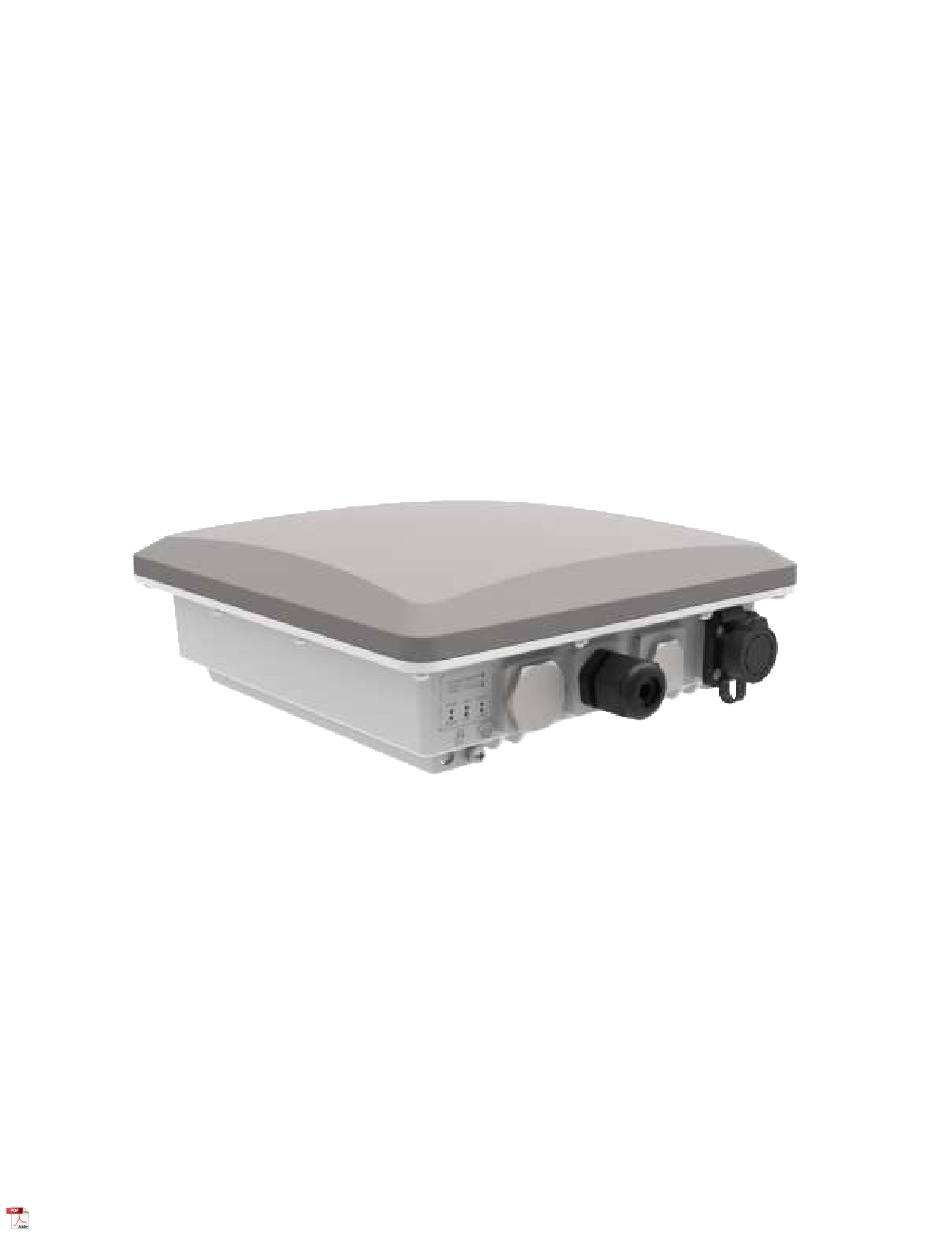

- Page 1 User manual for WisGate Edge Pro (RAK7289 series)
-
Page 2: Product Description
Customizable in terms of the backhaul connectivity options, antenna type, and power provisioning. WisGate Edge Pro is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability. -
Page 3: Packing List
Supports 2.4 G Wi-Fi AP for configuration 100M Base-T Ethernet with PoE Power supply PoE (IEEE 802.3 af), 37~57 VDC 12V/1A Support RAK Battery Plus Ingress protection IP67 Enclosure material – Aluminum and plastic Operating temperatures -30 ˚C to +55 ˚C ... -
Page 4: Interfaces And Connectors
Waterproof Tape (1x) PVC Insulating tape (1x) 12V Cable(1x) Installation Guide(1x) 4 Interfaces and connectors The gateway’s interfaces and connectors are illustrated below: Console NanoSIM Ground Pad Ethernet(POE) Reserved 12V DC IN Reset TF Card Antenna Port Antenna Port (LoRa2) (LoRa) -
Page 5: Status Leds
Note: the SD card and the SIM card do not support hot-swap. Please always turn off the gateway before you insert or take off SIM or SD card. Note: Do not power the Gateway without a connected antenna/s. This may damage the radios. -
Page 6: Installation
• ON - Connection Successful • Flash - Data Receiving and Sending Flash slowly/ • Flash slowly 1 (200ms Bright/1800ms Dark)- Flash quickly Unregistered network (Network searching) (Available for C • Flash slowly 2 (200ms Dark/1800ms Bright)- Idle model) status (online) •... -
Page 7: Connecting Power Over Ethernet
Step 3: Hang up the device and fasten it with two M6*12 Screws. 7 Connecting Power over Ethernet Step 1: Connect the other end of the Ethernet cable from the enclosure to the Ethernet port labeled POE on the adapter. Step 2: Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the adapter. - Page 8 Cut off about 50 cm waterproof tape. Stretch it to double the length. Wrap three layers around the Step 2 connector with a 50% overlap. Hold the tape in place with your hand for a few seconds. Wrap three additional layers with PVC tape with natural uncoiling force and a 50% overlap. Make sure Step 3: to cover the head and the tail of the connector.
-
Page 9: Accessing The Gateway
Username: root Password: root For WisGate Edge Pro models V2 and H you need to set the login password at the first login. WAN P THERNET Connect the Ethernet cable to the port marked “ETH” on the Gateway and the other end to the PoE port of the PoE injector. - Page 10 Company Address Allnet Maistr. 2, Munich 82110 Germering, Germany Marcom SRL (marcomweb) Via della Metallurgia 11, 37139 Verona, Italy Via Andrea Appiani 25, Arduino SRL 20900 Monza MB Italy Economic operators for UK: Company Address Metavurt Ltd 1st Floor Tuspark Newcastle 27 Grainger Street NE1 5JE Newcastle upon Tyne UK Correct Disposal of this product.
- Page 11 FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.
- Page 12 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
