Summary of Contents for Spectrex SharpEye 40/40 Duct Mount

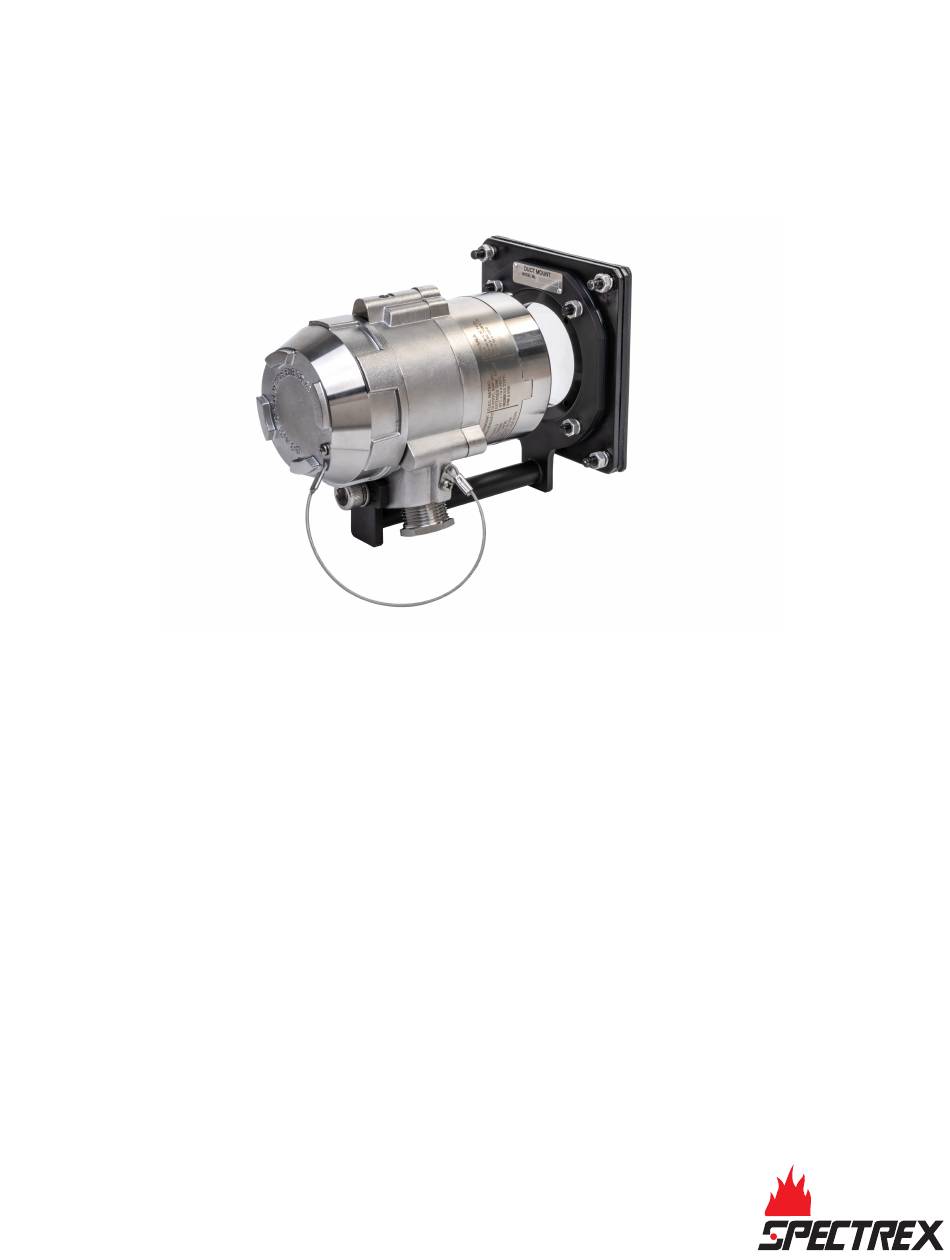

- Page 1 Installation Manual 00925-0600-4975, Rev AC May 2022 ™ Spectrex SharpEye 40/40 Duct Mount...
- Page 2 Legal notice The device described in this document is the property of Emerson. No part of the hardware, software, or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission from Emerson.
- Page 3 Warranty 1. Limited Warranty . Subject to the limitations contained in Section 2 (Limitation of Remedy and Liability) herein, Seller warrants that (a) the licensed firmware embodied in the Goods will execute the programming instructions provided by Seller; (b) that the Goods manufactured by Seller will be free from defects in materials or workmanship under normal use and care;...
- Page 5 Installation Manual Contents 00925-0600-4975 May 2022 Contents Chapter 1 Description........................ 7 Chapter 2 Install the Duct Mount....................9 Chapter 3 Technical support.....................15 Chapter 4 Dimensional Drawing....................17 SharpEye 40/40...
- Page 6 Contents Installation Manual May 2022 00925-0600-4975 Spectrex.net...
-
Page 7: Description
Installation Manual Description 00925-0600-4975 May 2022 Description This document describes the installation instructions for the Duct Mount P/N 877670. The Duct Mount is suitable for use with the SharpEye 40/40C and 40/40D models. The Duct Mount allows flame detection in areas where high temperatures exist or in cases where the detector cannot be installed inside the area. - Page 8 Description Installation Manual May 2022 00925-0600-4975 Spectrex.net...
-
Page 9: Install The Duct Mount
Installation Manual Install the Duct Mount 00925-0600-4975 May 2022 Install the Duct Mount Procedure 1. Prepare the surface. a) Check the air duct installation surface stability. Install the Duct Mount as close as possible to a riding girder connection in order to ensure proper support to the Duct Mount and the Flame Detector. - Page 10 Installation Manual May 2022 00925-0600-4975 Figure 2-2: Disassembling the Duct Mount A. Four spring washers M6 B. Four plate nuts M6 C. Four spring washers M6 D. Four base nuts M6 b) Detach the internal plate and base plate. Spectrex.net...
- Page 11 Installation Manual Install the Duct Mount 00925-0600-4975 May 2022 Figure 2-3: Duct Mount Parts A. Two internal plates B. Base plate C. Four spring washers M6 D. Four plate nuts M6 E. Duct mount base F. Four spring washers M6 G.
- Page 12 D. Duct installation surface E. Base plate F. Four spring washers M6 G. Four plate nuts M6 H. Duct mount base I. Four spring washers M6 J. Four base nuts M6 The base plate and duct mount base are now connected. Spectrex.net...
- Page 13 Installation Manual Install the Duct Mount 00925-0600-4975 May 2022 Figure 2-5: Duct Mount Parts After Assembly 4. Mount the detector. Insert the detector at the pin and secure it using a screw. Note The screw is already mounted on the detector. Remove it and reinstall it facing the other direction.
- Page 14 Install the Duct Mount Installation Manual May 2022 00925-0600-4975 Spectrex.net...
-
Page 15: Technical Support
Installation Manual Technical support 00925-0600-4975 May 2022 Technical support For all technical assistance or support contact: Emerson Automation Solutions 6021 Innovation Boulevard Shakopee, MN 55379-9795 T +1 866 347 3427 F +952 949 7001 safety.csc@Emerson.com SharpEye 40/40... - Page 16 Technical support Installation Manual May 2022 00925-0600-4975 Spectrex.net...
-
Page 17: Dimensional Drawing
Installation Manual Dimensional Drawing 00925-0600-4975 May 2022 Dimensional Drawing SharpEye 40/40... - Page 18 00925-0600-4975 Rev. AC 2022 For more information: Emerson.com © 2022 Emerson. All rights reserved. Spectrex is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
