Summary of Contents for Mi-Light MiBOXER WL-Box2
-
Page 1: Table Of Contents
Subordinate New Brand 2.4GHz Gateway Instruc�on Contents ....................2 Product features ..................... 3 Product parameter ................3 Indicator status instruc�on ............4-10 Smartphone app control instruc�on ................4 Install “Tuya Smart” APP ..................4-5 Pairing network ....................6 Copy remote .................... -
Page 2: Product Features
Product features It’s compa�ble with MiBoxer 2.4GHz RF products. It communicate icloud with smartphone via Wi-Fi network, user can do remote control for connected lights via “Tuya Smart” or “MiBoxer” App. Support third party voice control, meet every smart applica�on in your home. Compa�ble with 2.4GHz RF Third party voice control products... -
Page 3: Product Parameter

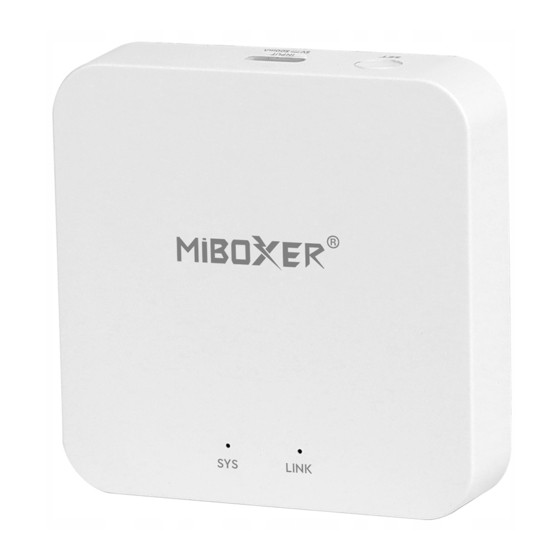

Product parameter Model No.: WL-Box2 RF: 2.4GHz Input: 5V 500mA (Type-C) Transmi�ng Power: 6dBm Working Temperature: -10 ~ 40°C 2.4G RF Control Distance: 30m Wireless Technology: Wi-Fi IEEE 802.11b/g/n 2.4GHz 64.5mm 15mm Indicator status instruc�on Device status “SYS” Indicator “LINK” Indicator Pairing with Wi-Fi Flash quickly Off... -
Page 4: Smartphone App Control Instruc�On
Smartphone app control instruc�on Download an install “Tuya Smart” APP Search “Tuya Smart” in apple or google store, or scan QR code directly. Please creat account if using in the first �me. Pairing with Network (5G router is useless) 1). Wire gateway with power source, enable smart phone to connect with WiFi. - Page 5 3). Click “+” in APP 4). Select “Ligh�ng” 5). Find out “Light Source (BLE+Wi-Fi)” 6). Finish every step based on instruc�on ⸺ 5 ⸺...
-
Page 6: Copy Remote
Copy Remote While you have mul� lamps which are already linked with remote, the new gateway have two control solu�ons for your lamp： Way 1: Follow instruc�on of linking gateway and link gateway with your lamp. (Disadvantage: waste �me) Way 2: Use “Copy remote” func�on, it can control lamps once copying is done. -
Page 7: Select Zones
How to select zones? 1). Click connected gateway, Eg: “2.4G Gateway”. 2). Explana�on Zone -1 Zone +1 Short press to select zones Short press to select zones (Master zone, 1-16 group zone) (Master zone, 1-100 group zone) A�en�on: “ 0 ” means master group ⸺... -
Page 8: Rename Group Zones
How to rename group zones? A�en�on: only support to rename master zone and 1-16 zones 1). Long press to “Choose zone” 2). Click zones which you want to rename (Eg: ALL) 3). Type new name 4). Click “Save” ⸺ 8 ⸺... -
Page 9: Link / Unlink
Link/Unlink instruc�on The lamp must be linked with gateway. One zone can control countless MiBoxer 2.4G lamps. Link: 1). Select group zones; 2). Power off lamps and power on again a�er 10 seconds (review lamp instruc�on) 3). Lamp is on, short press “Link” 1 �me 4). -
Page 10: Share Device In Home
Share device in home 1). Click “ ” 2). Click “Share Device”, follow instruc�on on APP ⸺ 10 ⸺... -
Page 11: Alexa Voice Control Instruc�On
Alexa voice control instruc�on Please add device into Tuya Smart App (details in page 4) before doing following steps: 1). Open Alexa App 2). Click “More” on the bo�om of right corner 3). Click “Skills & Games” 4). Click “ ”... -
Page 12: Google Home Voice Control Instruc�On
Google Home voice control instruc�on Please add device into Tuya Smart App (details in page 4) before doing following steps: 1). Open Google Home App 2). Click “+” on the top of le� corner 3). Click “Set up device” 4). Click “Works with Google” 5). -
Page 13: A�En�On
A�en�on 1. Please stay away from magne�c area, otherwise signal will be affected 2. Don’t install device in the place where have strong sunshine, high temperature or humidity feature, working temperature is -10~40°C. Scan QR code or review video from following link h�ps://miboxer.com/wifi-series-video Made in China ⸺...
