Introduction

This HDMI powerline extender applies the HDBitT transmission protocol and transmits audio and video signal over existing power line. It does not require any cabling. Under the same electric meter, it just needs to connect transmitter and receiver. Power them on and they can match automatically.
Plug and play design giv es users ver y convenient and por table connection.

Features

It use powerline to transmit signal, and can be connected where there is outlet, eliminating the wiring of network cable or HDMI Cable.
Input voltage: AC 100~ 240V.
It can extends 1080P@ 60Hz signal up to 300M under the condition of fluent electric power environment.
It supports IR pass back.
Supports HDMI loop output from TX
Fireproof raw material is used to ensure safety and reliability.
Easy setup, plug and play.

Package contents

Installation Requirement

HDMI source device (DVD, PS3, Set top box, PC etc).
HDMI display device like SDTV, HDTV, and projector with HDM I port.
AC 100~ 240V Power input.

Panel description

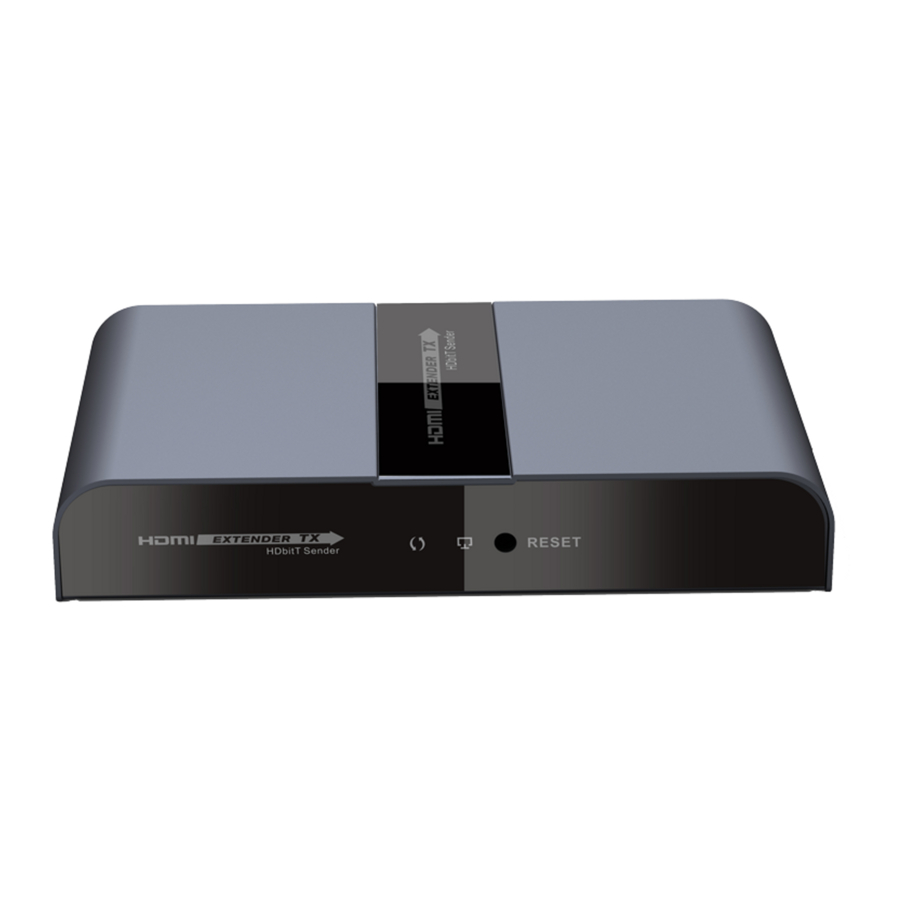

HDMI Extender TX sender

	Data transmission led	Led blinks slowly when it is connecting. Led blinks fast when it is successfully connected and transmitting data
	Connection led	Led blinks to indicate a working circuit connection
	Reset	Press reset button to restart the device
	Power input	Connect with A C100~240V power line
	IR blaster extension cable interface	Connect with IR blaster extension cable. Please put the IR blaster close to source device to best transmit the IR signal from receiver
	HDMI output	Connect with HDMI display device
	HDMI input	Connect with HDMI sour ce device

HDMI Extender RX receiver

	Data transmission led	Led blinks slowly when it is connecting. Led blinks fast when it is successfully connected and transmitting data
	Connection led	Led blinks to indicate a working circuit connection
	Reset	Press reset button to restart the device
	Power input	Connect with A C100~240V power line
	IR receiver extension cable interface	Connect with IR receiver extension cable. Please make sure the remote control is within the required range of IR receiver.
	HDMI output	Connect with HDMI display device

Connection

FAQ

TV display "waiting for connection... " on the bottom right corner?
Please check if the power supply of TX (sender) is well connect ed and the power indicator led lights on.

TV display "Please check the TX input signal"?

please check if there is an HDMI signal input of sender TX.
Try to connect the signal source directly to display device to see if there is signal output from source device or change the signal source, HDMI cables and try again.

Display not fluent and stable

Please check if the powerline is arranged smooth and If the powerline length is over the limitation of this product.
Please check if the pow erline capacity is over loaded
Please check if there is electricity interruption equipment. And it is advised to plug in wall outlet and av oid using power charger and power adapter.

Specification

Items	Specification
HDMI signal	Full compatible with HDCP
Transport protocol	HDbitT
Support resolution	480i@ 60H z, 480p @ 60Hz, 576i@ 50Hz, 576p@ 50Hz, 720p@ 50 / 60Hz, 1080i@ 50/60Hz, 1080p@ 50/60Hz
Transmit distance	It extends 1080P@ 60Hz signal up to 300 meters in good electric power environment. Note: The transmission distance may vary in different electric power environment.
IR remote control	Support 20 ~ 60kHz IR remote device
Working temperature	0 60
Input voltage	AC 100 240V
Power consumption	TX: 7.5W; RX: 7W
Enclosure material	fireproof engineering plastics
Product dimension	150(W) x 92.7(D) x 25(H) mm*2 pcs
Weight	TX: 330g RX: 316g
Color	Black
