Summary of Contents for Nikro DV15360

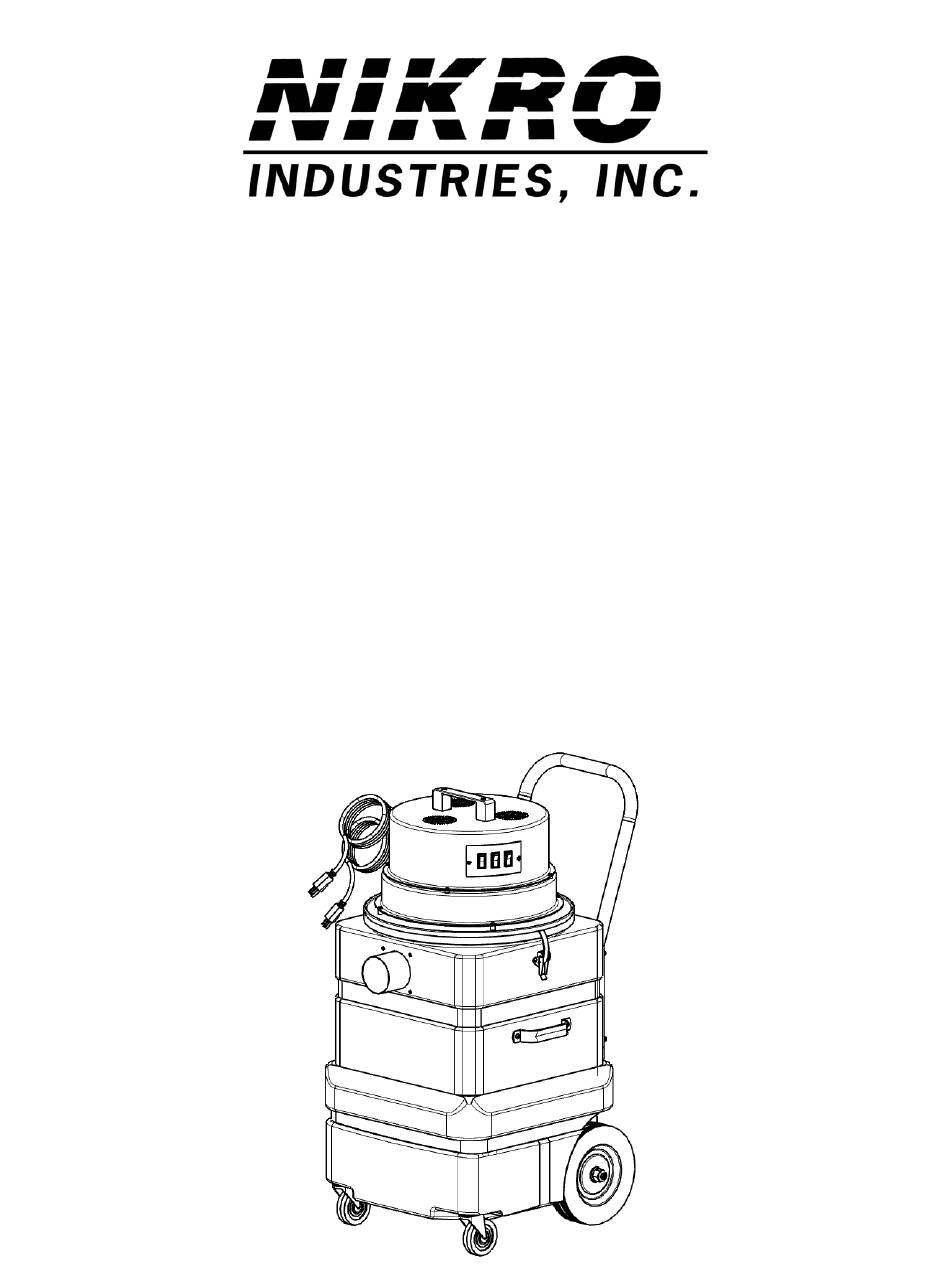

- Page 1 DRYER VENT / CHIMNEY HEPA FILTERED VACUUM MODEL #DV15360 INSTRUCTION MANUAL...
- Page 2 All Nikro Industries Inc. products that have rated efficiencies of 99.97% @ 0.3 microns and/or 99.99% @ 0.3 microns, have H.E.P.A. filters that have been individually tested to meet these minimum efficiencies. Although all the filters have been pre-tested, the possibility of leaks or filter failure due to handling, transportation, punctures, loaded filters, moisture, wear and tear, etc., does exist.
-
Page 3: Important Safety Instructions
19. This vacuum should never be operated without the proper filters installed in the manner described in the following pages of this manual. 20. This machine should never be serviced by anyone other than an authorized technician. 21. This vacuum is for commercial use only. 22. Use only original NIKRO replacement parts and attachments. -
Page 4: Electrical Specification
This machine is designed to operate on two 115V., 60 hz., AC circuits. A deviance of this could cause serious damage to the unit. The DV15360 is equipped with 3 motors which are controlled by three independent on/off switches (see photo #1). - Page 5 PACKAGING Please do not discard any of the packaging until you have inspected the vacuum and it is operational. Make sure the contents are intact and complete. If there are any missing parts please contact Nikro immediately. CONTENTS 1 - #DV15360 – 15 Gallon HEPA Filtered Vacuum 1 - #861286 Dryer Vent / Chimney Tool Kit: #861280 –...
- Page 6 TANK AND FILTER PREPARATION 1. Take the clear 4-mil poly bags with breather holes and set it into the vacuum tank. There are 1/2" round holes (breather holes) located about 6" from the top of the bag. Take one of these holes and stretch it open to approximately 3"...
- Page 7 FILTER OPTIONS AND SUGGESTIONS CHIMNEY CLEANING AND FINE DUST PICK-UP: When using the vacuum for chimneys it is recommended that all filters be in place to prevent premature loss of suction and to extend the life of the HEPA filter. The poly bags can be eliminated when the paper collection bag is being used.
- Page 8 PROCEDURES FOR REMOVING CONTAMINATED FILTERS Caution: When removing contaminated filters or using this machine, you should always wear gloves, clothing and a respirator approved for the particular contaminant that you are working with. FILTER REMOVAL PROCEDURES 1. Turn off and unplug machine 2.
- Page 9 HOSE AND ATTACHEMENTS / CLEANING TIPS The #DV15360 vacuum comes complete with 1 1/2" hose, wand, 3" round dust brush, 9" crevice tool and 5" utility tool. These tools will be used for contact vacuuming and general purpose clean up. The vacuum also comes complete with a 3"...
- Page 10 LID ASSEMBLY PC NO PART NO PART NAME 861122 520003B MOTOR 861124 MOTOR HOUSING 861123 DOME 861203 SWITCH BRACKET 861290 SWITCH 861291 LID HANDLE SWITCH GASKET ELECTRICAL CORD STRAIN 520015 RELIEF 860186 ELECTRICAL CORD 520018 LID GASKET 861294 MOTOR & LID ASSY...
- Page 11 15 GALLON TANK ASSEMBLY PC NO PART NO PART NAME 860802 TANK 860804 FRONT CASTER 860584 AXLE ASSEMBLY 520227 REAR WHEEL 860220 SIDE HANDLES 860803 LID LATCH 860550 HANDLE 861292 3” INTAKE DOWN TUBE COUPLER 861288 Shown ASSY #DV15360 WIRING DIAGRAM...
-
Page 12: Warranty
WARRANTY Nikro HEPA Vacuums are warranted for 2 years from the date delivered to the original end user and may not be assigned or transferred. Parts, which become defective due to faulty workmanship or materials during normal use in this period will be repaired or exchanged at no charge if returned and approved by an authorized Nikro service center.
