Summary of Contents for AGT INDUSTRIAL AGT-SSEFGC175

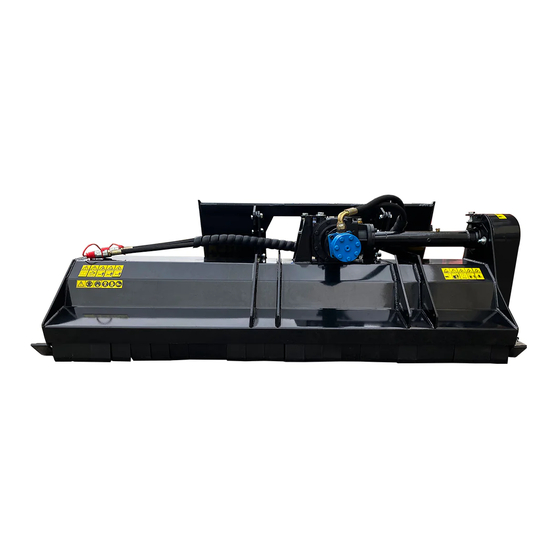

- Page 1 AGT INDUSTRIAL PRODUCT MANUAL Skid Steer Flail Mower Model:AGT-SSEFGC175 Ver.1.1.3...
- Page 2 TABLE OF CONTENTS TABLE OF CONTENTS 2/12 TO THE OWNERS 3/12 SAFETY PRECAUTIONS 4/12 FLAIL MOWER ASSEMBLES 7/12 NOTES 12/12...
- Page 3 TO THE OWNERS GENERAL COMMENTS Congratulations for having this Flail Mower! Your Flail Mower was carefully designed and manufactured to give you years of dependable service. Your Flail Mower will require some minor maintenance to keep it in top working condition.
- Page 4 SAFETY PRECAUTIONS BEFORE OPERATION 1. The operator must read the operation manual carefully before installation, operation or maintenance. Improper operation will cause the machine damage or the operator death. 2. Read all the safe signs and safe declarations. Follow all the professional safe terms, local laws or the professional directions.
- Page 5 SAFETY PRECAUTIONS Operator Safety ►Wear protective clothing and equipment appropriate for the job. Clothing should be snug fitting without fringes and pull strings to avoid entanglement with moving parts. ►Prolonged exposure to loud noise can cause hearing impairment or hearing loss. Wear suitable hearing protection such as earmuffs or earplugs. ►Operating equipment safely requires the operators all attention, Avoid wearing radio headphones while operating machinery.
- Page 6 SAFETY PRECAUTIONS Wear Protective Equipment ►Escaping fluid under pressure can penetrate the skin causing serious injury. ►Avoid the hazard by relieving pressure before disconnecting hydraulic lines or performing work on the system. ►Make sure all hydraulic fluid connections are tight and all hydraulic hoses and lines are in good condition before applying pressure to the system.
- Page 7 FLAIL MOWER ASSEMBLES PART NO. PART DESCRIPTION QTYS NOTE GB/T 5782 Bolt M16*120 GB/T 97.1 Washer 16 LM180.27 Bushing LM180.25 Bushing for wheel LM180.10 Wheel Φ220*75 GB/T 6182 LOCK NUT M16 WLF130.4 Axle adjusting sleeve 02 WLF130.3 Axle adjusting sleeve 01 JB／T 7940.1-1995 Greaser M8 WLF130.2...
- Page 8 FLAIL MOWER ASSEMBLES PART NO. PART DESCRIPTION QTYS NOTE GB/T 5783 Bolt M12*35 GB/T 93 SPRING WASHER 12 GB/T 97.1 Washer 12 GB/T 91 Pin 3.2*22 GB/T 97.1 Washer 10 EFGC175.24B Wide fender WLF130.6 Shaft bar EFGC175.24B Wide fender EFGC175.24B Wide fender GB/T 5783 Bolt M12*35...
- Page 9 FLAIL MOWER ASSEMBLES PART NO. PART DESCRIPTION QTYS NOTE WLF130.25 Pipe for grease Φ6*Φ4 WLF130.24 Tension rollers assemble 46-1 WLF130.24.1 Tension plate weldment 46-2 WLF130.24-2 Tension Roller 46-3 GB/T 276 Bearing 6005-Z 46-4 WLF130.24-3 Washer 46-5 GB/T 5783 Bolt M12*30 GB/T 6170 NUT M12 WLF170.5...
- Page 10 FLAIL MOWER ASSEMBLES PART NO. PART DESCRIPTION QTYS NOTE 65-1 LM180.26-1 Connector 01 65-2 AS 568 O RING Φ32.92*3.53 65-3 GB/T 5862 FLAT FACED COUPLERS G1/2 MALE 65-4 GE15LRED Connector 02 65-5 WLF130.27-1 Hydraulic hose: Length:2000mm 65-6 GE10SRED Connector 03 65-7 GB/T 5862 FLAT FACED COUPLERS G3/8 FEMALE...
- Page 11 FLAIL MOWER ASSEMBLES PART NO. PART DESCRIPTION QTYS NOTE 65-1 LM180.26-1 Connector 01 65-2 AS 568 O RING Φ32.92*3.53 65-3 GB/T 5862 FLAT FACED COUPLERS G1/2 MALE 65-4 GE15LRED Connector 02 65-5 WLF130.27-1 Hydraulic hose: Length:2000mm 65-6 GE10SRED Connector 03 65-7 GB/T 5862 FLAT FACED COUPLERS G3/8 FEMALE...
