Summary of Contents for Manufacturas Lenin MLP-4000

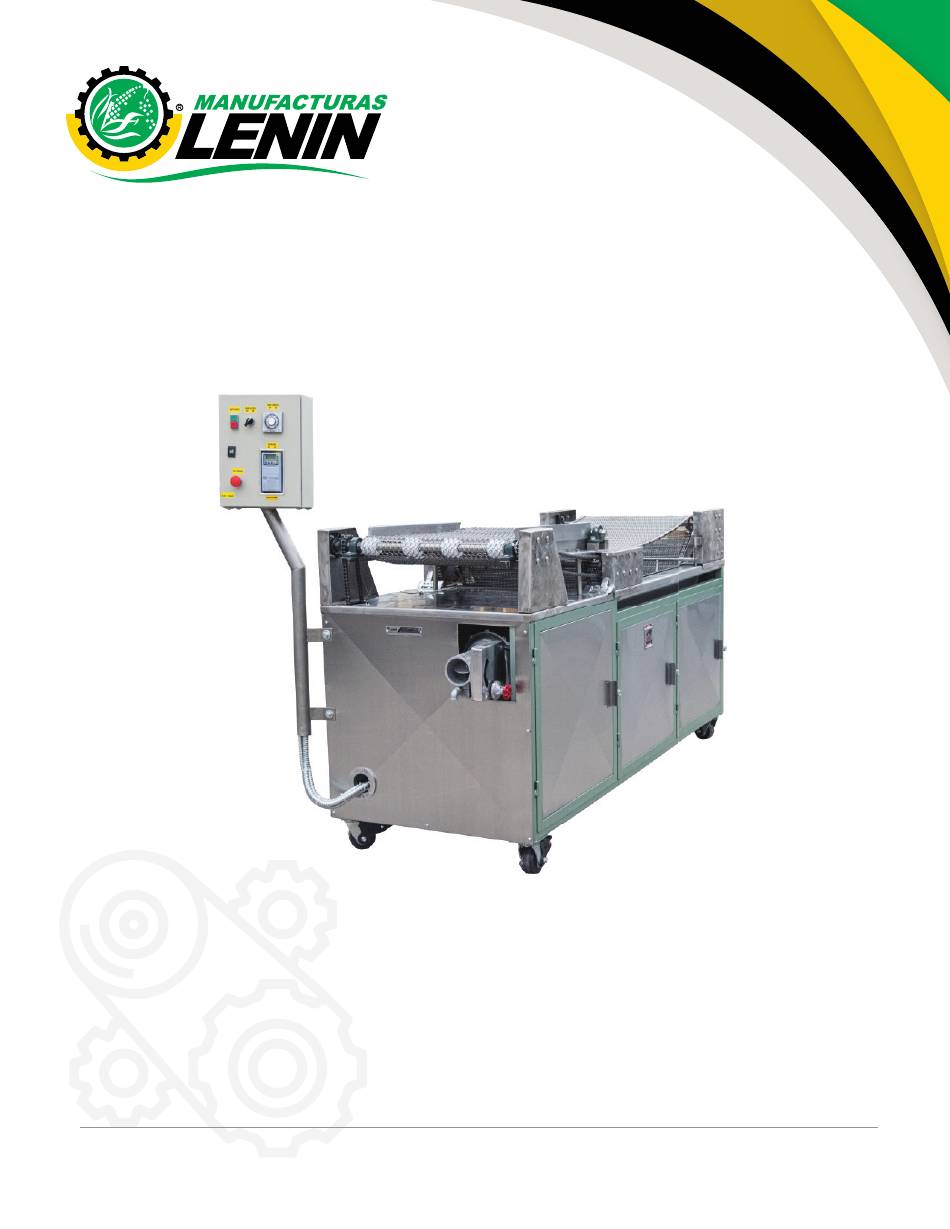

- Page 1 MLP-4000 FRYER OPERATION’S MANUAL MEXICANTORTILLAMACHINE.COM...
- Page 2 The total or partial reproduction of this manual is prohibited by any means, whether printed or electronic; without the prior, express and written authorization of the author. MLP-4000 FRYER OPERATION’S MANUAL VER. 2.0 · MARCH 2023...
- Page 3 INDEX GENERAL SAFETY INSTRUCTIONS CAUTION GAS AND ELECTRICAL INSTALLATION COMPONENTS OPERATING INSTRUCTIONS CLEANING AND MAINTENANCE...
-
Page 4: General Safety Instructions
MLP-4000 FRYER OPERATION’S MANUAL GENERAL SAFETY INSTRUCTIONS WARNING: To reduce the risk of injury, read all instructions properly. Failure to follow the instructions listed below can cause electric shock, fire, serious injuries, mutilation and/or damage to the equipment. A. SAFETY IN THE WORK AREA. - Page 5 MLP-4000 FRYER OPERATION’S MANUAL CAUTION The following symbols indicate the safety measures that must be taken before and after starting up the equipment. ELECTRICAL RISK In which you can suffer electric shocks if you do not comply with the electrical safety provisions.
- Page 6 MLP-4000 FRYER OPERATION’S MANUAL GAS AND ELECTRICAL INSTALLATION At the outlet of the gas tank, a model 10-080 high-pressure regulator must be installed, with a pressure gauge (0-7 Kg.) to verify the correct supply pressure. The pipe used for the connection is ½”of diameter, either L-type copper or 40-gauge black tubing.
- Page 7 MLP-4000 FRYER OPERATION’S MANUAL COMPONENTS CONTROL PANEL SLIDE CARBURETOR VALVE LIDS...
- Page 8 MLP-4000 FRYER OPERATION’S MANUAL Lower gas connection to 1/2” Connect to a 220 volt outlet with high-pressure regulator. Connect gas hose to the carburetion system Pour approximately 70 liters of oil into the fryer. (factory carbureted equipment) Press motor valve start button.
- Page 9 MLP-4000 FRYER OPERATION’S MANUAL Open air valve kite by placing it as shown Open the gas valve and turn on the nozzles, wait in the image. 10 minutes and check the temperature. The ideal temperature for a dry product is 170°...
-
Page 10: Fryer Cleaning
MLP-4000 FRYER OPERATION’S MANUAL Carry out a test with the product to verify the Start your production when you get the desired temperature and speed of the fryer. product. FRYER CLEANING To drain the oil, open the drain valve located Lift the structure and the mesh to clean. -
Page 11: Cleaning Procedure
MLP-4000 FRYER OPERATION’S MANUAL CLEANING PROCEDURE WARNING: The cleaning procedure must be done with the machine completely stopped to avoid accidents. FRYER CLEANING 1. Once the production day is over, wait a few minutes for the dehydrator to cool down. - Page 12 MLP-4000 FRYER OPERATION’S MANUAL It is recommended to change the Lubricate gears and bearings with oil every three months. The used oil BAT3 Grease (A) must be drained and 1 liter of new SAE 250 must be added. Lubricate chains with SAE 40 oil (B) The following table shows the type of lubricant to put in all parts of the machine.
- Page 13 HEADQUARTERS AV. INDUSTRIAS #3665, ZONA INDUSTRIAL CP 78395 SAN LUIS POTOSÍ, SLP. MÉXICO 444 127 11 80 444 129 29 79 info@manufacturaslenin.mx MEXICANTORTILLAMACHINE.COM...
