Summary of Contents for Feider Machines FCD15KW-1

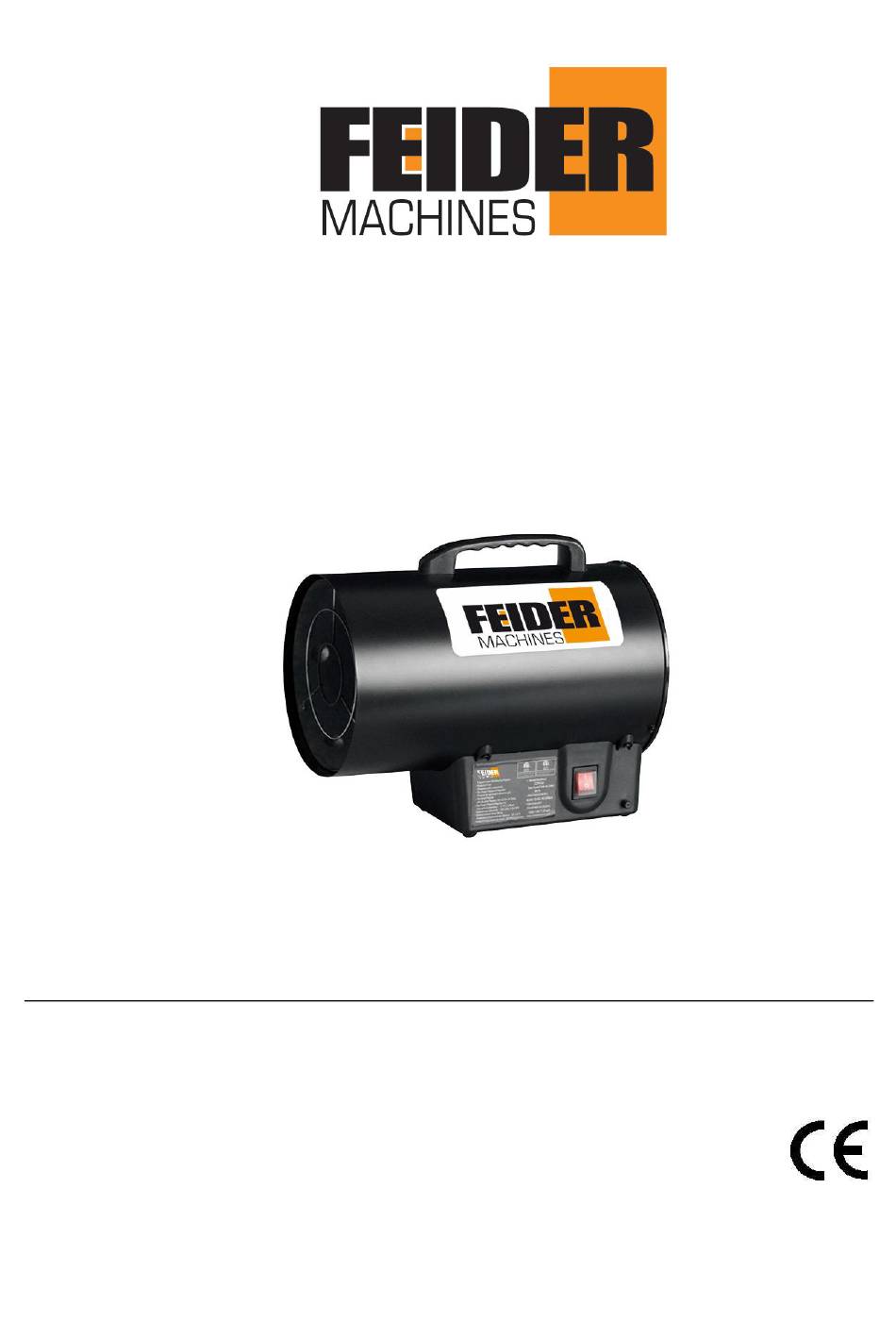

- Page 1 ORIGINAL INSTRUCTION INSTRUCTIONS MANUAL Gas heater 15KW Model: FCD15KW-1 BUILDER SAS ZI – 32, rue Aristide Bergès, 31270 Cugnaux, France IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE ASFE AND EFFECTIVE USE OF THIS PRODUCT...
-
Page 2: Table Of Contents
Fuel gases/Ventilation...............................5 Operation and use..............................6-7 Maintenance and storage............................7 Troubleshooting/Disposal............................8 SPECIFICATION Manufacturer policy of continuous improvement determines the right to change specification without notice. Stock No FCD15KW-1 Rated voltage 220-240V~ / 50Hz Motor rated input Protection class IP20 Heating output... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS General Heater safety Warnings e) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can Warning: Read all safety warnings and all get sucked into the in moving parts of the heater instructions. -
Page 4: Additional Safety Instructions
ADDITIONAL SAFETY INSTRUCTIONS - CAUTION 7) Use in environments with permanent presence of people Due to the high surface and exhaust temperature, adults and children must observe clearances to avoid - The gas heaters can only be used in well-ventilated rooms and when the percentage of pollution substances burns or clothing ignition . -
Page 5: Getting To Know Your Gas Heaters
GETTING TO KNOW YOUR GAS HEATER ①On/off switch ②Safety start valve button ③Gas inlet ④Ignition button ⑤Handle ⑥Power cord UNPACKING : After removing the packing material, make sure the product is in perfect condition and that there are no visible damaged parts. If in doubt, do not use the product and contact the dealer from whom it was purchased. -
Page 6: Fuel Gases/Ventilation
FUEL GASES - GUIDELINES OF FUEL GASES: This heater is intended for the use of temporary heating of building under construction, alteration or repairing. There may also be other local standards or regulations governing the use of fuel gases and heating products, of which you can get advice from your relevant local authority. -
Page 7: Operation And Use
OPERATION AND USE - PROPARING FOR OPERATION (Fig.3): - Check the heater thoroughly for damage. Do not use a damaged heater. Be sure the heating area is adequately ventilated, free of moisture and dust, far away from any combustible material. Always put the gas cylinder behind the heater in a stable position. -
Page 8: Maintenance And Storage
OPERATION AND USE - STOP (Fig.6.): - To switch off the heater, always closed the gas cylinder valve first. - Let the motor fan run for at least 2 minutes until the heater has cooled down. - Switch off the motor unplug the power cord. - If the heater will not be used again shortly. -
Page 9: Troubleshooting/Disposal
TROUBLESHOOTING PROBLEM CAUSE REMEDY Fan doesn’t work 1.No electricity 1.Check power supply 2.Blade stalled by hosing 2.Repair/replace housing Piezo will not ignite 1.Ignition cable damage 1.Only by a qualified person 2.Ignition cable disconnected 2.Only by a qualified person 3.Distance between electrode and 3.Adjust distance within 3-8 mm burner is too high No gas... - Page 10 BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declare that the machine designated below: Gas heater 15KW Model: FCD15KW-1 S/N: 20200821150-20200821299 Complies with the provisions of the following European directives: Directive (EU)2016/426 LVD Directive 2014/35 / EU...
- Page 11 WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
- Page 12 PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 13 WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
