- Page 1 PREMIUM TEAR-DOWN TABLE (PTDT-1000) HEAVY DUTY STEEL CONSTRUCTION 1,000 LBS. CAPACITY INSTALLATION INSTRUCTIONS CAUTION BEFORE USE, PLEASE READ ALL SAFETY AND OPERATION INSTRUCTIONS TO PREVENT INJURY OR DAMAGES. PTDT-1000 Mar 2020...

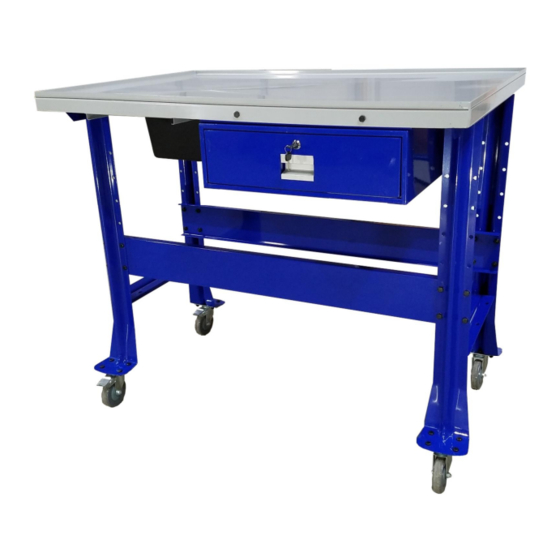

- Page 2 PRODUCT DESCRIPTION The iDEAL PTDT-1000 is a Premium Tear-Down Table designed for a wide range of repair shop applications with a large 46.8" x 31.5" tabletop work area & max weight capacity of 1000 lbs. The Tear-Down Table also features an integrated Table Drain & Catch Basin along with a lockable Storage Drawer.
- Page 3 ASSEBMLY INSTRUCTIONS 1. Remove the Fixed Mounts (A & B) from the Tabletop (2). 2. Remove the Drawer from the Shell (4). 3. Attach the Fixed Mounts (A & B) to the Drawer Shell (4) with Bolts, and then carefully insert Drawer into the Shell.
- Page 4 4. Assemble the Drawer (4) with the Fixed Mounts to Tabletop. 5. Attach the Two Leg Assemblies (1) to the Tabletop’s two Terminals. Then connect the Support Rails (6 & 7) with the bottom four holes on the legs, as shown below. 6.
- Page 5 EXPLODED VIEW PARTS LIST ITEM TUX P/N DESCRIPTION PTDT-1000-001 SWIVEL CASTER PTDT-1000-002 LEG ASSEMBLY PTDT-1000-003 BOLT, M8 X 15MM PTDT-1000-004 HEX NUT, M8 PTDT-1000-005 FLAT WASHER, M8 PTDT-1000-006 TDT PLATFORM TOP PTDT-1000-007 STORAGE DRAWER FRAME PTDT-1000-008 STORAGE DRAWER PTDT-1000-009 PLASTIC CATCH BASIN PTDT-1000-010 LOCKING, SWIVEL CASTER PTDT-1000-011 (PTDT) PANEL BRACKETS...
- Page 6 There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
