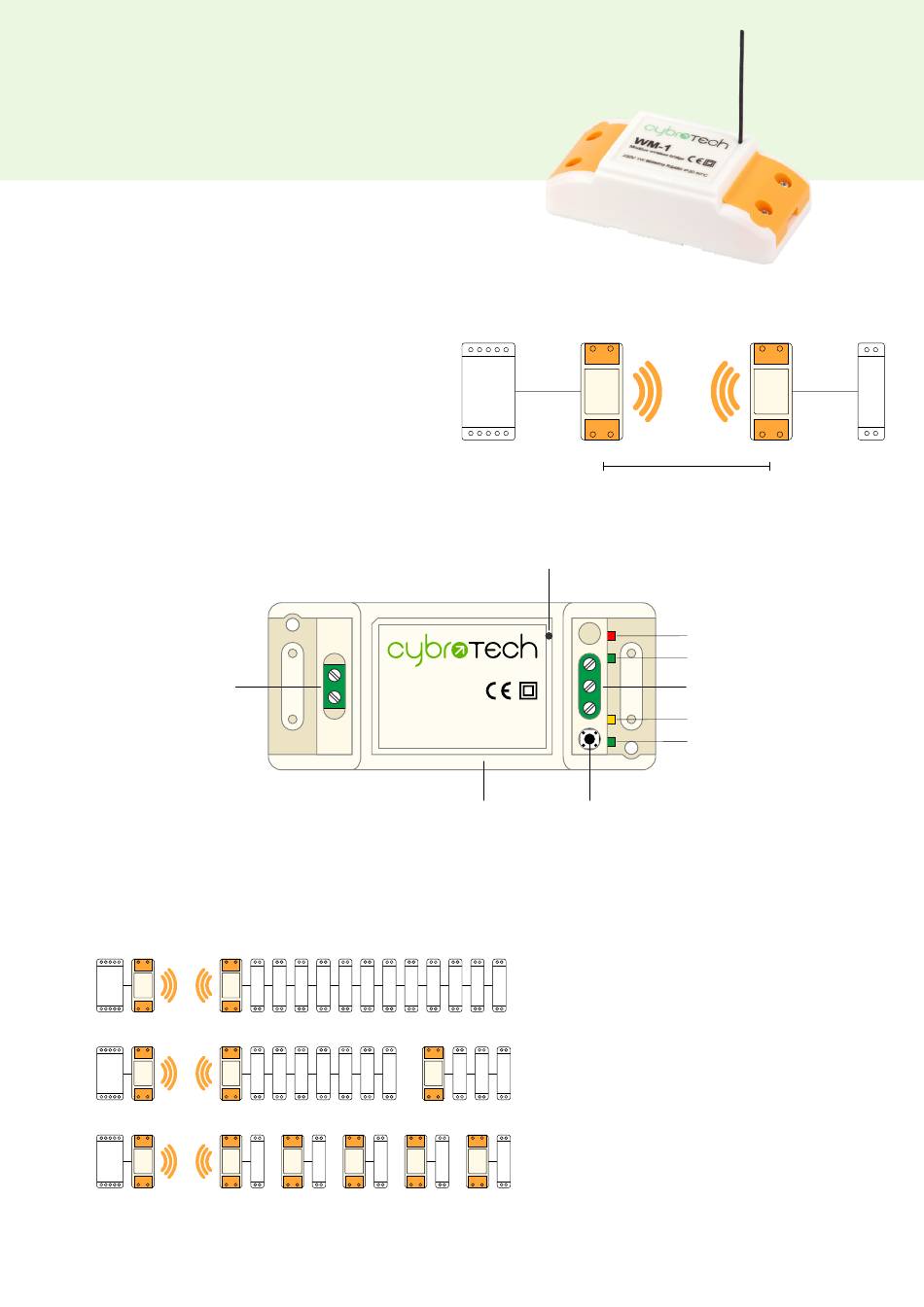

Wireless modbus-to-modbus bridge
Features
• replacement for RS485 wiring
• modbus RTU serial protocol
• wired/wireless combinations
• very long range, no hopping
• protected private connection
• multiple slaves per device
• multiple addressable groups
230V
power
supply
Examples
RS485
Modbus
master
whip antenna
WM-1
Modbus wireless bridge
230V 1W 868MHz RS485 IP20 50°C
configuration
push button
jumpers
(below the cover)
Modbus master, connected to 12 slaves
using a pair of WM-1 devices.
Modbus master, connected to 10 slaves,
organized in two groups.
Modbus master, connected to 5 slaves,
each one has has a local WM-1 device.
RS485
868
MHz
300m
Tx
Rx
C
RS485
B
A
RF
power supply
Modbus
slave
