User's Manual
Kayak Hoist
61447
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Summary of Contents for XPOtool 61447

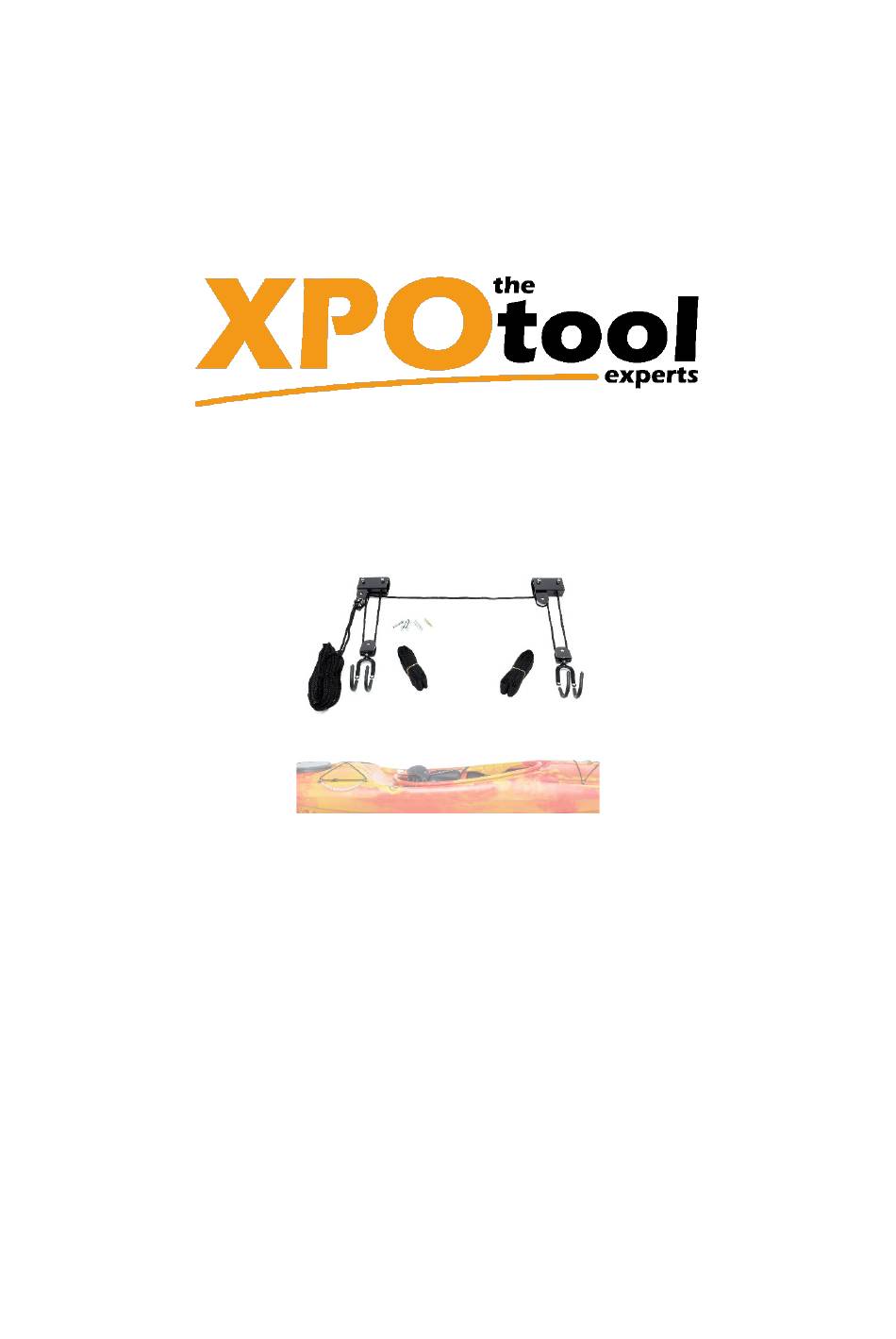

- Page 1 User’s Manual Kayak Hoist 61447 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 61447 Page 2 The Tool Experts 01 2023-1...
- Page 3 Measure the distance A + B from the wall and draw a parallel line. This will be the middle mark for the installation of the hoist. https://www.XPOtool.com Item 61447 Page 3 The Tool Experts...
- Page 4 5×10 cm or 2.5×10 cm are best suitable (see Figg. 2 and 3). The plate should be 12.7 cm longer than the space required for mounting the hoist. Mark the centre of the plate. https://www.XPOtool.com Item 61447 Page 4 The Tool Experts...
- Page 5 Cut the rope to the correct length, thread it through the hole of the hook, and knot the rope for the supports not to slip to the side. Mounting plate https://www.XPOtool.com Item 61447 Page 5 The Tool Experts 01 2023-1...
- Page 6 183–305 cm Rope clip Figure 3 № Name/description Wooden beam Drywall Woodscrew Mounting plate 183–305 cm Rope clip Woodscrew https://www.XPOtool.com Item 61447 Page 6 The Tool Experts 01 2023-1...
- Page 7 Woodscrew ¼″ × 2″ (included) – drilling a pilot hole is rec- ommended. Wooden beam Pilot hole Figure 7 Note! Woodscrews, washers, and the mounting plate are not included in the scope of delivery. https://www.XPOtool.com Item 61447 Page 7 The Tool Experts 01 2023-1...
- Page 8 (just as rope 2). 7. Thread the rope through the lower hook/pulley B, then through the hole of the underside of the bracket at the position C. 8. Make a firm knot. https://www.XPOtool.com Item 61447 Page 8 The Tool Experts 01 2023-1...
- Page 9 When releasing the brake, make sure to be able to lift the weight of the kayak. Wear gloves to protect your hands. — Avoid rapid sliding stops since that can lead to the ropes fraying and the product wearing. https://www.XPOtool.com Item 61447 Page 9 The Tool Experts 01 2023-1...
- Page 10 Use a rope to prevent the straps from sliding apart. Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 61447 Page 10 The Tool Experts 01 2023-1...
