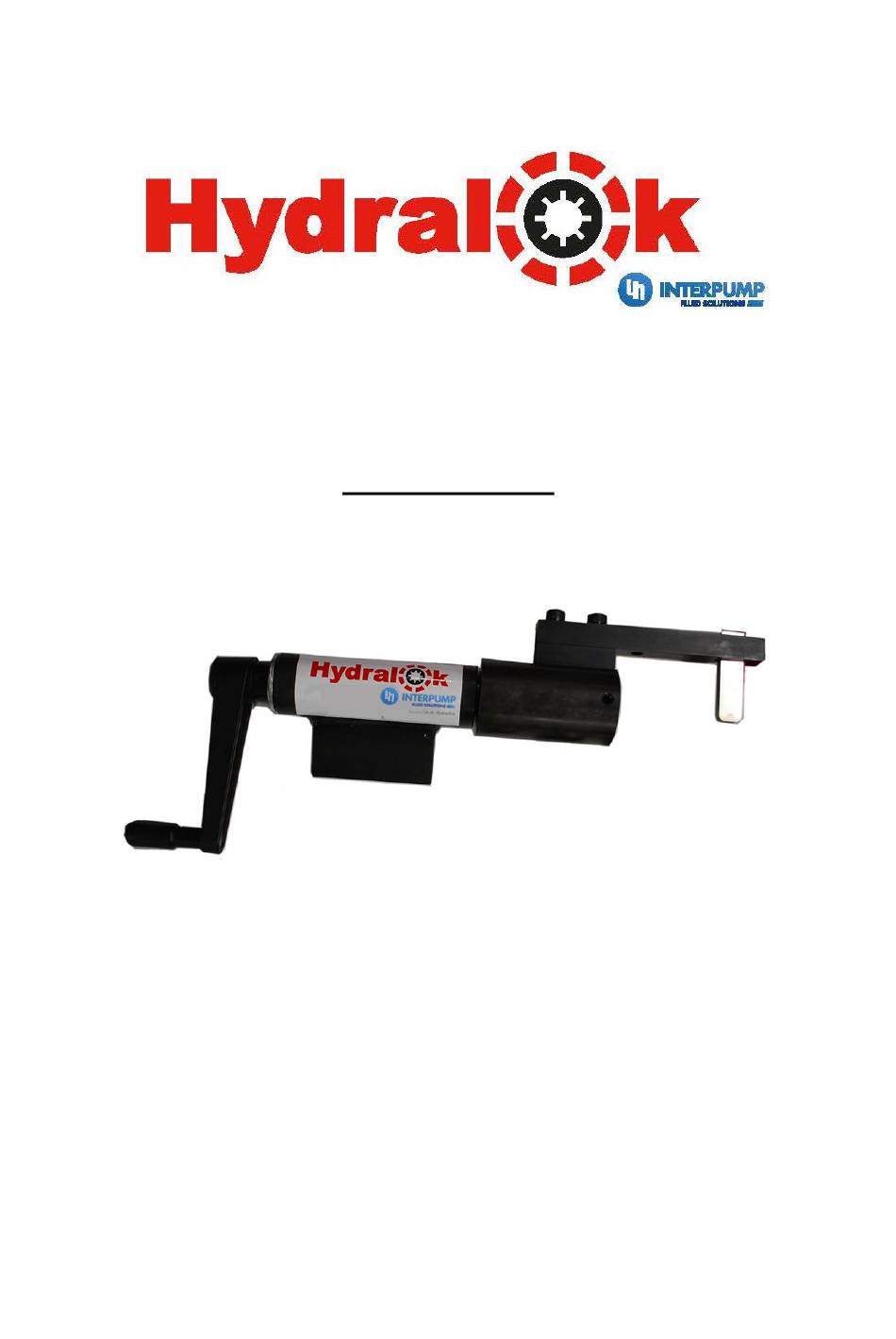

- Page 1 USER MANUAL Hand Skiver...
-
Page 2: Table Of Contents
CONTENTS WARRANTY CONDITIONS ....................3 SAFETY REGULATIONS ....................4 TECHNICAL / DIMENSIONAL DATA .................. 5 HANDLING / TRANSPORT ....................5 PRELIMINARY CHECKS ..................... 5 LIGHTING ..........................5 ROUTINE MAINTENANCE ....................5 DESCRIPTION OF THE MACHINE ..................6 OPERATING INSTRUCTIONS .................... 6 EXTERNAL SKIVING. -
Page 3: Warranty Conditions
WARRANTY CONDITIONS 1. Note that all machines undergo strict testing before shipment. 2. All machines are warranted against any defects for a period of 12 MONTHS starting from the date of delivery to the customer. The company reserves the right to require a copy of the sales invoice. -
Page 4: Safety Regulations
SAFETY REGULATIONS Always work in safe conditions and with the necessary space around the machine. Ensure that the machine is placed on a stable and appropriate working surface. 1. DO NOT USE the equipment before reading the user manual. 2. CAUTION! If improperly used, the equipment may be dangerous and may cause injury. -
Page 5: Technical / Dimensional Data
TECHNICAL / DIMENSIONAL DATA TECHNICAL / DIMENSIONAL DATA 1/4” - 2” External skiving capacity 5/8” - 2” Internal skiving capacity Blade material Dimensions [mm] 520x65x220 Net weight [kg] HANDLING / TRANSPORT The machine will be shipped inside a cardboard box, wrapped in film and protections. PRELIMINARY CHECKS To operate the Hand Skiver, the unit must be held in a vice. -
Page 6: Description Of The Machine
DESCRIPTION OF THE MACHINE Internal/external skiving capacity of hoses up to 2”. OPERATING INSTRUCTIONS To operate the Hand Skiver, the unit must be held in a vice. EXTERNAL SKIVING Position the Tool Post in the forward position for large hoses and the rear position for smaller hose sizes. -
Page 8: Internal Skiving
INTERNAL SKIVING Remove the tool post and external mandrel from the head unit. Select the correct internal skive tool to suit the hose size. Fit the internal skive tool into the head unit. Place the hose onto the mandrel and hold lightly against the tool. Adjust the tool using the jacking screw until it is inline with the inside of the wire spirals visible at the end of the hose and clamp the tool in position. -
Page 9: Spare Parts
SPARE PARTS External Skiving REPLACEMENT CUTTING TOOLS TOOL PART NO. HSS Blade HS10015 REPLACEMENT MANDRELS MANDREL SIZE Ø MANDREL 1/4” HS1-PE04 3/8” HS1-PE06 1/2” HS1-PE08 5/8” HS1-PE10 3/4” HS1-PE12 1” HS1-PE16 1 ¼” HS1-PE20 1 ½” HS1-PE24 2” HS1-PE32 Internal Skiving MANDREL SIZE Ø...
