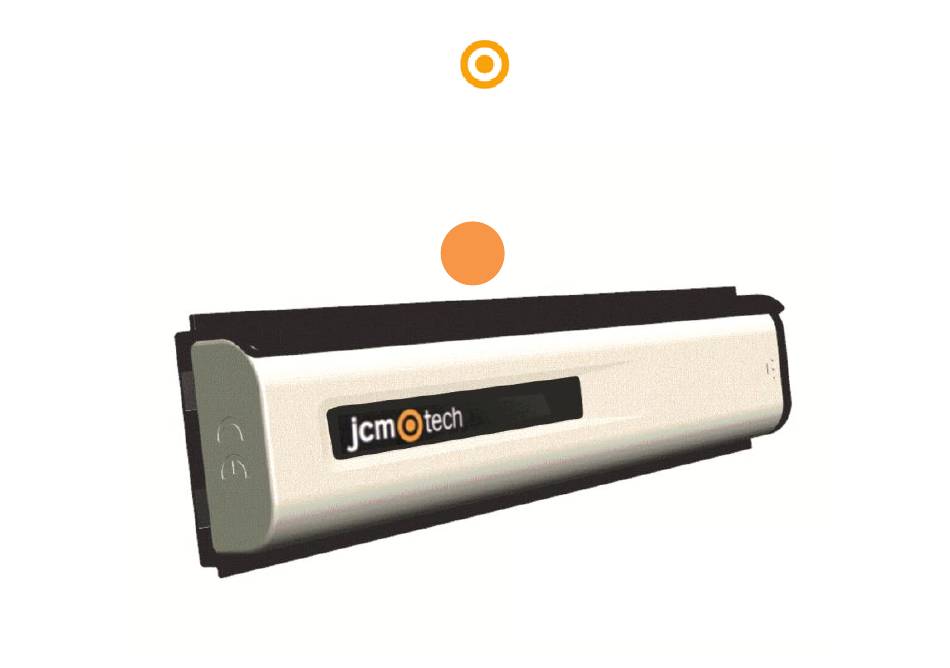

- Page 1 RS3 TGL868NF RadioSens 3 System User manual ADIO...
-
Page 2: Table Of Contents
RS3 SYSTEM IMPORTANT SAFETY INSTRUCTIONS Introduction 1.1 General description Installation 2.1 Mechanical installation Operation Programming 4.1 Memorizing transmitter into receiver 4.2 System programming Checking and maintenance 5.1 Troubleshooting 5.2 Replacing transmitter battery 5.3 Use of the system Technical Data Summary 6.1 Technical data 6.2 Battery life table EU Declaration of conformity... -
Page 3: Important Safety Instructions
RS3 SYSTEM IMPORTANT SAFETY INSTRUCTIONS Disconnect power supply whenever you proceed any installation or repair of the equipment. In accordance with the European low voltage directive, the following requirements are informed: · For permanently connected equipments, an easy-access connection device must be provided. ·... -
Page 4: Introduction
RS3 SYSTEM 1. Introduction 1.1 General description RadioSens3 system is designed for Fast doors and Flat-slat rolling shutters in an Industrial, Commercial or Residential environment. RadioSens3 is an impact detection system installed at the principal edge of the door. It works detecting any obstacle before the strength exceeds regulations limits and then inverting door movement. - Page 5 RS3 SYSTEM Typical installation shown in the figure below. A RadioSens3 transmitter set at the last slat of a roller door aluminium and connected via radio to RSEC3 receiver with a VERSUS control panel. RSEC3 jcmtechnologies...
- Page 6 RS3 SYSTEM Options and sensibility selectors must be set before programming. Any later change will have no effect. jcmtechnologies...
-
Page 7: Installation
RS3 SYSTEM 2. Installation 2.1 Mechanical installation Install the transmitter following the steps and recommendations below. Pass the cables through the holes indicated (only if you use the lock connection). Install the transmitter in a horizontal position, at the middle of the last slat (it must have a tolerance of minimum 2mm of movement). - Page 8 RS3 SYSTEM Install the transmitter in horizontal position, at the middle of the last slat. Avoid placing metallic surfaces between the receiver and the transmitter. First, place the visor on the surface of the door to use it as template to make the holes in the door.
- Page 9 RS3 SYSTEM The slat where the RS3 is fixed should stay in a perfect vertical position while the shutter is on the opened position. The settings of the upper limit switch of the motor should not allow the RS3 to go inside aluminium where the shutter is rolled...
-
Page 10: Operation
RS3 SYSTEM 3. Operation D1 and D2 LEDs of the transmitter will pass to battery saving mode (off) in 25 maneuvers after pressing PROG on the transmitter. They can re-awaken again pressing the PROG button on the transmitter. In order to detect obstacles, the RadioSens3 system compares the behaviour of the door in each maneuver with a previously learned one when installing the equipment. -
Page 11: Programming
RS3 SYSTEM 4. Programming 4.1 Memorizing transmitter into receiver Receiver only keeps one RadioSens3 transmitter in memory at the same time. This is stored always as security on closing. PRESS PROG PUSHBUTTON LED TURNS ON PRESS TRANSMITTER PROG ONE BEEP AND PROGRAMMED PRESS PROG PUSHBUTTON LED TURNS OFF AND END PROG jcmtechnologies... -
Page 12: System Programming
RS3 SYSTEM 4.2 System programming After storage of the transmitter, perform the programming of the control panel with the security element stored. See programming section on control panel user’s manual. If you change the position of RadioSens3 transmitter, you must perform the system programming again, otherwise the transmitter will indicate a safety error, and the door will not work properly. -
Page 13: Checking And Maintenance
RS3 SYSTEM 5. Checking and maintenance 5.1 Troubleshooting Equipment D1 red Check Beeps Message / error Solution green Flash at Control panel asks RS3 correct signal transmitter beginning transmitter to start the manoeuvre opening Flash at Indicates calibration failure Reprogram the manoeuvre until transmitter beginning transmitter in open door status... -
Page 14: Replacing Transmitter Battery
RS3 SYSTEM Equipment Check Beeps Message / error Solution green RSEC3 4 beeps every 20 RS3 transmitter low battery Verify the batteries of the seconds transmitter RSEC3 4 beeps every 20 Communication failure between Verify the radio signal with the seconds RSEC3 and RS3 transmitter. -
Page 15: Technical Data Summary
RS3 SYSTEM 6. Technical Data Summary 6.1 Technical data Frequency Multifrequency system, auto- adjustable 868 MHz Standby / Operating consumption 0,1 mA / 12 mA Radiated power <1 mW Range (in open field) 50 m Operating temperature -20ºC to +55ºC Watertighness IP22 Reaction time (typical) -
Page 16: Eu Declaration Of Conformity
RS3 SYSTEM 7. EU Declaration of conformity JCM TECHNOLOGIES, S.A. hereby declares that the product RS3 TGL868NF complies with the relevant fundamental requirements of the RED Directive 2014/53/EU, as well as with the Machine Directive 2006/42/EC whenever its usage is foreseen; and with the 2011/65/EU RoHS Directive.
