Summary of Contents for Spraying Systems TeeJet RX375P

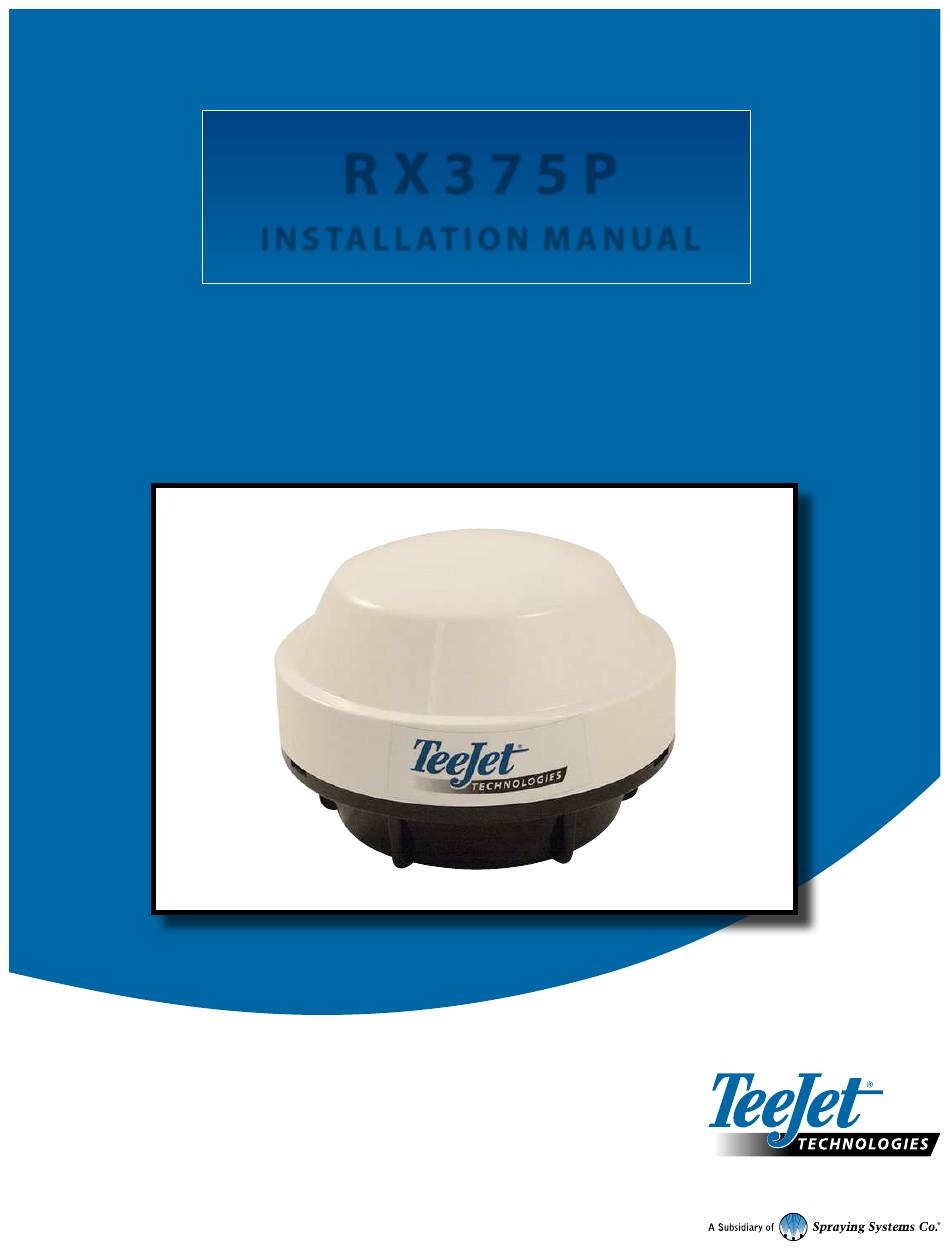

- Page 1 R X 3 7 5 p I n s ta l l at I o n M a n U a l...
- Page 2 Copyrights © 2013 TeeJet Technologies. All rights reserved. No part of this document or the computer programs described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies.
-
Page 3: Table Of Contents
RX375P Table of Contents ChapteR 1 IntRoDUCtIon featURes LED ........................................2 Radar-Simulated Pulse Output ..............................2 CAN .......................................2 ChapteR 2 InstallatIon pRepaRatIon CoMponents Cables Cable Interface ....................................4 Extension Power/Data Cable .................................4 RX375P Placement ....................................... 5 Routing and Securing the Cables ..............................5 MoUntIng optIons Magnetic Mount .....................................5 Surface Mount ....................................5 Pole Mount .....................................5... -
Page 4: Chapter 1 Introduction
RX375P ChapteR 1 IntRoDUCtIon The RX375P is a smart antenna that tracks GPS and SBAS (WAAS, EGNOS, and MSAS) signals. The RX375P provides sub-meter performance with 2.0 ft (60 cm) accuracy 95% of the time. It utilizes COAST technology during differential outages. The RX375P is also capable of using ®... -
Page 5: Components
RX375P CoMponents Unpack the installation kit and identify the required parts for your installation. Item Part Number Description Quantity 78-50203 Receiver, RX375P, SBAS ..............................1 Magnet Mount Adapter, RX375P .............................1 Magnet, RX375P................................1 45-05496 Cable, RX370P DB9, Speed, Power..........................1 45-05495 Cable, RX370P Speed Only ............................1 45-05338 Cable, GPS Data w/12 position Deutsch .........................1 45-05340... -
Page 6: Cables
RX375P Item Part # Description Illustration NMEA Data 45-05340 Cable, Deutsch to DB9 Power Power 45-05350 Cable, Com 1 & 2 with Power In Port A 45-05350 4800 GGA 5Hz DC: xx/xx VTG 1Hz Port B 19200 GGA 5Hz VTG 1Hz * Depends on which cable was ordered with the receiver Cables The following figure provides a front view of the Deutsch connector... -
Page 7: Rx375P Placement
RX375P MoUntIng RX375p placement Mounting options Placement of the RX375P is crucial to the system’s operation. The The RX375P can be mounted in several ways: Magnetic Mount, GPS engine inside the RX375P computes a position based upon Surface Mount or Pole Mount. measurements from each satellite to the internal GPS antenna unit. -
Page 8: Powering The Rx375P
RX375P poweRIng the RX375p eXteRnal DeVICe ConneCtIons Connect the RX375P to a TeeJet Technologies guidance system or The serial ports of the RX375P operate at the RS-232C interface level a 12 volt DC source with a power connector. Refer to Appendix D to communicate with external data loggers, navigation systems, and for illustrations. -
Page 9: Environmental Considerations
RX375P Table 5: Serial Port Settings ChapteR 3 gps oVeRVIew For operator convenience, both the GPS and differential correction of Interface the RX375P are pre-configured. The receiver will work out of the box, Serial Port Baud Rate Data Bits Parity Stop Bits Level and for most applications, little user setup is required. -
Page 10: Differential Operation
RX375P appenDIX a - tRoUbleshootIng DIffeRentIal opeRatIon The following table provides a checklist to troubleshoot common The Radio Technical Commission of Marine services (RTCM) has a problems and their solutions for the RX375P. differential service intended for correction services. This includes the Space Based Augmentation Systems (SBAS), such as the Wide Area Table 7: Troubleshooting Augmentation System (WAAS) and the European Geo-stationary... -
Page 11: Appendix B - Specifications
RX375P Table 11: Environmental Specifications appenDIX b - speCIfICatIons Specification The following tables provide the power, mechanical, communication, Item environmental and DGPS specifications for the RX375P. Operating Temperature -40° C to +70° C (-40° F to +158° F) Table 8: Power Specifications Storage Temperature -40°... -
Page 12: Appendix C - Surface Mount Template
RX375P appenDIX C - sURfaCe MoUnt teMplate The following templates should be used to plan for the location of the mounting holes when surface mounting the RX375P. Use to mark holes from INSIDE the cab WARNING! Print this page at 100% Use to mark holes from OUTSIDE the cab www.teejet.com... -
Page 13: Appendix D - Illustrations
RX375P appenDIX D - IllUstRatIons Table 14: CenterLine with SmartPad II with RX375P System Configuration SmartPad II CenterLine Lightbar 75-30005 78-50111 RX375p Receiver 78-50203 SmartPad II/CL Lightbar Cable 45-05427 Cable, Power 45-05324 Receicer 45-05337 Cable, GPS Data 45-05338 5 Amp Status Detect IGN Sense Power In... - Page 14 RX375P Figure 4: Standard CenterLine System Configuration with RX375P CenterLine Lightbar 78-50111 RX375p Receiver 78-50203 CL Wireless Remote 78-50107 Cable, Power Cable, GPS Data 45-05324 45-05338 5 Amp Status Detect IGN Sense Power In +12 v 78-00027 Switchbox Ignition On/Off 78-00027 (Optional) Cable, 2 Position Battery...
- Page 15 RX375P Figure 5: FieldPilot Assisted Steering with RX375P System Configuration Legacy 6000 Console 75-05007 Lightbar 78-50140 Legacy 6000 Harness 45-07000 CAN Term. Male 45-08101 CAN Extension Cable 6’/1.8m 45-08106 CAN Term. 45-08106 Female 45-08102 SCM COM 2 Remote Engage/Disengage RX375P 78-50203 GPS In COM 1...
- Page 16 R X 3 7 5 p I n s t a l l a t I o n M a n U a l The RX375P is a smart antenna that tracks GPS and SBAS (WAAS and EGNOS) signals. The RX375P provides sub-meter performance with 2.0 ft (60 cm) accuracy 95% of the time.
