Summary of Contents for jcm-tech WAVE500
- Page 1 WAVE WAVE500 / WAVE500-B User Manual...
-
Page 2: Table Of Contents
Table of contents Important safety instructions Use of the receiver Technical characteristics WAVE500 WAVE500-B Installation and connections Operating Programming Manual programming Total reset Notes Regulatory Data UKCA Declaration of conformity EU Declaration of conformity jcmtechnologies... -
Page 3: Important Safety Instructions

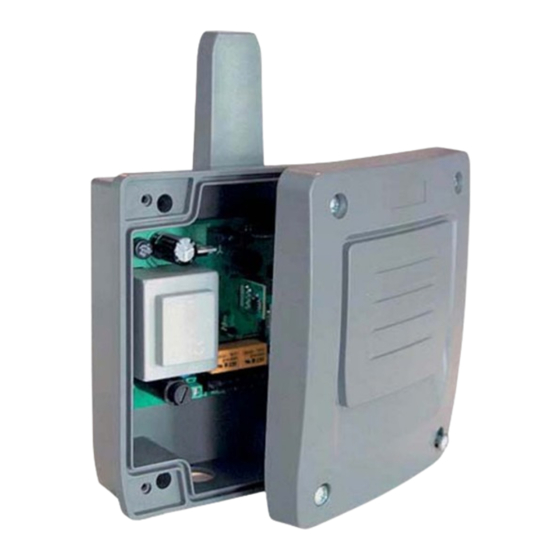

These receivers are designed for use as remote controls for garage doors. Their use is not guaranteed for directly activating any other equipment different to that specified. The manufacturer reserves the right to modify equipment specifications without prior notice. Technical characteristics WAVE500 WAVE500-B Frequency 868,35MHz... -
Page 4: Wave500
WAVE500 WAVE500-B jcmtechnologies... -
Page 5: Installation And Connections
Installation and connections Attach the rear part of the housing to the wall using the plugs and screws supplied. Pass the cables through the bottom of the receiver. Connect the power cables to the terminals marked in the mother board, as indicated. Fix the receiver front to the rear part using the screws supplied. -
Page 6: Total Reset
Total reset In programming mode, the programming button is held down and the “MR” reset jumper is bridged for 3 secs. The receiver will issue 10 short acoustic warning signals followed by others at a faster pace to indicate that the operation has been suc- cessful. -
Page 7: Notes
Notes jcmtechnologies... -
Page 8: Regulatory Data
Regulatory Data UKCA Declaration of conformity The manufacturer JCM TECHNOLOGIES, SAU declares that the product WAVE500 and WAVE500-B complies with the rel- evant fundamental requirements of the Radio Equipment Regulations 2017 and of the RoHS Regulations 2012. EU Declaration of conformity The manufacturer JCM TECHNOLOGIES, SAU declares that the product WAVE500 and WAVE500-B complies with the rel- evant fundamental requirements of the RED Directive 2014/53/EU and of the RoHS Directive 2011/65/EU.
