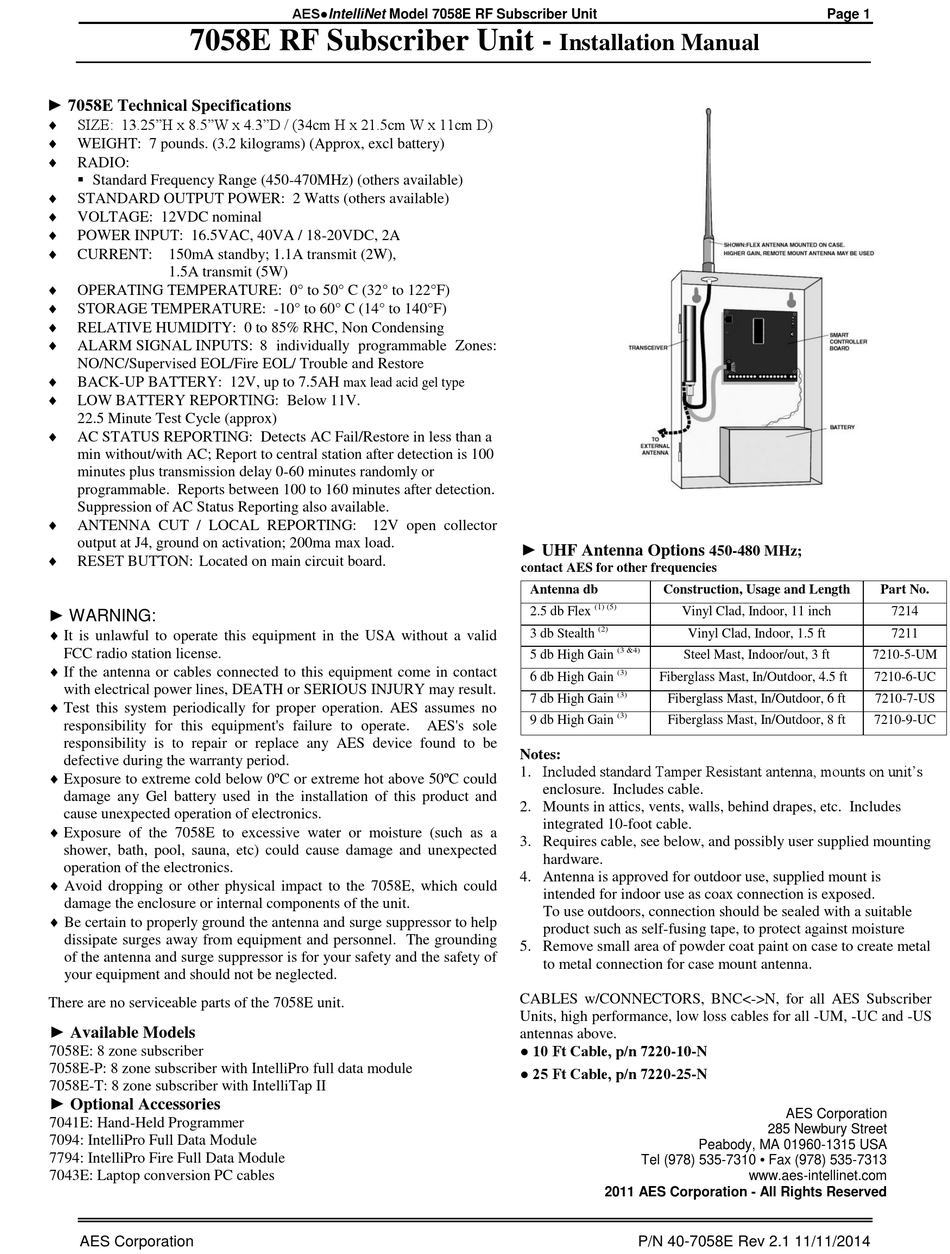

AES 7058E Installation Manual

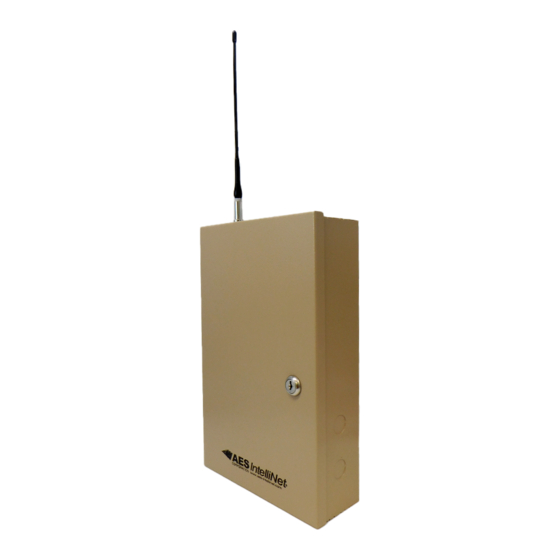

7058E RF Subscriber Unit -
► 7058E Technical Specifications

SIZE: 13.25"H x 8.5"W x 4.3"D / (34cm H x 21.5cm W x 11cm D)

WEIGHT: 7 pounds. (3.2 kilograms) (Approx, excl battery)

RADIO:
 Standard Frequency Range (450-470MHz) (others available)

STANDARD OUTPUT POWER: 2 Watts (others available)

VOLTAGE: 12VDC nominal

POWER INPUT: 16.5VAC, 40VA / 18-20VDC, 2A

CURRENT: 150mA standby; 1.1A transmit (2W),
1.5A transmit (5W)

OPERATING TEMPERATURE: 0° to 50° C (32° to 122°F)

STORAGE TEMPERATURE: -10° to 60° C (14° to 140°F)

RELATIVE HUMIDITY: 0 to 85% RHC, Non Condensing

ALARM SIGNAL INPUTS: 8 individually programmable Zones:
NO/NC/Supervised EOL/Fire EOL/ Trouble and Restore

BACK-UP BATTERY: 12V, up to 7.5AH

LOW BATTERY REPORTING: Below 11V.
22.5 Minute Test Cycle (approx)

AC STATUS REPORTING: Detects AC Fail/Restore in less than a
min without/with AC; Report to central station after detection is 100
minutes plus transmission delay 0-60 minutes randomly or
programmable. Reports between 100 to 160 minutes after detection.
Suppression of AC Status Reporting also available.

ANTENNA CUT / LOCAL REPORTING: 12V open collector
output at J4, ground on activation; 200ma max load.

RESET BUTTON: Located on main circuit board.
► WARNING:
 It is unlawful to operate this equipment in the USA without a valid
FCC radio station license.
 If the antenna or cables connected to this equipment come in contact
with electrical power lines, DEATH or SERIOUS INJURY may result.
 Test this system periodically for proper operation. AES assumes no
responsibility for this equipment's failure to operate.
responsibility is to repair or replace any AES device found to be
defective during the warranty period.
 Exposure to extreme cold below 0ºC or extreme hot above 50ºC could
damage any Gel battery used in the installation of this product and
cause unexpected operation of electronics.
 Exposure of the 7058E to excessive water or moisture (such as a
shower, bath, pool, sauna, etc) could cause damage and unexpected
operation of the electronics.
 Avoid dropping or other physical impact to the 7058E, which could
damage the enclosure or internal components of the unit.
 Be certain to properly ground the antenna and surge suppressor to help
dissipate surges away from equipment and personnel. The grounding
of the antenna and surge suppressor is for your safety and the safety of
your equipment and should not be neglected.
There are no serviceable parts of the 7058E unit.
► Available Models
7058E: 8 zone subscriber
7058E-P: 8 zone subscriber with IntelliPro full data module
7058E-T: 8 zone subscriber with IntelliTap II
► Optional Accessories
7041E: Hand-Held Programmer
7094: IntelliPro Full Data Module
7794: IntelliPro Fire Full Data Module
7043E: Laptop conversion PC cables
AES Corporation
AES●IntelliNet Model 7058E RF Subscriber Unit
max lead acid gel type
AES's sole
Installation Manual
► UHF Antenna Options
contact AES for other frequencies
Antenna db Construction, Usage and Length
(1) (5)
2.5 db Flex Vinyl Clad, Indoor, 11 inch
(2)
3 db Stealth Vinyl Clad, Indoor, 1.5 ft
(3 &4)
5 db High Gain Steel Mast, Indoor/out, 3 ft
(3)
6 db High Gain Fiberglass Mast, In/Outdoor, 4.5 ft
(3)
7 db High Gain Fiberglass Mast, In/Outdoor, 6 ft
(3)
9 db High Gain Fiberglass Mast, In/Outdoor, 8 ft
Notes:
1. Included standard Tamper Resistant antenna, mounts on unit's
enclosure. Includes cable.
2. Mounts in attics, vents, walls, behind drapes, etc. Includes
integrated 10-foot cable.
3. Requires cable, see below, and possibly user supplied mounting
hardware.
4. Antenna is approved for outdoor use, supplied mount is
intended for indoor use as coax connection is exposed.
To use outdoors, connection should be sealed with a suitable
product such as self-fusing tape, to protect against moisture
5. Remove small area of powder coat paint on case to create metal
to metal connection for case mount antenna.
CABLES w/CONNECTORS, BNC<->N, for all AES Subscriber
Units, high performance, low loss cables for all -UM, -UC and -US
antennas above.
● 10 Ft Cable, p/n 7220-10-N
● 25 Ft Cable, p/n 7220-25-N
(Avoid using 25 ft. length if a 10 ft. will be sufficient.)
Peabody, MA 01960-1315 USA
Tel (978) 535-7310 • Fax (978) 535-7313
2011 AES Corporation - All Rights Reserved
P/N 40-7058E Rev 2.1 11/11/2014
Page 1
450-480 MHz;
Part No.
7210-5-UM
7210-6-UC
7210-7-US
7210-9-UC
AES Corporation
285 Newbury Street
www.aes-intellinet.com
7214
7211
