USER MANUAL
EVOLVE2
65
FLEX
Technology for life's new rhythm

Advertisement

Table of Contents
loading

Related Manuals for Jabra EVOLVE2 65 FLEX

Summary of Contents for Jabra EVOLVE2 65 FLEX

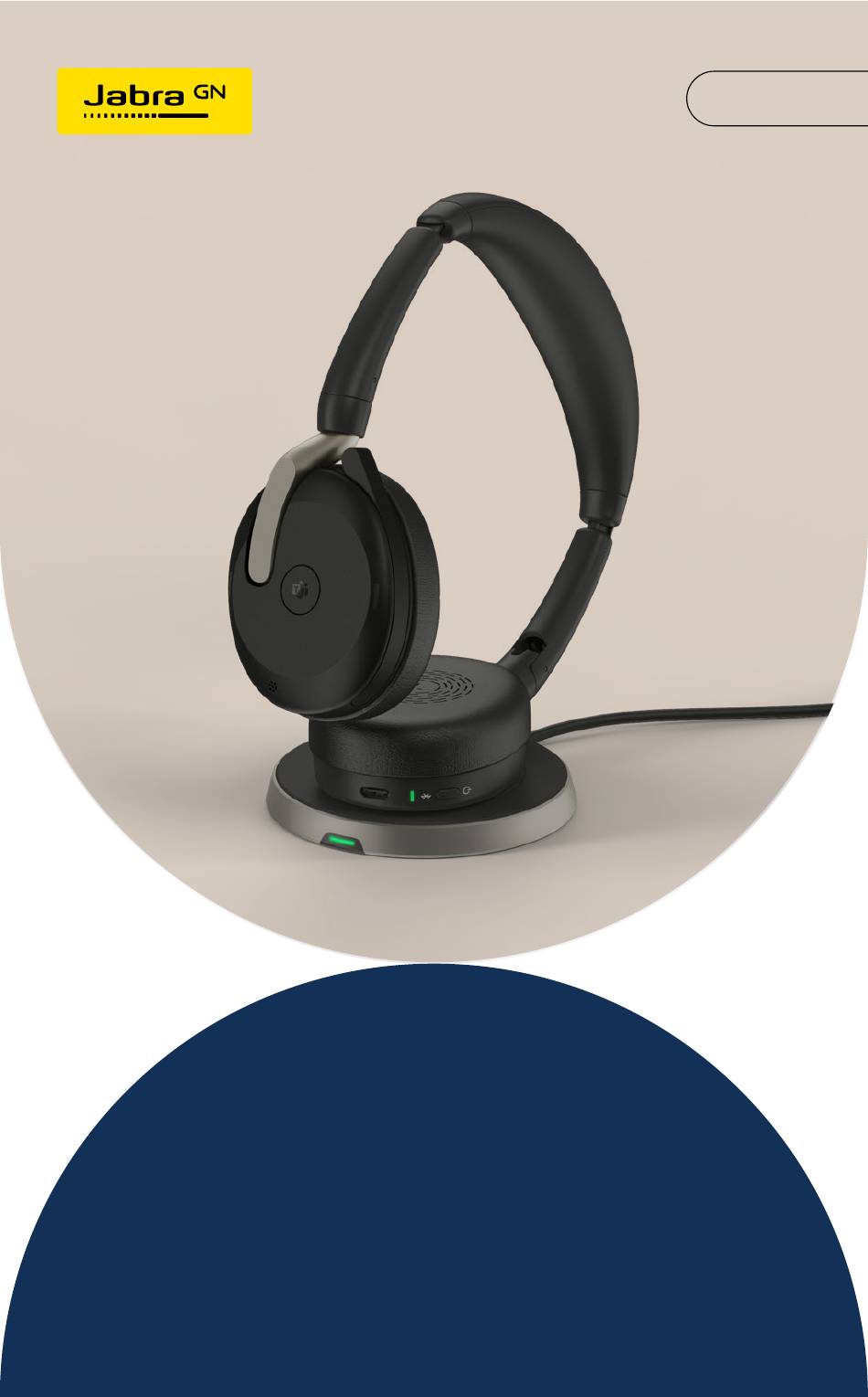

  • Page 1 USER MANUAL EVOLVE2 FLEX Technology for life’s new rhythm...
  • Page 2 A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.
  • Page 3 ® © 2023 GN Audio A /S. All rights reserved. Jabra is a ® trademark of GN Audio A/S. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license.
  • Page 4 1. Welcome .........6 2. Jabra Evolve2 65 Flex overview 7 2.1 Included accessories 2.2 Optional accessories 3. How to wear ........ 10 3.1 Adjusting the headset 3.2 Positioning the microphone boom arm 4. How to charge ......12 4.1 Charge using the wireless charging pad (optional accessory) 4.2 Charge using USB charging cable...
  • Page 5 7.10 Multiuse 7.11 Multiple call handling 7.12 Audio notifications 7.13 How to reset 8. Software and firmware .... 38 8.1 Jabra Sound+ 8.2 Jabra Direct 8.3 Update firmware 9. Support ........40 9.1 FAQ 9.2 How to care for your headset...
  • Page 6 • Jabra AirComfortTM technology • Certified for leading virtual meeting platforms • Easy to customize, manage and deploy* • Hideaway boom arm • Wireless range of up to 30m/100ft * via free to download Jabra Direct management software (desktop) or Sound+ app (smartphone)
  • Page 7 2. Jabra Evolve2 65 Flex overview Left Right Cycle between ANC/HearThrough Mute microphone Busylight & Voice assistant Microsoft Teams status LED Answer/end call Microsoft Teams Wireless control* charging zone Power on/off (2 sec) Bluetooth pairing (4 sec) Volume up Next track (hold)

  • Page 8: Included Accessories

    2.1 Included accessories USB-A version Jabra Link 380 USB-A USB-A to USB-C Bluetooth adapter cable USB-C version Jabra Link 380 USB-C USB-C to USB-C Bluetooth adapter cable Carry pouch...

  • Page 9: Optional Accessories

    2.2 Optional accessories Wireless charging pad Replacement ear cushions...

  • Page 10: How To Wear

    3. How to wear 3.1 Adjusting the headset Adjust the headband so that the headset fits your head comfortably.
  • Page 11 3.2 Positioning the microphone boom arm Pull the microphone boom arm down or up in one smooth motion. When using the microphone, the tip of the boom arm should be positioned close to your mouth.

  • Page 12: How To Charge

    4. How to charge The headset can be charged using the wireless charging pad, or via a USB charging cable plugged directly into the headset. It takes approx. 2 hours to fully charge the battery. The headset battery life is up to 32 hours.
  • Page 13 4.1 Charge using the wireless charging pad (optional accessory) Connect the wireless charging pad to a powered USB port on your computer using the supplied USB charging cable, and then place the left earcup on the wireless charging pad. The wireless charging pad is for charging only. Powered USB port...
  • Page 14 The LED on the wireless charging pad will light up to indicate the left earcup has been correctly placed on the wireless charging pad and headset the battery is charging. The status LED on the headset will then briefly flash green, yellow or red to indicate the current battery charging status.
  • Page 15 Plug the USB charging cable into the USB-C charging port on the left earcup and any available USB port on your computer. It is recommended to charge the headset using the supplied Jabra charging cable, however it is possible to use a compatible charger.

  • Page 16: Power-Saving Modes

    To exit sleep mode, simply press any button. The length of time before the headset enters sleep mode can be adjusted using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer. After 24 hours of sleep mode, the headset will power down completely.

  • Page 17: What The Leds Mean

    5. What the LEDs mean Busylight LED Busylight/Microsoft Teams LED BUSYLIGHT/ MICROSOFT * LED Busylight Incoming call (slow flash) Headset is trying to connect to Microsoft Teams. Will time out after 10 seconds* (fast flash) Microsoft Teams notification* Headset placed on wireless charging pad STATUS LED Power on/Battery full...
  • Page 18 JABRA LINK 380 LED Microphone muted Plugged into computer and signed into Microsoft Teams* (slow flash) Headset is trying to connect to Microsoft Teams. Will time out after 10 seconds* (fast flash) Microsoft Teams notification* Bluetooth connection Streaming music/media Incoming call/Active call...

  • Page 19: How To Connect

    To hear audio in the headset you may need to select the Jabra Link 380 as the playback device in your operating system’s audio settings. To manually pair the Jabra Evolve2 65 Flex with the Jabra Link 380, download and use Jabra Direct.
  • Page 20 4 sec 2. Go to the Bluetooth menu on your smartphone and select the Jabra Evolve2 65 Flex from the list of available devices. When pairing with an Android device that has Google Fast Pair enabled, simply put the...

  • Page 21: How To Use

    7. How to use Left Right Sound modes button Voice button Call button Microsoft Teams button* Power button Volume up button Play/pause button Volume down button *requires Microsoft Teams headset variant...
  • Page 22 7.1 Power the headset on/off Press the Power button for 2 seconds to power the headset on or off. 2 sec...
  • Page 23 7.2 Calls & music Right earcup Calls & music Play/pause Press the Play/pause music button Press the Call button Alternatively, move Answer call the microphone boom arm down to answer an incoming call End call Press the Call button Double-press the Reject call Call button...
  • Page 24 Press the Volume up or Volume down button, Adjust volume when listening to music or on a call Press and hold (1 sec) Next track the Volume up button Press and hold (1 sec) the Volume down button to restart the Restart track current track Press and hold twice to...
  • Page 25 Activate Voice Assistant (i.e. Press the Voice button, Siri, Google when not on a call Assistant, Amazon Alexa) Press the Voice button, when on a call Mute/unmute Alternatively, move the microphone microphone boom arm up to mute, or down to unmute Bring Microsoft Press the Microsoft...
  • Page 26 HearThrough Press and hold (1 sec) Turn off Sound the Sound modes modes button 7.3 On-head detection The Jabra Evolve2 65 Flex has sensors that detect when the headset is lying flat on a table or is being worn.
  • Page 27 The Microsoft Teams status LED will only indicate Microsoft notifications when the headset is not being worn. On-head detection can be configured using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer. *requires Microsoft Teams headset variant...

  • Page 28: Voice Assistant

    7.4 Voice Assistant The Jabra Evolve2 65 Flex enables you to speak to Siri, Google Assistant or Amazon Alexa on your smartphone using the Voice button. Right earcup Voice Assistant Activate Voice Assistant Press the Voice (Siri, Google button, when not...
  • Page 29 To manually switch the Busylights on/off, press the Volume up and Volume down buttons at the same time. Busylight settings can be configured using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer.
  • Page 30 ANC and modes button HearThrough Press and hold (1 sec) Turn off Sound the Sound modes Modes button The level of Active Noise Cancellation can be configured using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer.
  • Page 31 Cycle between Press the Sound ANC and modes button HearThrough Press and hold (1 sec) Turn off Sound the Sound modes Modes button The level of HearThrough can be configured using Jabra Sound+ your smartphone or Jabra Direct on your computer.
  • Page 32 The headset microphone can be muted by moving the microphone boom arm up, or unmuted by moving it down. Mute microphone zone Unmute microphone zone This feature is on by default, and can be disabled using Jabra Sound+ your smartphone or Jabra Direct on your computer.
  • Page 33 An incoming call can be answered by moving the microphone boom arm down. Answer call zone This feature is on by default, and can be disabled using Jabra Sound+ your smartphone or Jabra Direct on your computer.
  • Page 34 7.10 Multiuse The headset can pair with up to eight Bluetooth devices and connect to two Bluetooth devices at once (e.g. the Jabra Link 380 and a Smartphone, or two Bluetooth devices). The headset can accept multiple incoming calls from either device.

  • Page 35: Multiple Call Handling

    7.11 Multiple call handling The headset can accept and handle multiple calls at the same time. Right Multiple call handling earcup End current Press the Call call and answer button incoming call Put current call on Hold (2 secs) the hold and answer Call button* incoming call Switch between...
  • Page 36 Audio notifications can be configured using the Jabra Sound+ app on your smartphone or Jabra Direct on your computer. For the latest list of supported languages, refer to the Jabra Sound+ app or Jabra Direct.

  • Page 37: How To Reset

    LED lights up Reset pairing pink and you hear an list and announcement in the settings headset You will need to re-pair the headset with the Jabra Link 380 using Jabra Direct, or with your Smartphone (see section 6.2)

  • Page 38: Software And Firmware

    8. Software and firmware 8.1 Jabra Sound+ Jabra Sound+ is a mobile application that allows you to configure the Jabra Evolve2 65 Flex based on your needs. 8.2 Jabra Direct Jabra Direct desktop application designed to support, manage enable optimal functionality for Jabra devices.

  • Page 39: Update Firmware

    Firmware updates improve performance or add new functionality to Jabra devices. The headset firmware can be updated using either Jabra Direct on your computer or the Jabra Sound+ app on your smartphone. Both applications will notify you when a firmware update is available.
  • Page 40 9. Support 9.1 FAQ View the FAQs on Jabra.com/help/evolve2-65flex 9.2 How to care for your headset • Always store the headset in the supplied pouch. • To prevent the depletion of the battery lifetime or capacity, avoid storing the headset in hot or cold environments, such as a closed car in summer, or in winter conditions.
