Summary of Contents for POWERPYE ELECTRONICS PPYPDZ12A WIFI

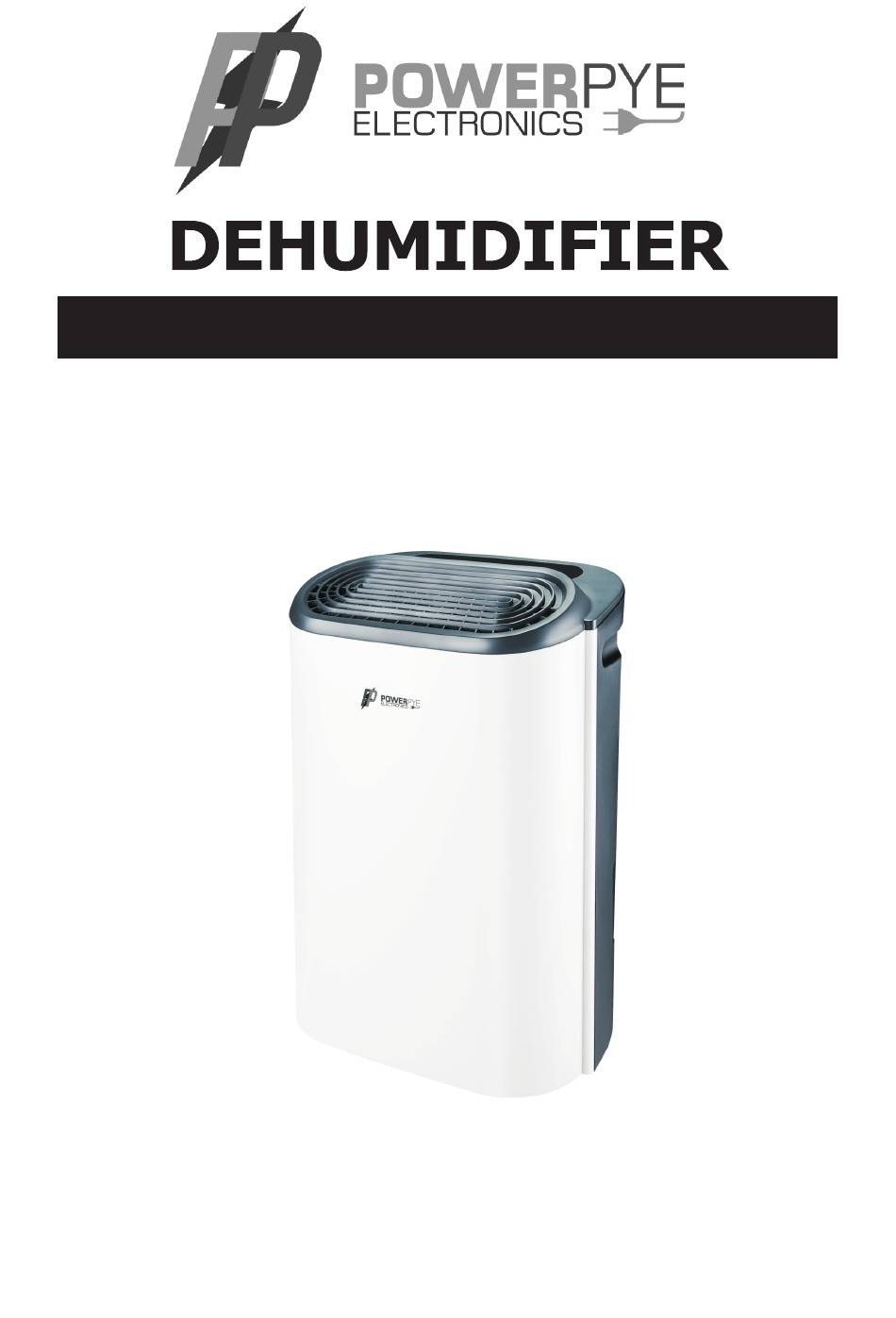

- Page 1 INSTRUCTION MANUAL AND WARRANTY CARD MODEL: PPYPDZ12A WIFI / PPYPD30 WIFI Thank you for choosing this product. Please read this instruction manual before using it.
- Page 3 Read the user manual before any use, refer to the corresponding section in this user manual. Recycle unwanted materials instead of disposing of them. All appliances and packaging should be sorted and tendered at a regional recycling centre and be processed in an ecological manner.
- Page 4 Figure1 Figure2 17 18 22 23 Figure3...
- Page 5 Parts List Components 1. Air Outlet 2. Front Cover 3. Control Panel 4. Handle 5. Water Tank 6. Casters 7. Top Cover 8. Air Inlet Grille 9. Drainage Outlet 10. Rear Cover 11. Power Cord Control Panel 12. Power Button 13.
-
Page 6: Table Of Contents
Table of Contents Safety Instructions ..............6- 7 Prior to Operation ................8 Continuous Drainage ..............8 Operation Instructions............... 9-12 Cleaning..................13 Storage..................14 Display Error Codes..............14 Trouble Shooting................15 Smart Connection Operation Guide..........16-19... -
Page 7: Safety Instructions
Safety Instructions Warning This appliance is intended for use in a domestic environment only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other person injury and property damage. Warning Cautions Wet hands not allowed Power Cord Do not pull the power Do not use the appliance in... - Page 8 Safety Instructions Placement Do not put flammable Do not use the appliance and explosive objects in swimming pool or similar around the appliance in facilities in order to avoid order to avoid fire. safety hazard. Do not use the Place the appliance on a appliance in a stable, flat surface.
-
Page 9: Prior To Operation
Prior to Operation Place the dehumidifier in an upright position on a stable, flat surface. Ensure the dehumidifier is at a safe distance at least 50cm away from a wall or furniture. Supply power should be in correspondence with the value on the nameplate, power outlet needs to be grounded. -
Page 10: Operation Instructions
Operation Instructions Switch On / Switch Off The Unit [ Power button ] Connect to the power supply and press the power button once to turn on the unit, the unit runs by default mode on manual continuous dehumidifying with high fan speed, the on/off indicator will be on. Press the power button to turn off the unit, it will stop working, fan will work for some seconds to blow out the hot air inside the unit. - Page 11 Operation Instructions Fan Speed Option [ Fan Speed button ] Press the fan speed button to select your preferred fan speed setting of low and high to meet the different usage requirements. Fan speed button is invalid at Defrost mode and Laundry Drying mode.
- Page 12 Operation Instructions Sleeping Mode Press and hold the Mode button for 2 seconds, the machine will enter into sleeping mode, all lights turn off and machine works at low fan speed. When tank is full, only the tank full indicator lights but without beeping sound. WiFi Function [ Timer button-2 seconds] Press the Timer button for 2s to activate WiFi function and enter the distribution network mode, during the network configuration, the WiFi indicator flash quickly, after WiFi connected the indicator is on.
- Page 13 Operation Instructions Low Temperature Defrost Indicator When the ambient temperature is too low, dehumidifier will enter into the defrost mode, the unit runs with high fan speed without dehumidifying. Auto Shut off with Water Tank Full Indicator The unit will enter into the standby mode when water tank is full or the water tank is not installed properly. After emptying the tank, or install the water tank properly the unit will go on to the previous mode.
-
Page 14: Cleaning
Cleaning When used regularly , the filter may become clogged with dust and particles. Therefore the filter should be cleaned at least every two weeks. Follow these steps: 1. Switch the device off and remove the plug from the socket before cleaning. -
Page 15: Storage
Storage If the dehumidifier will not be used for a long period of time, take the following steps: 1. Remove the plug from the socket and empty the tank make the tank and the dehumidifier completely, this may take a couple of days. 2. -
Page 16: Trouble Shooting
Trouble Shooting Check the following before contacting technical support . PROBLEM POSSIBLE CAUSE SOLUTION Insert the plug into the wall outlet The power is not connected The device does The water tank is full Empty the tank not work The tank has not Replace the tank been replaced correctly Be patient and wait... -
Page 17: Smart Connection Operation Guide
Smart Connection Operation Guide APP Binding Device Search an APP platform for “PowerPye” or scan the following QR code to download the APP. Step One Make sure the phone is connected to the WIFI at home, and turn on the Bluetooth device, tap the upper right corner of the home page + to add device. - Page 18 Step Two Follow the guide to select the device to be configured, then enter the WiFi password. PPYPD Z12A WiFi... Step Three Complete the connection to set the dehumidifier with APP. PPYPDZ12A WiFi / PPYPD30 WiFi PPYPDZ12A WiFi / PPYPD30 WiFi...
- Page 19 WARRANTY CARD MODEL & SERIAL NO. Date of Purchase: Where Purchased: Print Name: Address: E-mail: My signature below acknowledges that I have read, fully understand, and accept this limited warranty agreement. Signature: Date: WARRANTY TERMS: 1.2 YEAR WARRANTY 2.ONSITE WARRANTY CHARGEABLE 3.GAS REFILL NOT INCLUDED IN WARRANTY CUSTOMER CARE +911141006411...
