RYOSAI TECHNICA ROSAHL Instruction Manual

Humidity controller unit

1. Please read this manual before you use a humidity controller unit and use it correctly.

2. Please keep this manual to the person who operates, manages and maintains the unit.

For Proper Usage

This unit is an option part exclusively for ROSAHL.

We cannot guarantee for any troubles caused by using in combination with other than ROSAHL.

DO NOT put pin or wire etc into the unit. It may cause an electric shock and

the unit may be damaged or deteriorate.

DO NOT attempt to disassemble, repair or modify ROSAHL. It may cause an electric shock

and the performance deterioration, as this may damage it.

Make installation hole for the following dimensions on the container and attach the unit with two screws.

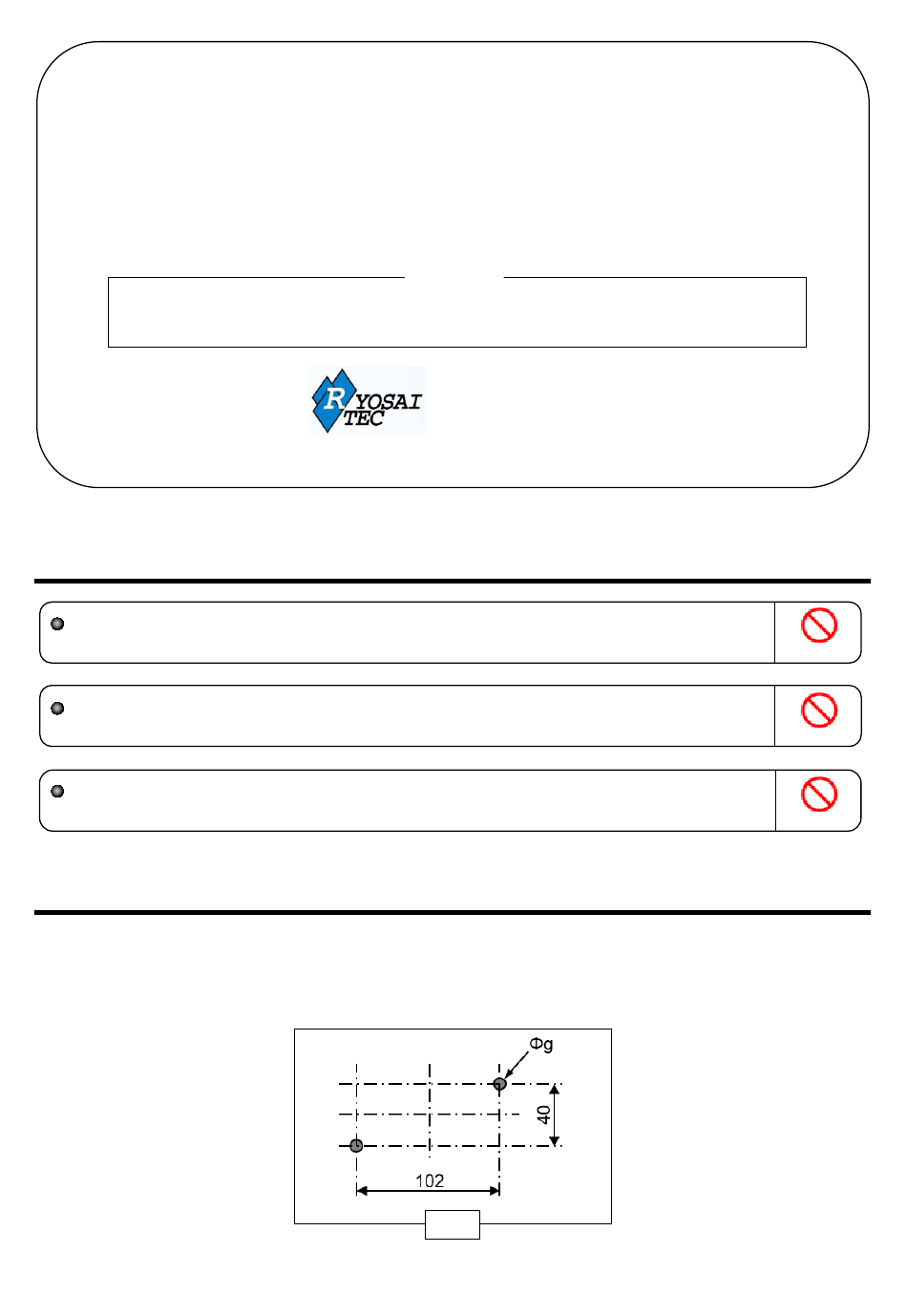

Note 1) Processed dimensions for Installation hole, refer to Fig.1.

Note 2) The connection to Electric Dehumidifier "ROSAHL", refer to Fig.2.

Electric Dehumidifier

R O S A H L

Instruction Manual

Humidity Controller Unit

C-M1J

NOTICE

RYOSAI TECHNICA CO., LTD.

8-1-1 Tsukaguchi-Honmachi

Amagasaki-City, Hyogo, 661-0001 Japan

Phone : +81-6-6497-9078 Fax : +81-6-6497-9082

Use it as a set with ROSAHL.

Fig.1

1 / 4

Prohibited

RB-OP21011

Table of Contents

Do you have a question about the ROSAHL and is the answer not in the manual?

Page 1 This unit is an option part exclusively for ROSAHL. Use it as a set with ROSAHL. We cannot guarantee for any troubles caused by using in combination with other than ROSAHL. Prohibited DO NOT put pin or wire etc into the unit. It may cause an electric shock and the unit may be damaged or deteriorate.
Page 2 Use it as a set with ROSAHL. 2) Attach the unit on the inside of a container that is dehumidified with ROSAHL. 3) Attach the unit in a place where air can easily circulate in the container as much as possible.
Page 3 Usage 1. For Using with Separate Type Dehumidifier [RDHB series] Please set the knob of humidity controller as the right side of it as possible. (Low humidity side) Please turn on the AC power supply and get energized. Please confirm lighting of the LED.* (It is a usage state) *Note : It might take 3-5 minutes to light the LED on the initial stage of turning on the power supply.
Page 4 Specifications Model Name C-M1J Items 2000 AC Dielectric Strength (per minute) Dimensions (mm) 112×78×35 Weight (kg) Humidity Set Range (%RH) 20 ~ 80 Operating Temperature (deg C) -10 ~ 50 Note *1 : Dimensions show the values of H × W × D in the figure below. ●Precautions for Humidity Controller The humidity controller only turns on / off the dehumidification function, and does not have the function that keeps inside of a container at the specified humidity.

C-m1j
