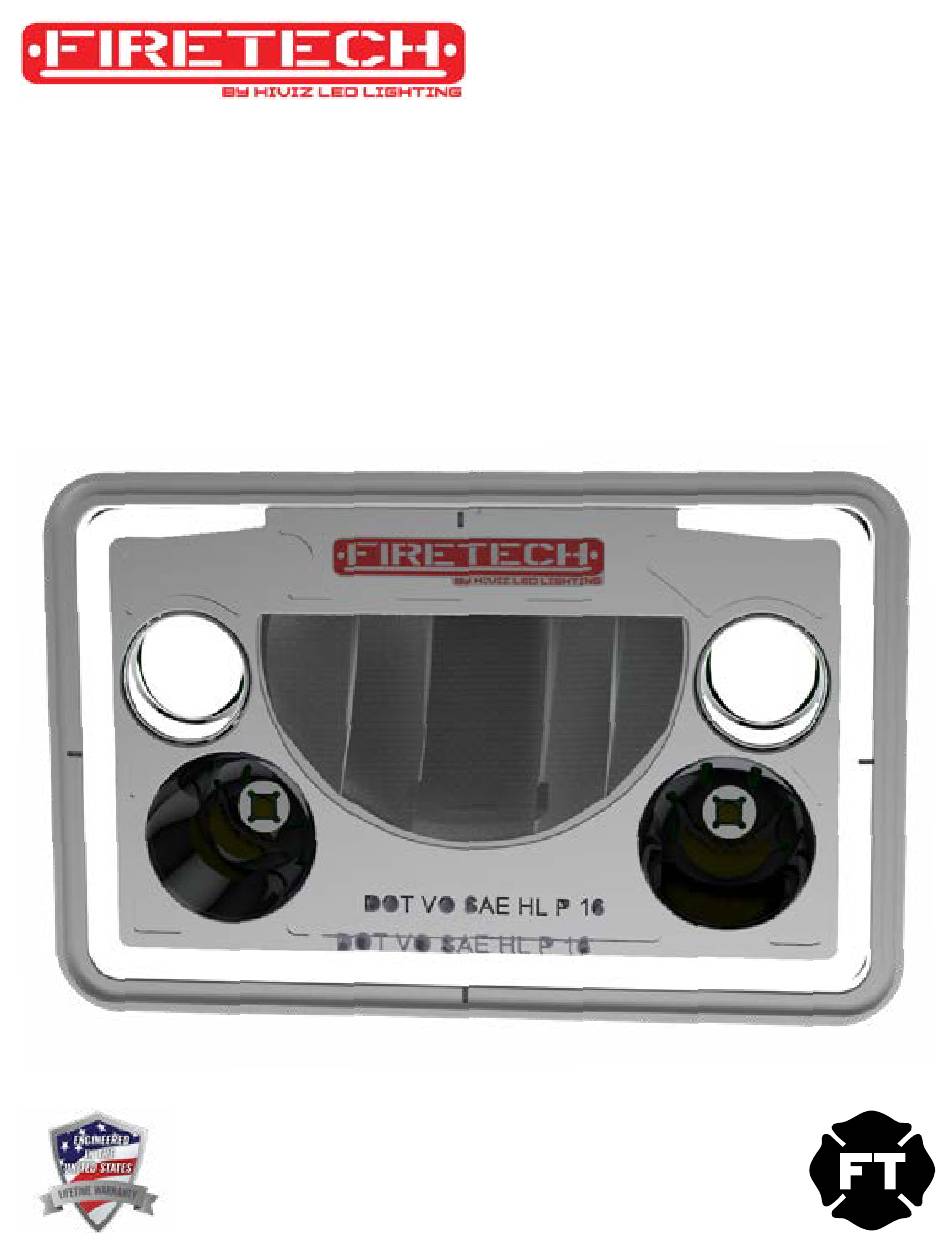

- Page 1 HEADLIGHTS INSTRUCTION MANUAL 4X6” Headlights FT-4X6-* HiViz LED Lighting HiViz Lighting, Inc Phone: 703-662-3458 Email: sales@hivizleds.com PO Box 565, Naples, NC 28760 HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: sales@hivizleds.com...
-
Page 2: Table Of Contents
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLATION Warranty Information: Full policy available Online at www.hivizleds.com/warranty • Proof of purchase may be required to validate warranty. All FireTech products are warranted for the useful service life of the vehicle for which they were first installed •... -
Page 3: 4X6 Headlight: What's Included
4X6 HEADLIGHT: WHAT’S INCLUDED TECHNICAL SPECIFICATIONS 4X6 LED HEADLIGHT Low Beam REFLECTOR COLORS CHROME, BLACK CHROME Elliptical BEAM MODELS HIGH/LOW, HALO, HIGH ONLY Halo DIMENSIONS 6.57” X 3.94” X 3.29” High Beam INPUT VOLTAGE 9-32V DC OPERATING RANGE -40F TO + 176F 6.57”... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Unscrew 6 Phillips screws holding headlight bezel in place. Remove and set aside bezel. Low Beam High Beam (outer light) (inner light) 2. Remove 4 screws in headlight retaining ring. Remove old headlight bulb(s). Tip: Start with 2 screws, then have a helper press the headlight into the housing while you remove the other 2 screws to prevent the headlight from falling out. -
Page 5: Wiring Information
Can I use 2 instead of 4 headlights? Yes. It is permissible to use 2 high/low FireTech headlights, or 2 high-only headlight in a 4 headlight system. What do I do with the halo wires? The halo wires should be wired to the closest “parking light” circuit on the truck. This circuit is the circuit that... - Page 6 Why is there a dark spot at about 25ft? In most applications for fire apparatus manufactured in North America, the FireTech headlight drops right in The FireTech headlights are designed to illuminate 3 distinct zones: the foreground (area between the bumper place and requires no additional wiring (other than the halo wires if desired).
-
Page 7: References
REFERENCES For additional information, please visit hivizleds.com 4X6 Headlights 4X6 Headlights Halo Installation Installation Video Video Product Page HiViz LED Lighting HiViz Lighting INC PO Box 565, Naples, NC 28760 Phone: 703-662-3458 Email: sales@hivizleds.com...
