MEDICOP 1300008 Quick Start Manual

MEDICOP 1300008 Quick Start Manual

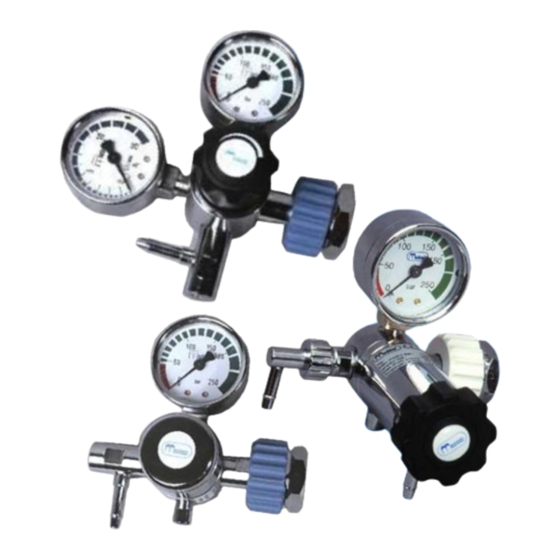

Pressure regulators for medical gases

Advertisement

Quick Links

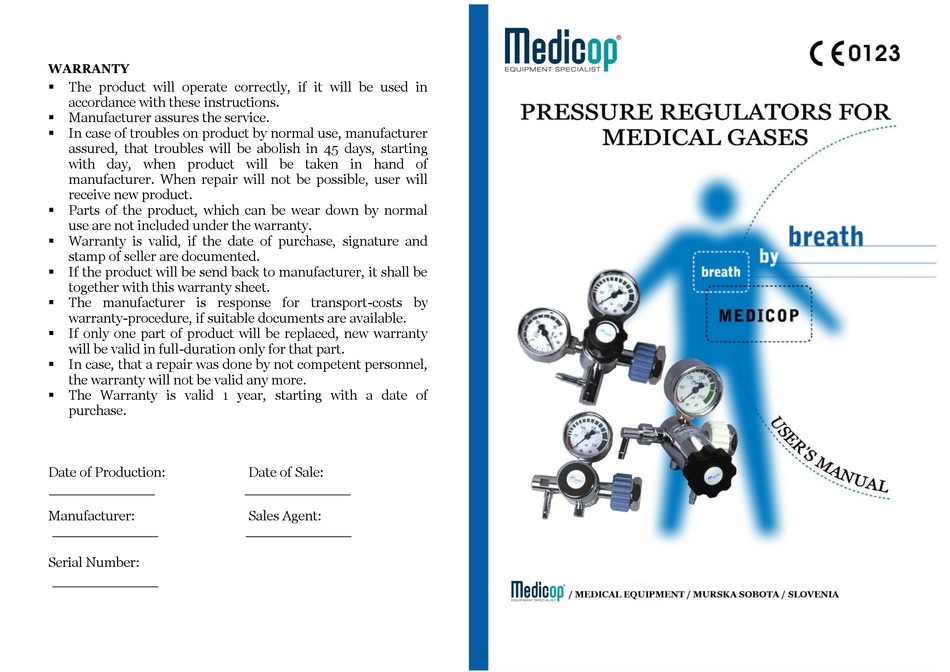

WARRANTY

 The product will operate correctly, if it will be used in
accordance with these instructions.
 Manufacturer assures the service.
 In case of troubles on product by normal use, manufacturer
assured, that troubles will be abolish in 45 days, starting
with day, when product will be taken in hand of
manufacturer. When repair will not be possible, user will
receive new product.
 Parts of the product, which can be wear down by normal
use are not included under the warranty.
 Warranty is valid, if the date of purchase, signature and
stamp of seller are documented.
 If the product will be send back to manufacturer, it shall be
together with this warranty sheet.
 The manufacturer is response for transport-costs by
warranty-procedure, if suitable documents are available.
 If only one part of product will be replaced, new warranty
will be valid in full-duration only for that part.
 In case, that a repair was done by not competent personnel,
the warranty will not be valid any more.
 The Warranty is valid 1 year, starting with a date of
purchase.
Date of Production:
Manufacturer:
Serial Number:
Date of Sale:
Sales Agent:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1300008 and is the answer not in the manual?

Questions and answers

Summary of Contents for MEDICOP 1300008

  • Page 1 WARRANTY  The product will operate correctly, if it will be used in accordance with these instructions.  Manufacturer assures the service.  In case of troubles on product by normal use, manufacturer assured, that troubles will be abolish in 45 days, starting with day, when product will be taken in hand of manufacturer.
  • Page 2 93/42/EEC (annex I). The product meets the requirements as regards hazard analysis for medical instruments in accordance with standard ISO 14971. Address of the manufacturer: Medicop d.o.o. Obrtna ulica 43 9000 Murska Sobota Slovenija tel:++386 (0)2 531 12 03, 526 82 22 fax: ++386 (0)2 531 17 26 www.medicop.eu...
  • Page 3 Replacing of the washer INSTRUCTIONS FOR USE 1. Remove the washer by use an appropriate dry and clean screwdriver. 1. Description: 2. Carefully place the new washer in to the seat. 1.1 Purpose The main purpose of pressure regulators is reducing high pressure of gases in cylinders (to 20 000kPa = 200 bar) to an appropriate lower working level (usually from 3 to 5 bar) which is used for various medical and therapeutic devices.
  • Page 4 1.3 Models of pressure regulators Description Ident. Nr. Period Sinter filter DIN connector yoke 1052015 1 year 1300008 – Pressure regulator with direct outlet-flow Sinter filter BS connector yoke 1052015 1 year Sinter filter PIN-INDEX connector yoke 1052064 1 year...
  • Page 5 Checking the system for leaks 1300001 – Pressure regulator with adjustable outlet flow 1300030 – Pressure regulator with adjustable outlet pressure 1. Close the system behind the pressure Pressure regulator is made as two-stage reducer by switching off devices regulator. In the first stage the inlet pressure connected to the pressure reducer.
  • Page 6 1300011, 1300018 – Pressure regulator with stepwise adjustable outlet-flow 4.5 Storage In case that the device is not in use we recommend followed: Pressure regulator is made as one-stage 1. Clean up the device (»Cleaning«) regulator. The regulator reduces inlet pressure 2.
  • Page 7 4.3 Adjusting of the outlet flow 2. Warnings 1300008, 1300009, 1300007 – Pressure regulator with direct outlet-flow Outlet flow is fixed and can not be changed. 1300001 – Pressure regulator with adjustable outlet flow The outlet flow can be adjusted by regulating screw 6.
  • Page 8 3. Preparing for operating 4. Operating 4.1 Start operating 3.1 Connecting of the pressure to the gas regulator cylinder By one slowly turn open the cylinder valve. Gas supply is established. Manometer indicated the pressure in the cylinder. To blow away the particles of dirtiness briefly open the valve of the cylinder and then tight it again.
