Summary of Contents for Uhlenbrock Elektronik IntelliLight LED

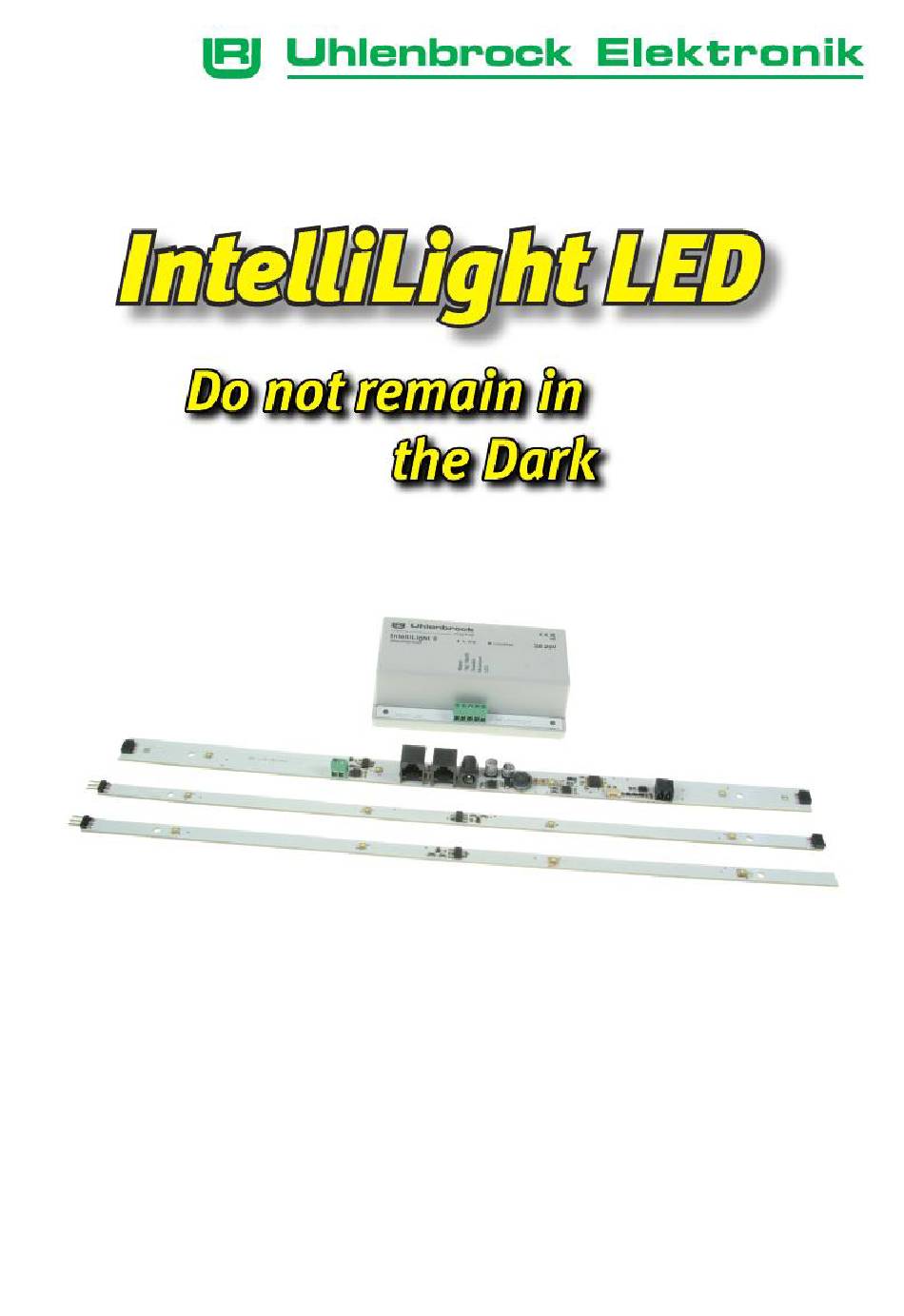

- Page 1 Manual - 1 -...
-
Page 2: Table Of Contents
6.2 Operation via Solenoid addresses (digital) 7. Synchronization with a LocoNet Clock 8.1 Calling up a Control Module with an Intellibox II 8.2 Reading and programming of an IntelliLight LED Control Module 8.3 The Universal Address 65535 9. LNCV Table 10. -
Page 3: Description
1. Description IntelliLight LED gives you realistic lighting for your model railway layout. IntelliLight LED illuminates your layout depending on the time of day and weather. When you switch the lighting system on it starts at dawn. The sun rises after a magnificent morning red. -
Page 4: Installation Of The Lighting System
1.5m per running metre, one lighting unit is needed. Therefore a layout with an edge length of 1m can be illuminated with an IntelliLight LED Starter set (a main lighting stick, 2 white lighting sticks). In order to arrange the lighting effect correctly with sunrise... -
Page 5: Connection
5. Connection 5.1 The Main Lighting Stick Connecting Sockets 1 – Connector for power plug pack 15 V DC, 1.9 A 2 – Connector for LED luminaire: 12 V, max. 2W, dimmable 3 - SUSI-Interface for the Sound module 4 - Connector strobe lamp 5 - 2x Connector IL-Net 6 - 2x Connector white Lighting stick The 6 m IntelliLight-Net cable, from the Starter set, is connected from the first main... -
Page 6: Connecting Led Luminaires
Starter set. 5.6 Connecting the IntelliLight 28 000 If an IntelliLight 28 000 already exists and is to be extended with an IntelliLight LED the main lighting stick from IntelliLight LED connector 5 is connected with the data line from the IntelliLight 28 000 as shown in the sketch. -
Page 7: Operation
6. Operation The lighting system is controlled by an internal model clock. Sunrise is set at 7:00 o'clock and sunset at 19:00. Weather events (cloudy appearance, rain and thunderstorm) are randomly inserted in the daily and night sequence. When the lighting system is switching on, the model clock is set at 7:00 o'clock and so the sunrise occurs. -
Page 8: Operation Via Solenoid Addresses (Digital)
6.2 Operation via Solenoid addresses (digital) If the light system is operated from a digital center with LocoNet connection (see 5.5), the individual events are switched using the following solenoid addresses: Solenoid address Setting Event Sunset Green Sunrise Random event 1: Cloudy Green Random event 2: Rain Random event 3: Short thunderstorm... -
Page 9: Calling Up A Control Module With An Intellibox
Press the "LocoNet Programming" button: Press the "Part number" button, and enter the part number of the IntelliLight LED control module (here 28200) and press the [ ]-key. Press the "Module Number" button, enter the module address for the module (in a ... -
Page 10: Reading And Programming Of An Intellilight Led Control Module
Important: In the event that a number of IntelliLight LED Base units are to be controlled by one Intellibox, every IntelliLight LED Base unit requires a different module address, so the digital centre knows which base unit is being referenced during programming. -
Page 11: The Universal Address 65535
The universal address is not a valid address that can be used for identifying different IntelliLight LED modules. It can only be used for calling up modules whose real address is not known. For this only the particular module that is being tested can be connected to the LocoNet. -
Page 12: Safety Notice
This product has a two year warrantee. If it is defective send decoder along with the receipt of purchase to the following address: Uhlenbrock Elektronik GmbH Mercatorstr. 6 D - 46244 Bottrop Tel: 02045-85830 Fax: 02045-86840 www.uhlenbrock.de...
