Summary of Contents for Idmed TOF-Controller

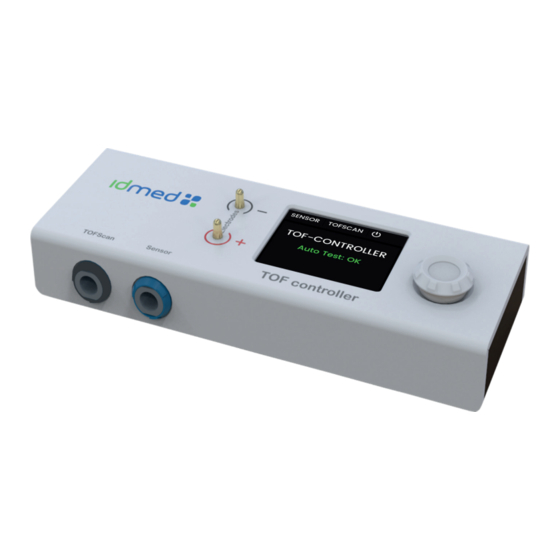

- Page 1 INSTRUCTIONS FOR USE TOF-Controller T e s t b e n c h f o r T o F s c a n a n d s e n s o r s v a l i d a t i o n...
- Page 2 Sensors Validation Test 1/ Power up TOF-Controller using the power 2/ Connect Sensor to TOF-Controller then supply then select SENSOR. connect the electrodes clamps as shown above. 3/ Position sensor as shown above then 4/ Position sensor as shown above...
- Page 3 ToFscan Validation Test 1/ Power up TOF-Controller using the power 2/ Connect ToFscan to TOF-Controller using supply then select TOFSCAN. the connection cable. Then turn on ToFscan by pressing the button. 3/ Enter TOF menu in the ToFscan 4/ On TOF-Controller: Press 2s and release to start the test .
- Page 4 Therefore it is mandatory that the TOF-Controller be subject to annual maintenance in order to ensure its proper functioning. Any failure to perform this annual maintenance could result in the commissioning of defective ToFscan and sensors.
