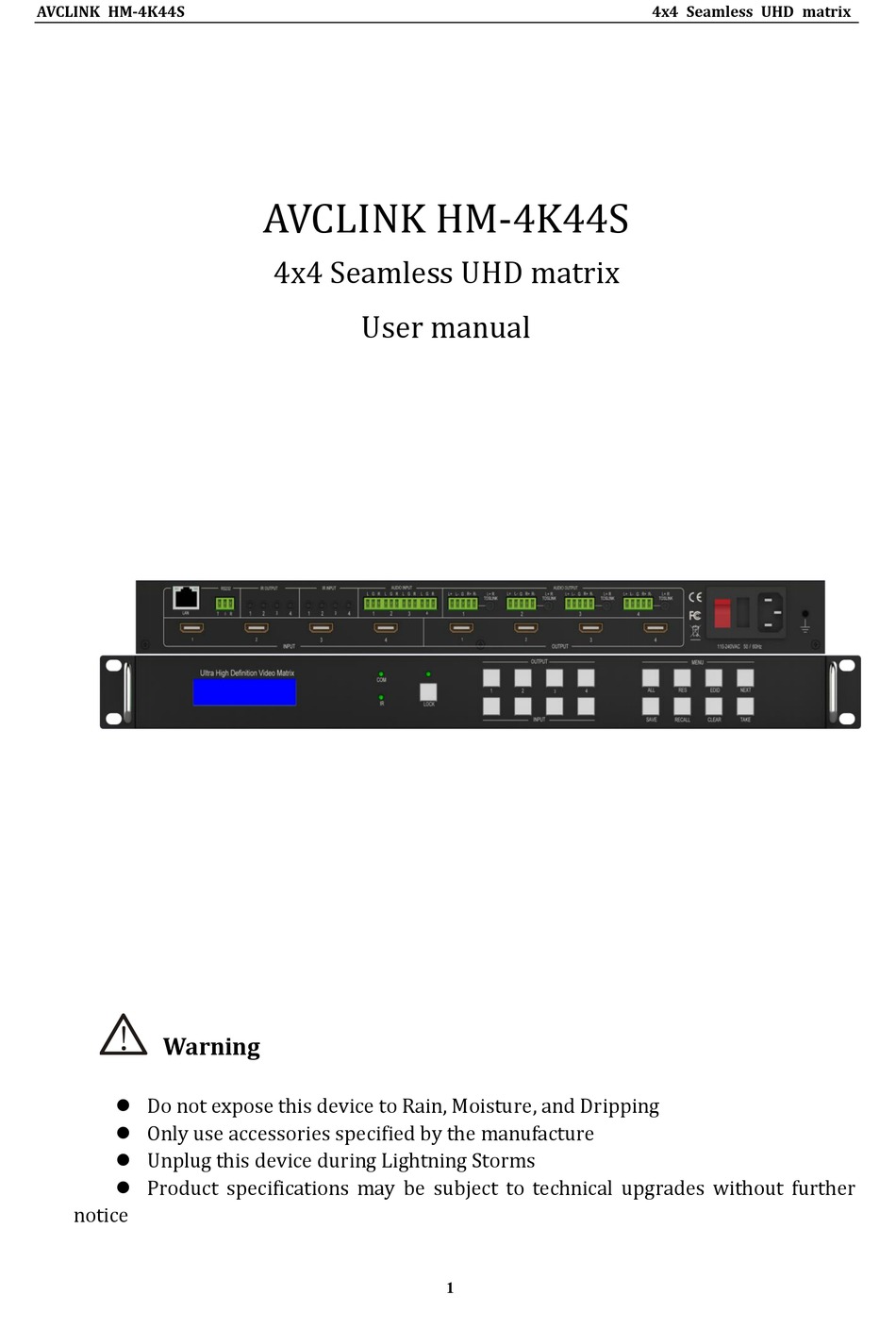

AVCLINK HM-4K44S

4x4 Seamless UHD matrix

AVCLINK HM-4K44S

4x4 Seamless UHD matrix

User manual

Warning

⚫ Do not expose this device to Rain, Moisture, and Dripping

⚫ Only use accessories specified by the manufacture

⚫ Unplug this device during Lightning Storms

⚫ Product specifications may be subject to technical upgrades without further

notice

Table of Contents

Need help?

Do you have a question about the HM-4K44S and is the answer not in the manual?

Questions and answers

Summary of Contents for AVCLINK HM-4K44S

Page 1 AVCLINK HM-4K44S 4x4 Seamless UHD matrix AVCLINK HM-4K44S 4x4 Seamless UHD matrix User manual Warning ⚫ Do not expose this device to Rain, Moisture, and Dripping ⚫ Only use accessories specified by the manufacture ⚫ Unplug this device during Lightning Storms ⚫...
Page 2: Table Of Contents
AVCLINK HM-4K44S 4x4 Seamless UHD matrix Content Introduction ..............................3 Front Panel Control ............................3 Rear Panel ..............................5 RS232/LAN Control ............................6 RS232 connector..........................6 Ethernet control and connection ..................... 6 PC tool user guide ............................6 Account’s authentication ........................6 Connect with PC tool ........................
Page 3: Introduction
AVCLINK HM-4K44S 4x4 Seamless UHD matrix 1 Introduction is a high-performance seamless UHD matrix switcher with 4x HDMI inputs and 4x HDMI outputs. Audio extract or insert can also be enabled on this device. IR matrix routing on this video matrix is followed with video routing.
Page 4 AVCLINK HM-4K44S 4x4 Seamless UHD matrix ⚫ Press button RES + OUTPUT n + NEXT + TAKE, to change output resolution of OUTPUT n Resolution options: Number Output Resolution Setting Number Output Resolution Setting 3840x2160p 60Hz 1440x1050 60Hz 3840x2160p 50Hz...
Page 5: Rear Panel
AVCLINK HM-4K44S 4x4 Seamless UHD matrix 3 Rear Panel ⚫ LAN (10M/100M), RS232 are for PC control ⚫ Analog Audio IN/OUT ports bind to corresponding HDMI ports. For example: If HDMI 1 audio source is selected with External LR, then analog AUDIO IN LR1 (with phoenix connector) will be selected to replace the embedded audio of the HDMI input 1 data stream.
Page 6: Rs232/Lan Control
AVCLINK HM-4K44S 4x4 Seamless UHD matrix 4 RS232/LAN Control RS232 connector ⚫ RS-232 control, baud rate 9600, 3-PIN Phoenix connector TX Pin, Matrix--->PC RX Pin, Matrix<---PC Ethernet control and connection Note：Factory default network setting： 5 PC tool user guide Account’s authentication When you run the PC tool, there needs password to authenticate.
Page 7: Matrix Switch Tab
AVCLINK HM-4K44S 4x4 Seamless UHD matrix 2. User can select UART (with RS232 cable) or Network to connect, baud rate is 9600 bps 3. Default IP address, 192.168,0.247 Matrix Switch tab There is a shortcut button to switch one input port to all output ports, that is Allset,...
Page 8: Signal Setting Tab
AVCLINK HM-4K44S 4x4 Seamless UHD matrix Recall mode：Recall an inputs/outputs routing scene which already be saved before. The device supports maximum 8 scenes. Save mode：Save current inputs /outputs routing in one index. Maximum 8 modes supported. Note: Save/Recall button here works the same with front panel save/recall control and also the same with Save/Load function on video wall page System reset: The PC tool support reset system to recover to factory configuration.
Page 9: Video Wall Tab
AVCLINK HM-4K44S 4x4 Seamless UHD matrix If none special occasions, do not change the default settings Video Wall tab 1. Use the Video Wall Setting controls to change how the displays are arranged on the Video Wall tab: a. Adjust the Rows and Columns sliders to change the displayed screen arrangement to permit proper Drag-and-Select of the desired screens for the video wall.
Page 10: Video Wall Context Menu
AVCLINK HM-4K44S 4x4 Seamless UHD matrix 5.6.1 Video Wall Context Menu Right clicking on any of the screen icons will display the following context menu: Screen Stitching This option connects the selected screens into a video wall configuration. Cancel Stitching Return the Video Wall configuration to normal outputs.
Page 11: Bezel Setting
AVCLINK HM-4K44S 4x4 Seamless UHD matrix Output Select This option is only available for any screen that is not assigned to a video wall mode. This option is only available for any screen that is not assigned to a video wall mode. It allows setting of the Ошибка! Источник...
Page 12: Cec Control Page
AVCLINK HM-4K44S 4x4 Seamless UHD matrix CEC control page When Auto Power On is enabled, every time when turned on, it will turn on all the sources and displayers which connected to it and support CEC function CEC function include Power on/off, Volume+/-,Mute/Unmute...
Page 13 AVCLINK HM-4K44S 4x4 Seamless UHD matrix IP Config The IP Config tab is used to change the IP settings of the matrix switcher. Enter any necessary changes and click Save to program the switcher to the new settings, or Cancel to reject the changes.
Page 14: Electrical Parameters
AVCLINK HM-4K44S 4x4 Seamless UHD matrix 7 Electrical parameters Electrical parameter Interface HDMI-A HDMI Version HDMI2.0, HDCP2.2 Bandwidth 18Gbps HDMI Amplitude T.M.D.S +/- 0.4Vpp Differential impedance 100±15ohm RS232/Ethernet control Baud rate and protocol Baud rate：9600, data bit：8， stop bit：1, no parity checking Ethernet IE10.0 + HTML5...
