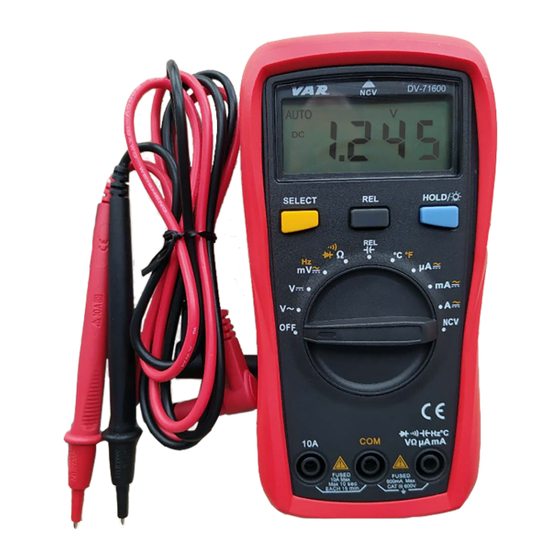

AUTO RANGING DIGITAL MULTIMETER
VAR thanks you for purchasing DV-71600 specially designed for electrical values
measuring.
Please read this manual carefully before each use.
Recommendations
DV-71600 is a precision tool that has to be used and stored with care, avoiding
shocks, falls and mistreatments.
VAR DV-71600 multimeter complies with CE, IEC/EN 61010-1, CAT II 600V standards,
double insulation. For your safety, follow the instruction specified in this operating
manual. Do not use it if insulation is damaged or removed. Do not use the multimeter
if test leads are damaged or not correctly insulated. An electrical shock may occur.
Replace the battery as soon as the indicator
multimeter might produce false readings. Do not apply more that the rated voltage.
Do not change the measuring range during the testing, it might damage the
multimeter. Disconnect the test leads before changing the kind of measurement. Do
not use or store the multimeter in an environment with humidity or high temperature.
Carefully avoid abrasive and solvent to clean the multimeter.
Espace Eiffel - Lot D6
19 et 21, Avenue Gustave Ei el
28630 Gellainville - FRANCE
+33 2 37 33 37 10
contact@vartools.com
appears. With a low battery, the
DV-71600
1/6
Advertisement
Table of Contents
Related Manuals for VAR DV-71600
Summary of Contents for VAR DV-71600
- Page 1 Please read this manual carefully before each use. Recommendations DV-71600 is a precision tool that has to be used and stored with care, avoiding shocks, falls and mistreatments. VAR DV-71600 multimeter complies with CE, IEC/EN 61010-1, CAT II 600V standards, double insulation.
- Page 2 Specifications Temperature 18°C ~ 28°C Relative humidity < 7t5% Accuracy +/- (a% reading + b digits) Resistance Range Resolution Accuracy +/- (1.2% + 2) 0.001 k +/- (1% + 2) 40 k 0.01 k +/- (1% + 2) 400 k 0.1 k +/- (1% + 2) 0.001 M...
- Page 3 DC current Range Resolution Accuracy 400 A 0.1 A +/- (1% + 2) 4000 A +/- (1% + 2) 40 mA 0.01 mA +/- (1.2% + 3) 400 mA 0.1 mA +/- (1.2% + 3) 0.001 A +/- (1.5% + 5) 10 A 0.1 A +/- (1.5% + 5)
- Page 4 4. Measurement : turn rotary switch to choose the measuring position. If the battery is too low, a sign is displayed. Voltage In each range, the multimeter DV-71600 has an input impedance of 10M . This loading effect can cause measurement errors in high impedance circuits.
- Page 5 Current Press SELECT to switch AC or DC current measurement. Select the correct terminal input and turn the rotary switch to select the measuring function. In case of you have no idea on the input current value, choose the highest mode. For safety purpose, in case of any measurement higher than 5A, wait at least 15 minutes before any new current measurement.
- Page 6 Continuity measurement Disconnect circuit from power and discharge all the high voltage capacitors. Place the test leads on the circuit to test. If circuit is opened, buzzer doesn’t produce any beep. If circuit is continuous, buzzer makes a beep. Frequency Connect the test leads across with the object being measured.
