About this Practice:
This practice has been reissued to:
• Meet ISO 9001 requirements.
Reissued Practices: Updated and
new content can be identified by a
banner in the right margin.
Issue date: January 1998
Copyright 1998 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered
05615 U
A
LARM
44210-XX
460 MODEM
TD
DTR
OFF
RD
HOOK
CD
RING
ESD
RESET
44210-XX
1
Table of Contents
Ordering Information ........................................................................... 2
General Description .............................................................................. 2
Installation ............................................................................................ 3
Operation ............................................................................................ 13
Application Information ..................................................................... 14
Technical Specifications ..................................................................... 18
Warranty ............................................................................................. 20
CAUTION
•
Install or remove modules from the shelf only when the power is off.
If you install a module in the shelf with the power on, the internal
circuitry may suffer damage and the product warranty will be void.
•
Remove and install circuit boards only in a static-safe environment
(use antistatic wrist straps, smocks, footwear, etc.).
•
Keep circuit boards in their antistatic bags when they are not in use.
•
Do not ship or store circuit boards near strong electrostatic, electromag-
netic, magnetic, or radioactive fields.
•
For more complete information on electrostatic discharge safety
precautions, refer to Bellcore
Printed in the U.S.A.
I
NSTALLATION
NIVERSAL
T
EST
46022-3X
46020-XX
MULTI-ALARM
MULTI-ALARM
PROCESSOR
COMBINER
L
I
N
E
M
O
N
RESET
ESD
CHAN
ENB
XMT DATA
46020-XX
46022-XX
2
3
TM
Technical Reference # TR-NWT-000870.
& O
M
PERATION
ANUAL
05615-0198 <90-00048>
S
ET
46090-01
RS-232
CONNECTOR
C2
C1
ESD
46090-01
4
Advertisement
Summary of Contents for Dantel 05615
-
Page 1: Table Of Contents
For more complete information on electrostatic discharge safety Issue date: January 1998 precautions, refer to Bellcore Technical Reference # TR-NWT-000870. Copyright 1998 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered Printed in the U.S.A. -
Page 2: Ordering Information
ORDERING INFORMATION NOTE: This section lists the different options available for this product. To order any of the avail- able options, contact Dantel Inside Sales through our toll-free number, 1-800-432-6835. OPTION NUMBER FEATURES A15-05615-01 Universal Alarm Test Set A15-05615-21 Universal Alarm Test Set w/ A17-49023-00 Cable Kit... -
Page 3: Installation

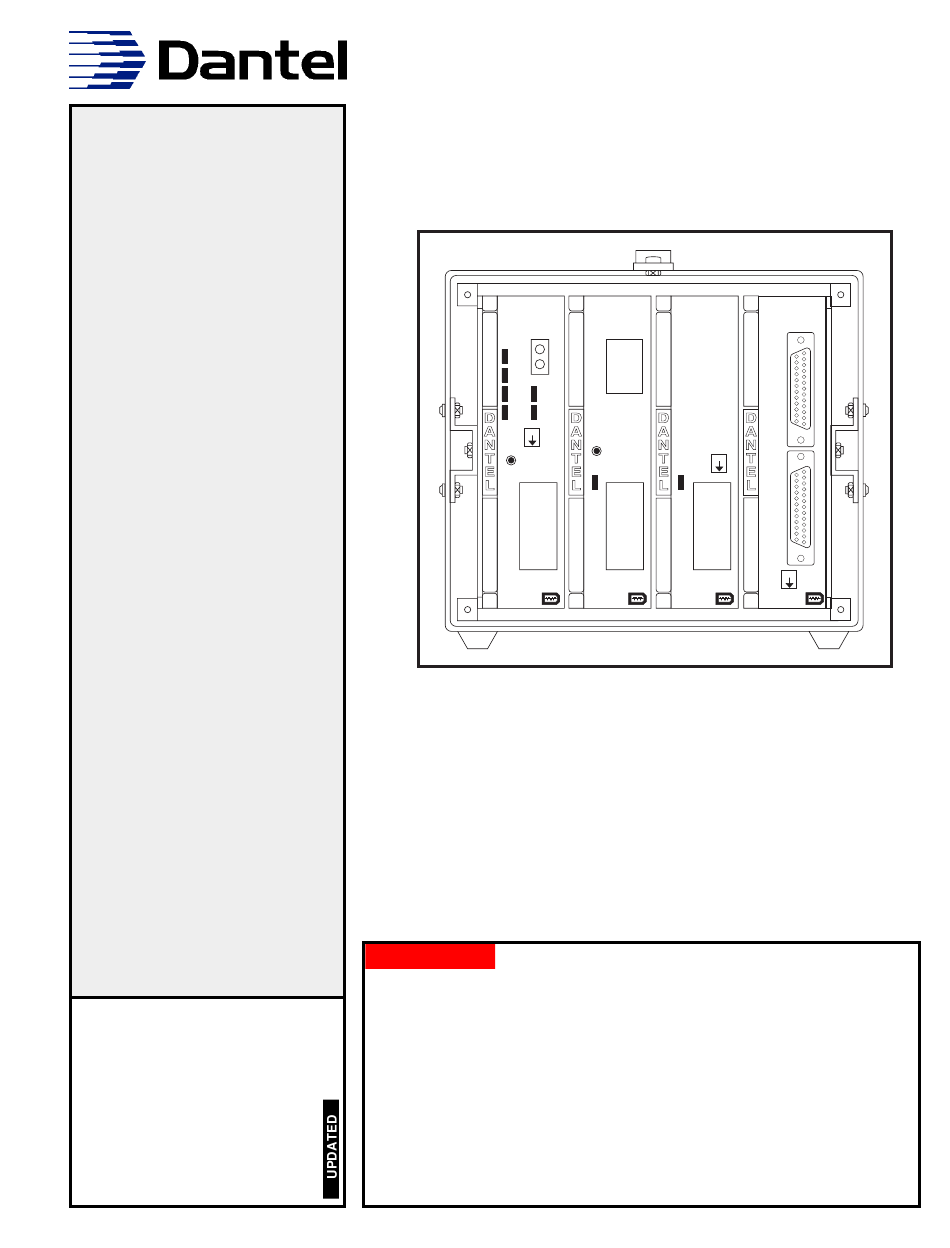

INSTALLATION nstalling the 05615 Universal Alarm Test Set consists of: ♦ Setting switches and straps. ♦ Connecting cables to external equipment. ♦ Configuring the MAP. ♦ Connecting the terminal to the MAP craft/printer port. NOTE: Before beginning, verify that the Test Set is equipped as illustrated on the front cover of this manual. - Page 4 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 SWITCH 4 SWITCH 1 SWITCH 3 SWITCH 2 05615-0198 <90-00048>...
- Page 5 DOWN DOWN PRINTER PORT PROTOCOL S6-5 S6-6 S6-7 S6-8 DOWN DOWN DOWN DOWN TBOS DOWN DOWN DOWN Printer (Default) DOWN DOWN DOWN DCPF DOWN DOWN TABS DOWN DOWN DOWN SWITCH S7 S7-1 through S7-8 Not Used All UP 05615-0198 <90-00048>...
- Page 6 ETTINGS OPTION STRAP Unterminated Input J Strap removed Terminated Input * J Strap installed RS-422 * Install straps A & C RS-485 Install straps C & E NOTES: * = default setting. Remove J Strap when using RS-422. 05615-0198 <90-00048>...
- Page 7 XMT PAD STRAPS XMT PAD STRAPS IN (transmit output level adjustable Place jumpers parallel to connector between -20 and -40 dBm.) OUT (default -transmit output level Place jumpers perpendicular to adjustable between -1 and connector P5. -20 dBm.) 05615-0198 <90-00048>...
- Page 8 CTS Handshaking Use CTS Handshaking X1 - THRU No CTS Handshaking X1 - ON DCD Handshaking Use DCD Handshaking X2 - THRU No DCD Handshaking X2 - ON Paralleling (not used) X3 - jumper pins 1 & 2 05615-0198 <90-00048>...
- Page 9 The data port polls equipment for alarms through the 46022-30 MAC. Connect the MAC to alarm equipment at one REAR PANEL of three locations. See Figure 9 and Table G for pin designa- tions. TB-1 . . . CONTINUED 05615-0198 <90-00048>...
- Page 10 J1-tip pin 3 pin 2 J1-ring pin 20 49029 (RS-232) pin 1 J1-tip pin 3 pin 2 J1-ring pin 20 pin 3 pin 8 pin 4 J2-tip pin 5 pin 5 J2-ring pin 2 pin 6 pin 4 05615-0198 <90-00048>...
- Page 11 Verify that the front panel CD (Carrier Detect) LED at the distant end indicates data transmisssion activity. With a dB meter (bridging), check the signal level at the XMT test points. Adjust the XMT LVL to obtain the level required for your application..CONTINUED 05615-0198 <90-00048>...
- Page 12 PRINTER PORT PRINTER - DCP - DCP/F - TBOS - TABS HOST 44210-XX 46020-XX 46022-XX 46090-01 - PRINTER Serial Dumb Printer Printer REAR PANEL TB-1 EQUIPMENT UNDER TEST - DCM - DCP - DCP/F - TBOS - TABS 05615-0198 <90-00048>...
-
Page 13: Operation
When power is restored, the MAP resumes operation. NOTE: You must configure the MAP with Dantel’s 40 MAP Editor software (46508) to collect and process alarms correctly. LEDs on the front panels of the modules and subassemblies show the activity on the transmit and receive paths and the handshaking lines. -
Page 14: Application Information
APPLICATION INFORMATION onnect the test set to other systems using the 05615 Univer- sal Alarm Test Set Cables Package. Refer to Fig. 11. The test set has multiple ports for communications with various external alarm systems. Refer to Fig. 12. Use the types of cables for connecting to different systems. - Page 15 (A17-49023-00) NIVERSAL LARM ABLE ACKAGE Dantel Alarm Test Set: A18-05615-42 Various cables may be used to provide system connections depending on what customer equipment is to be attached. See Block Diagram for pinouts Yellow Green RJ-11 plug to Spade Connectors...
- Page 16 . 12 - U NIVERSAL ONNECTIONS Dantel Universal Alarm Test Set: A18-05615-42 TEST SET CONNECTIONS: The 5615 Test Set is equipped with multiple ports for communications with various external alarm systems. The drawing below illustrates the input, output, and configuration connections.
- Page 17 APPLICATION INFORMATION . 14 - TABS/TBOS R ESPONDER PPLICATION Dantel Universal Alarm Test Set: A18-05615-42 TABS/TBOS RESPONDER APPLICATION: Test Set simulates a TABS/TBOS Device when polled by an interrogator. DCP/DCPF (or other protocol) output to alarm master system. (RS-232, RS-422/485, 202T Interfaces).
-
Page 18: Technical Specifications
64 displays maximum (4096 alarm points) Interface RS-422/485 * * Depending on RS-232 * subassemblies 202 Tone * used Input Voltages 117 VAC (0.5 Amps) Weight 6.5 lbs. Physical Dimensions 7.0" x 7.0" x 10.0" Operating Temperature Range 0° to 55° C. 05615-0198 <90-00048>... - Page 19 NOTES 05615-0198 <90-00048>...
-
Page 20: Warranty
To ensure expedient processing of your order, provide a purchase order number and shipping and billing information when requesting an RMA number. Also, when the units are returned to Dantel, include a descrip- tion of the failure symptoms for each unit returned. Send defective equipment to: Dantel, Inc.
