Summary of Contents for Tool Shed TSDH7

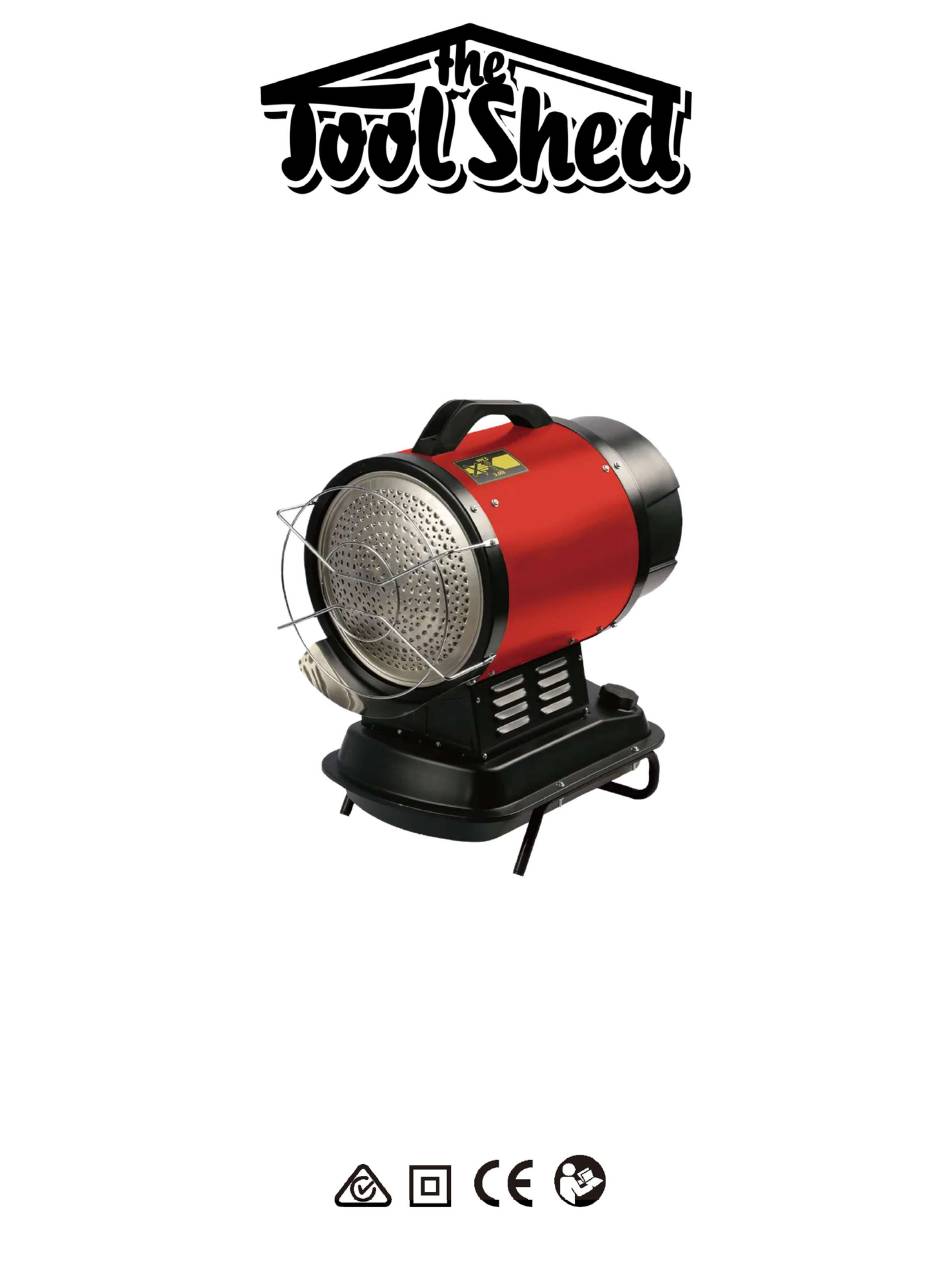

- Page 1 RADIANT DIESEL HEATER 20KW TSDH7 www.thetoolshed.co.nz...
-
Page 2: Product Details
PRODUCT DETAILS PRODUCT ToolShed Diesel Heater 20KW Radiant MODEL NO. TSDH7 ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. -
Page 3: Specifications
OPERATION MANUAL C O N T E N T S: Specifications ............................4 Identification Figures ..........................4 Safety Guidelines ............................ 5 Service ..............................6 Additional Safety ............................ 7 Assembly ..............................8 Operation ..............................9 Cleaning & Maintenance ........................9 Transporting ............................9 Troubleshooting ........................... - Page 4 OPERATION MANUAL Power 20kW Fuel Consumption 1.88LPH Fuel Type Diesel Fuel Tank 10.5L Electrical Supply 220-240V ~ 50Hz Net Weight 18.2kg Nozzle Type 0.4 GpH 60°S DANFOSS IDENTIFICATION FIGURES IMPORTANT INFORMATION www.thetoolshed.co.nz...
-
Page 5: General Safety Guidelines
OPERATION MANUAL GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean. Lack of visibility and clutter greatly increase the risk of accident. - Page 6 OPERATION MANUAL Do NOT use the power tool or machinery in raining conditions or wet areas where the power tool or machinery could get wet. Water in the power tool or machinery can lead to electric shock. Only use the power tool or machinery when the plug correctly matches the power outlet. Modifying plugs greatly increases the risk of electric shock.
- Page 7 OPERATION MANUAL In order to avoid overheating, do not cover the heater. CAUTION | Some parts of this heater can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. Only the fuel types specifically listed on the heater’s nameplates are to be used. Before refueling, shut down the heater and wait for it to cool down.
-
Page 8: Handle Installation
OPERATION MANUAL 1. Open the two screws on the fixed rings. 2. Put the protection panel on the designated spot to meet screw holes. 3. Set the screws with the protection panel. FRONT GRILL INSTALLATION HANDLE INSTALLATION STAND INSTALLATION OPERATION www.thetoolshed.co.nz... -
Page 9: Cleaning And Maintenance
OPERATION MANUAL Running the Heater 1. Check the fuel is present in the tank. 2. Close the fuel tank filler plug. 3. Plug the power cable into the wall outlet. 4. Turn the ON/OFF switch ON – the heater should be on in a few seconds. If it is not, please refer to the troubleshooting section. -
Page 10: Problem Identification
OPERATION MANUAL DISPLAY ERRORS ERROR CAUSE SOLUTION OPERATION ERROR 1. The ON/OFF switch is in 1. Disconnect the heater the ON position when from power. Ensure the heater is plugged switch is in OFF position then plug in and switch on. PHOTOCELL ERROR 1. - Page 11 OPERATION MANUAL PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Heater doesn’t run. 1. Heater blocked. 1. Restart the heater. 2. The power switch is in 2. Turn the switch ON. the OFF position. 3. No power. 3. Plug the feeder cable properly into the socket. 3a.
