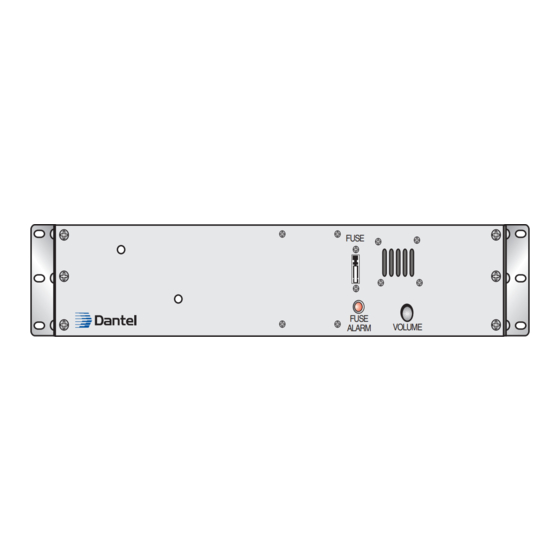

Dantel 00030-10 Installation & Operation Manual

About this Practice:
This practice has been reissued to:
• Meet ISO 9001 requirements.
Reissued Practices: Updated and
new content can be identified by a
banner in the right margin.
Issue date: August 1998
Copyright 1998 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered
00030-10
O
RDER
S
PEAKER

Table of Contents

Ordering Information ........................................................................... 2
General Description .............................................................................. 2
Circuit Description ............................................................................... 2
Installation ............................................................................................ 4
Technical Specifications ....................................................................... 6
Warranty ............................................................................................... 8
CAUTION
•
Install or remove modules from the shelf only when the power is off.
If you install a module in the shelf with the power on, the internal
circuitry may suffer damage and the product warranty will be void.
•
Remove and install circuit boards only in a static-safe environment
(use antistatic wrist straps, smocks, footwear, etc.).
•
Keep circuit boards in their antistatic bags when they are not in use.
•
Do not ship or store circuit boards near strong electrostatic, electromag-
netic, magnetic, or radioactive fields.
•
For more complete information on electrostatic discharge safety
precautions, refer to Bellcore
Printed in the U.S.A.
