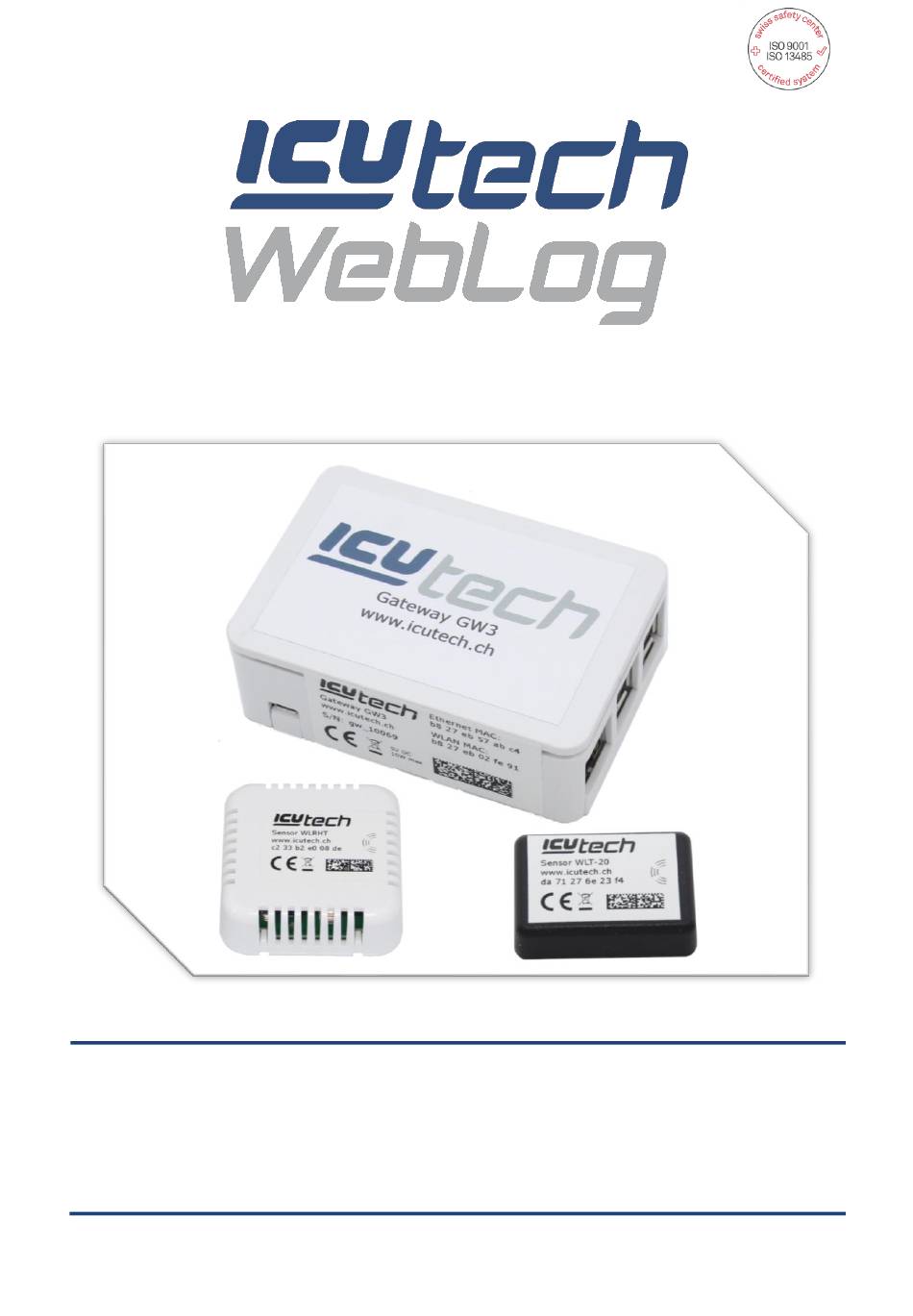

- Page 1 User manual for a Weblog device with sensor ICU tech GmbH Bahnhofstrasse 2 | CH-3534 Signau www.icutech.ch | info@icutech.ch | T: +41 34 497 28 20 Support (Mo-Fr 9.00h-17.00h) : T: +41 34 497 28 20 | support@icutech.ch Druckversion: 2019...
-
Page 2: Table Of Contents
Standard Overview ....................... 14 Goup View ........................15 Sensor View ......................... 16 ICU tech Support ......................... 17 Seite 2 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20 www.icutech.ch... -
Page 3: Package Contents
3. Ethernet (LAN) cabel 5m 4. Power supply unit for 230V 5. Magnetic button 6. Customer information sheet 7. Calibration certificate Seite 3 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20 www.icutech.ch... -
Page 4: Device Installation And Commissioning
3m and the two units must be in the same room. Seite 4 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20... -
Page 5: Establish Connection Between Icu Gateway And Internet
2.5.1 Configuration via IPhone The configuration app is not available for IOS. Customers who only have IOS devices can use the gateway via a LAN connection or request a pre-configuration of the gateway by ICU tech when ordering. 2.5.2 Configuration via Android 2.5.2.1... - Page 6 2.5.2.4.1 Via LAN Connection with DHCP In the app, select and save Ethernet/DHCP Seite 6 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20 www.icutech.ch...
-
Page 7: Connect
The app now shows whether the gateway is online or offline. The gateway must be online. If not, reconnect. Seite 7 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20... -
Page 8: The Weblog Platform
The data can be accessed from a smartphone with the ICU tech WebLog app (chapter 4) or from a PC via the web browser (chapter 5). The ICU tech WebLog app is available for Android and IOS. The sensors deliver their measurement data via ICU gateway to the ICU tech WebLog server. This server monitors the data and triggers an alarm via e-mail and SMS in case of a deviation. -
Page 9: Access Via Icu Tech Weblog App
Access via ICU tech WebLog App Install App Download the ICU tech WebLog app on the desired smartphone (for Android, in the Google Play Store or for IOS, in the App Store). 4.1.1 Download for Android Link to the ICU tech Weblog App for Android: https://play.google.com/store/apps/details?id=ch.icu.MonitoringApp... -
Page 10: App Login
App Login Open the ICU tech Weblog app on your smartphone. The login screen appears. The user name and password can be found on the supplied customer information sheet. The password can be saved on the smartphone using the virtual switch. The login is completed with the "login button". -
Page 11: Sign App Event
4. By clicking the button "sign alarm" the alarm is signed and changes its position in the event list. Seite 11 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20... -
Page 12: Access Via Web Browser
In all three views, icons are used to indicate the current status of the object group or sensor. The following table describes the icons and their meaning in more detail. Seite 12 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20... -
Page 13: Date/Time Interval
(click on calendar symbol) or as time interval (click on blue selection button) the current hour, day, week or year. Selection by date and time Selection by time interval Seite 13 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20 www.icutech.ch... -
Page 14: Sign
5.4 communication errors Seite 14 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20 www.icutech.ch... -
Page 15: Goup View
The list of group events is displayed below the sensor list. It contains the event source name, event time, error type, signature information and signature comment. Seite 15 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20... -
Page 16: Sensor View
To zoom, use the mouse to mark the desired zoom area from top left to bottom right. To reset the zoom area, mark the selection with the mouse from bottom right to top left. Zoom: Reset: Seite 16 von 17 hone: ICU tech GmbH | Bahnhofstrasse 2 | CH-3534 Signau info@icutech.ch 49720info@icutech. T: +41 34 497 28 20 www.icutech.ch... -
Page 17: Icu Tech Support
ICU tech Support The ICU tech support team will be happy to help you with any problems or uncertainties. We provide information during office hours from Monday to Friday between 9.00 and 17.00 hours. You can reach us by phone or e-mail.
