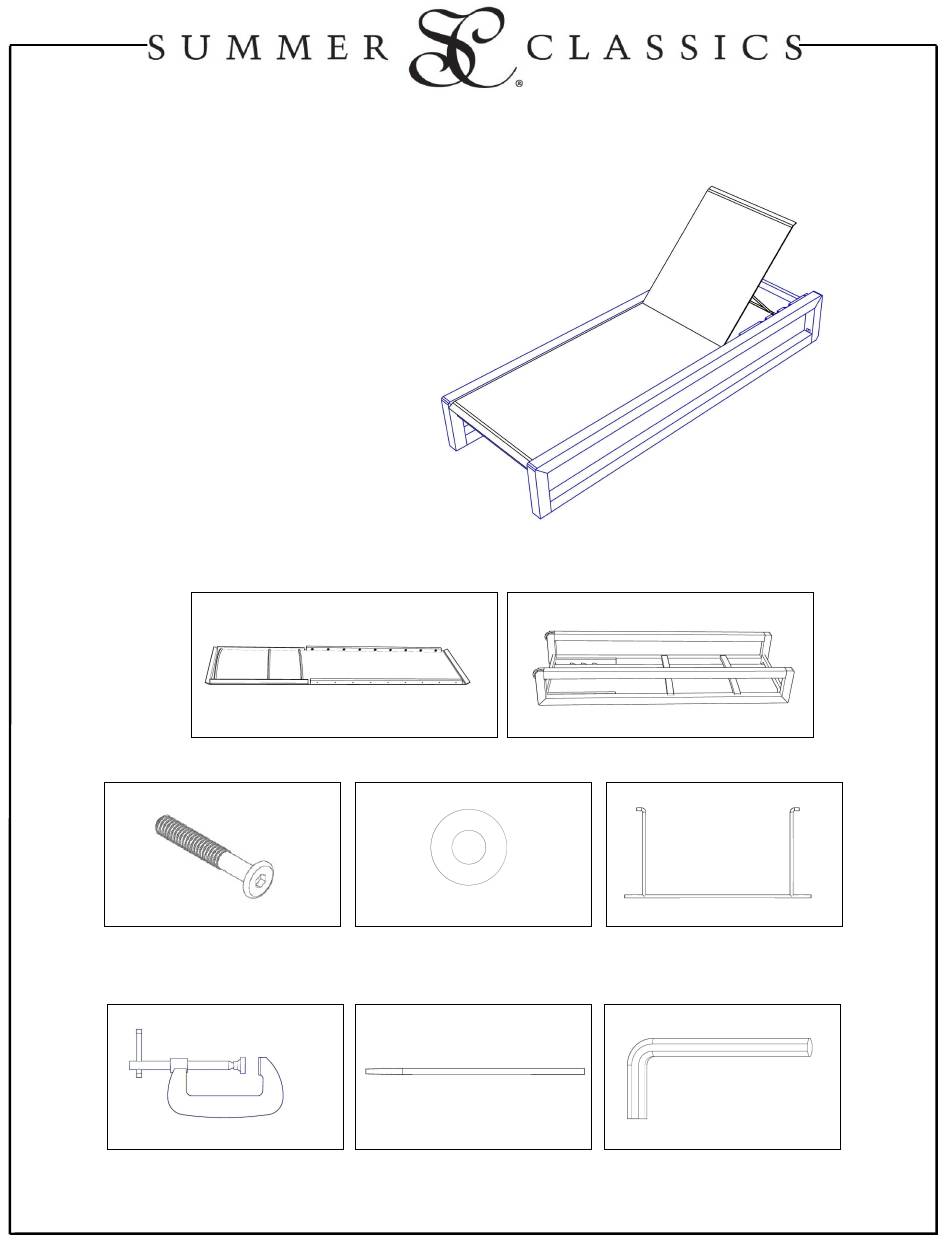

HARDWARE INCLUDE :
1. 18 – Bolt
2. 18 – Washer
3.
1 – St Frame
PARTS INCLUDE :
A. 1 – Sling
B. 1 – Frame
TOOLS REQUIRED :
1. – "C" Clamp - provided
2. – Allen Key - provided
3. – alignment Stick - provided
A
1
18pcs
1
1 pc

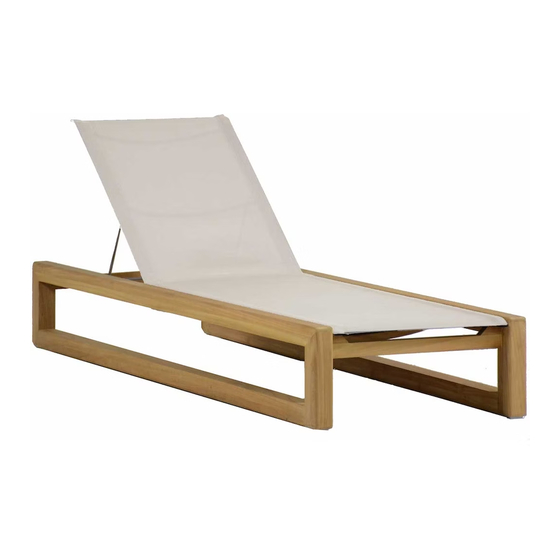

Replacement Sling for Bali Chaise
ASSEMBLY INSTRUCTION
Sling
HARDWARES :
Bolt
2
TOOLS REQUIRED :
"C" clamp
2
PARTS :
1pc
B
Washer
3
18pcs
Provided:
3
st Stick
1 pc
1 pc
Frame
st frame
1pc
allen key
1 pc
Page 1 of 2
