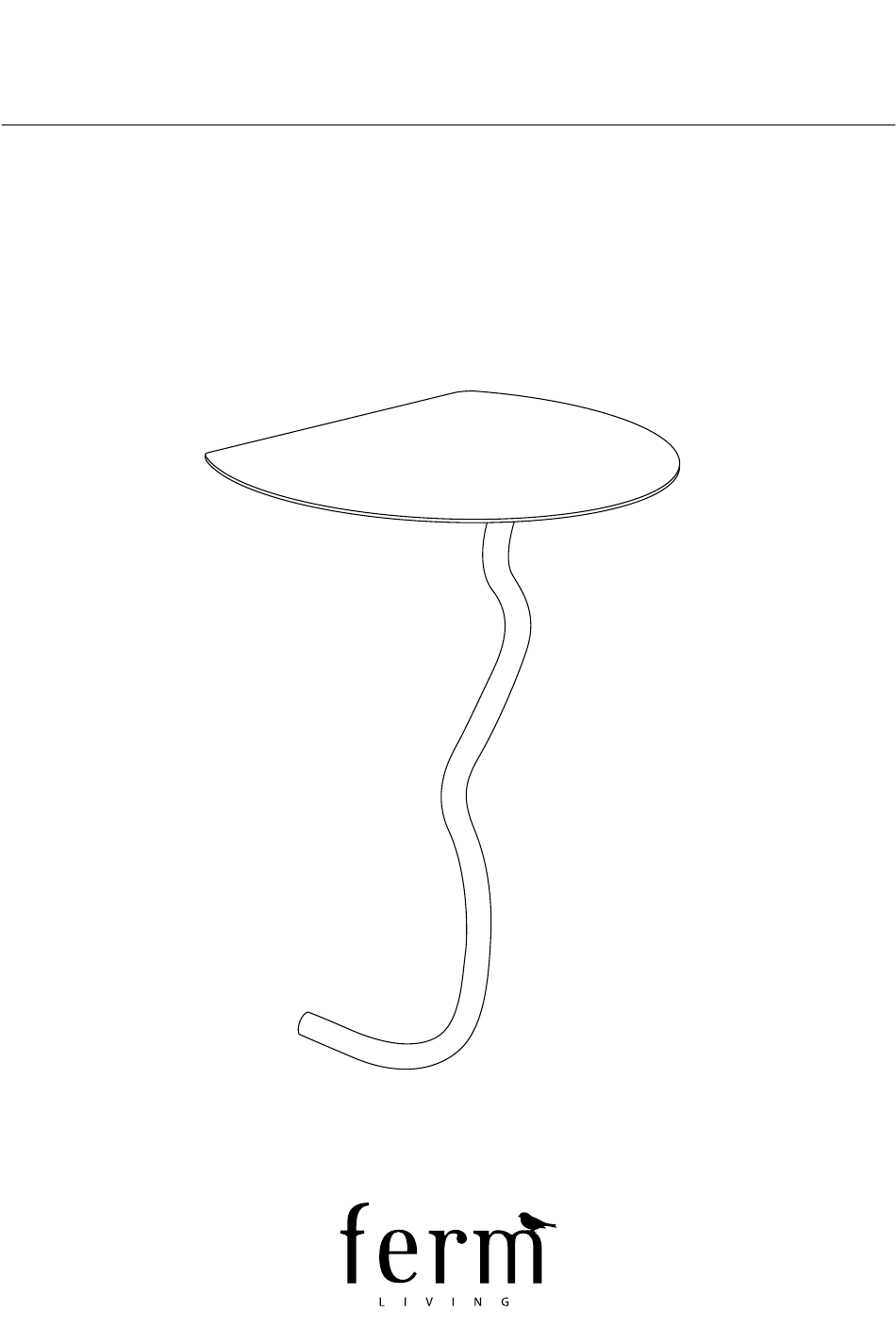

- Page 1 Curvature Wall Table Assembly manual...
- Page 2 Box Content Assembly Process 1 x Wall bracket (A) 1 x Allen key 2 x M4 Screws (B) 1 x Table Drill hole Wall bracket (A) 3 x Wallplugs Tools NEEDED TOOLS RECOMMENDED TOOLS Find your position of the table on the wall. Mark and drill hole for bottom wall bracket.
- Page 3 Assembly Process Assembly Process (Recommended tools) Use spirit level Drill hole Drill hole Loosen the pinion screw and place the table on the Tilt the table into the correct position. Mark and drill the two holes. wall and the wall bracket. Use the Allen key . Mount the table with two wall plugs and screws (B).
- Page 4 Assembly Process fermliving.com Screw in the pinion screw. Use the Allen key .
