User's Manual
Wuxn WXR 3D Printer
Wuxn LLC
www.wuxn3d.com
Version 1.0.0
Proudly Designed &
Made in USA

Advertisement

loading
Need help?

Need help?

Do you have a question about the WXR and is the answer not in the manual?

Questions and answers

Related Manuals for Wuxn WXR

Summary of Contents for Wuxn WXR

  • Page 1 User’s Manual Wuxn LLC www.wuxn3d.com Wuxn WXR 3D Printer Proudly Designed & Version 1.0.0 Made in USA...
  • Page 2 Thank you for purchasing the Wuxn WXR 3D printer. Please take your time to familiarize yourself with this Wuxn WXR User's Manual before using the printer. The User’s Manual provides deeper insight into the unboxing, componentry, calibration, software, maintenance, and printing with the Wuxn WXR.

  • Page 3: Table Of Contents

    Table of Contents Introduction--------------------------------------------------2-5 Unboxing and Assembly---------------------------------6-10 Wuxn WXR 3D Printer----------------------------------11-19 Wuxn Wizards--------------------------------------------20-21 Printer Control-------------------------------------------22-25 Printing-----------------------------------------------------26-29 WuxnSlicer------------------------------------------------30-44 Materials---------------------------------------------------45-54 Maintenance----------------------------------------------55-60 Issues------------------------------------------------------ 61-67 Important Information---------------------------------68-70 For any questions or concerns you might have while using your Wuxn WXR printer, please contact support@wuxn3d.com.
  • Page 4 Do not reach into the operating printer or injury may occur. Do not allow unsupervised children access to the machine. Do not leave the printer powered on while unattended. Never operate the machine without reading the entire contents of the Wuxn WXR User’s Manual and Quick Start Guide.
  • Page 5 For any questions or concerns you might have while using your Wuxn WXR printer, please contact support@wuxn3d.com. Disclaimer: Failure to read the Wuxn WXR User's Manual may lead to personal injury, inferior results, or damage to the 3D Printer. Always ensure that anyone who operates the 3D printer knows and understands the contents of this manual.
  • Page 6 Important: Save the packaging for the future. It is designed specifically to protect the printer while shipping and storing. ★ Wuxn WXR Machine ★ Wuxn Print Surface ★ Wuxn Classic PLA - 1kg ★ Accessories Box ★ Quick Start Guide ★ Quality Assurance Test ★...
  • Page 7 Lift out top protective packaging, dividers, and accessories kit. Lift the Wuxn WXR out of the box and place on a flat and stable surface. Cut orange wire ties holding the extruder. Cut orange wire ties holding the hotbed.
  • Page 8 Accessories Wuxn Classic PLA - 1kg Accessories Box ★ Full Size SD Card ★ Spool Bearing ★ Factory Print ★ 2.5mm Hex Key ★ Spool Subassembly ★ USB Cord ★ Power Cord ★ Flush Cutters Important: Save the packaging for the future. It is designed specifically to protect the printer while shipping and storing.
  • Page 9 Identification Every Wuxn WXR printer undergoes a quality assurance test and receives a unique product label. Verify your unique serial number located on the back left of the machine. Wuxn will reference this information when processing customer service requests.
  • Page 10 Assemble Spool Holder Slide spool rollers onto left spool bracket. Slide right spool bracket into spool rollers. Snap on Spool Holder to the top center of frame.
  • Page 11 Key Components Spool Holder Z Wheel Stoppers Z-Towers Auto-Loading Filament Z Wheels Adjustment Extruder X Belt Tensioner X Gantry AC Plug Slot Power Switch Y Gantry Hotbed Y Belt Tensioner Printing Color SD Card Touch Display...

  • Page 12: Wuxn Wxr 3D Printer

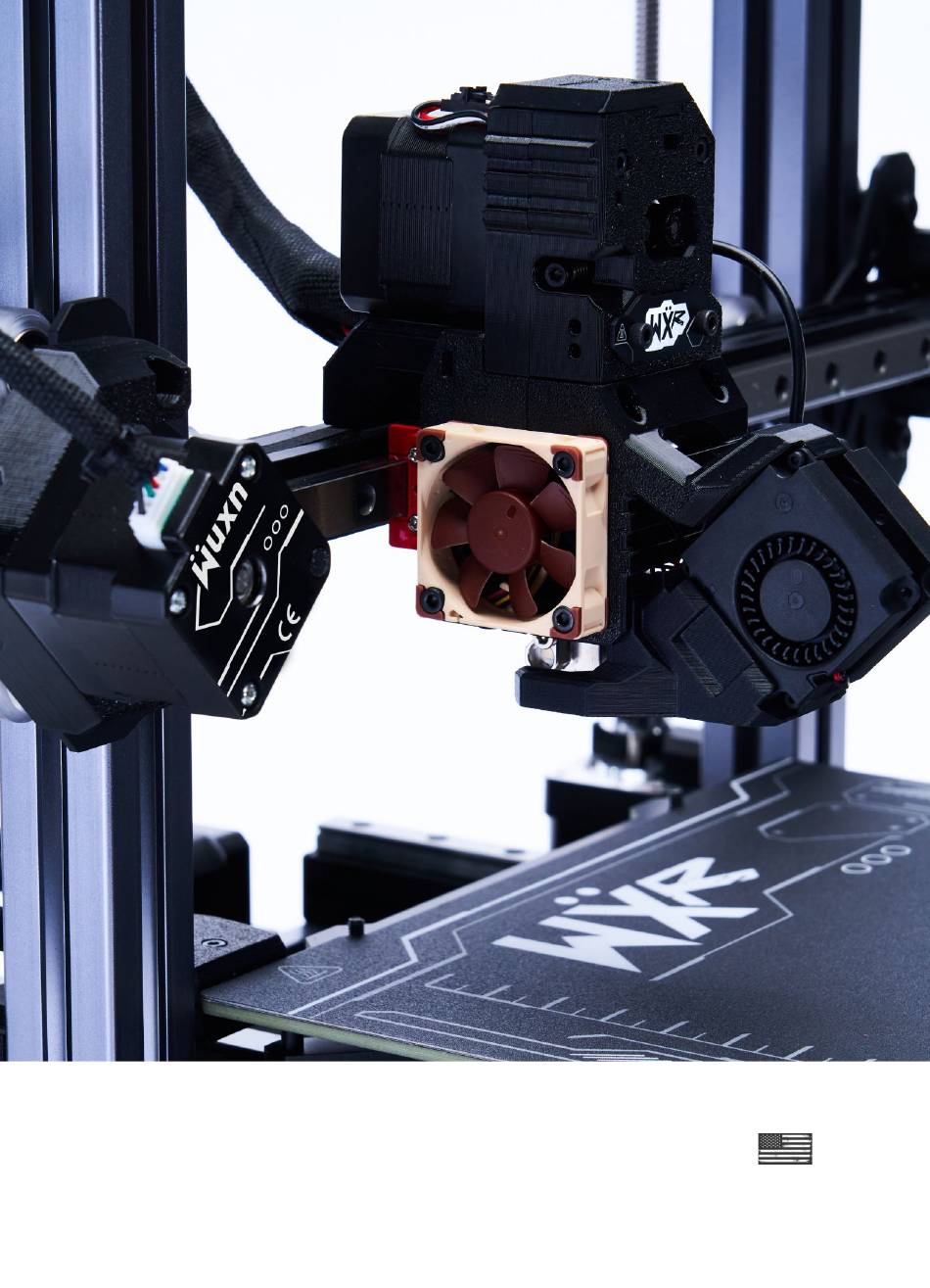

    Nameplate Noctua Hotend Slice Engineering Copperhead Hotend Part Cooling Fans Z Height Probe 0.4mm Nozzle Disclaimer - Wuxn WXR only supports 1.75mm filament. Using another sized filament may damage the Extruder. Hot surfaces while in use. Contact may cause burns.
  • Page 13 Key Components - Hotbed Alignment Tabs Wuxn BuildTak Print Surface Heating LED Indicator Magnetic MK53 Hotbed Disclaimer - Do NOT print on the MK53 hotbed. Attempting to print on the hotbed may damage the surface or nozzle. Hot surfaces while in use.
  • Page 14 Key Components - X Gantry Global Axes Belt Tension Meter Position X Belt Motor Rigid Linear Guide Rail X Belt Tensioner Adjustment Bolts Important - The X belt must be tensioned properly and the linear guide rail must be lubricated regularly.
  • Page 15 Key Components - Y Gantry Global Axes Motor Belt Floating Linear Guide Rail Rigid Linear Guide Rail Y Belt Tensioner and Belt Tension Meter Adjustment Bolts Position Important- The Y belt must be tensioned properly and the linear guide rails must be lubricated regularly. Please see “Maintenance”...
  • Page 16 Key Components - Z Tower Global Axes Z Wheel Stoppers Z Wheels Tensioning Nuts Lead Screws Couplers Z Motors Important - The Z couplers can separate from shipment or abuse. Use the “Set Z” Wizard item to reseat the couplers. Do NOT lubricate lead screws or mating parts.
  • Page 17 Final Inspection Wuxn Classic Filament Spool holder mounted Orange Z stopper and cable tie removed Orange Z stopper removed AC power Wuxn print cable plugged surface attached Orange cable tie removed Important - Have the provided SD card at the ready, but do not insert into the printer yet.
  • Page 18 Auto-Loading Filament 1.75mm Filament Wuxn Gears Cut Wuxn Classic filament tip at a sharp angle (45°). Insert the filament into the top of the Extruder subassembly. The Wuxn gears will automatically start turning and pull the filament into the hotend.
  • Page 19 Unloading Filament To initiate the unloading of filament use the Wuxn WXR TFT display menu: “Menu>Load/Unload>Unload”, then follow the prompts. Important Tip 1 To switch from a high-temperature material to a low-temperature one, set the temperature to the previous nozzle temperature. For instance, unloading PETG at 235 degrees Celsius and loading PLA at 235 degrees Celsius.
  • Page 20 Important: Complete Final Inspection before first power on to avoid damaging the machine. The Out-of-Box Wizard is used to calibrate the Wuxn WXR and will execute when the machine is powered on for the first time. Follow the prompts. Please do not insert the SD card until prompted to do so by the Out-of-Box Wizard.

  • Page 21: Wuxn Wizards

    PID - Calibrate heaters on the hotend and hotbed. E Steps - Guided process to set flow rate (advanced users). Reset - Restore the Wuxn WXR to all factory settings. To initiate the Wuxn Wizards use the Wuxn WXR TFT display menu; “Menu>Wizards”, then follow the prompts.

  • Page 22: Printer Control

    Printer Control The Wuxn WXR can be controlled through the TFT display or a USB cable. The TFT display is the most efficient, quickest, and easiest way to control your 3D printer. However, if you prefer, you can also use a USB cord in combination with free software like Pronterface or a camera system.
  • Page 23 Printer Control Information Menu - This is the main screen that displays the most important information. From here, you can quickly adjust the nozzle temperature, bed temperature, fan speed, print speed, and flow rate. These are the five settings that may need to be adjusted for different filaments.
  • Page 24 Printer Control Main Menu - This screen contains selections for pre-configured filament temperatures, motion control, loading and unloading filament, Wuxn Wizards, and setting machine configurations. Preheats Menu (quickly select 6 different filament temperatures or specific custom values) Movement Menu (Manually jog all axes or disable motors)
  • Page 25 Printer Control Print Menu - This screen is used to start the printing process. The Wuxn WXR is capable of printing with a full size SD card or flash drive of 8, 16, or 32 gigabytes. TFT SD Card Menu (All files stored on full size SD card will be...
  • Page 26 The Wuxn Calibration Cube is printed to confirm dimensional accuracy and print quality of your new Wuxn WXR machine. The Wuxn WXR machine comes with an extra spool roller bearing. Place the bearing into the top of the cube. The bearing should fit snugly and not fall out, due to gravity, when turned upside down.
  • Page 27 Retrieving Print To prevent deformation, it is important to let the Wuxn Print Surface cool down to room temperature before attempting to remove the printed object. To loosen the bond between the plastic and the print surface, try flexing the metal plate a few times.
  • Page 28 Finding There are a number of websites holding thousands of models that can be downloaded and printed on your Wuxn WXR. Here is a list of our favorite websites to visit when finding a new 3D model to print: Free or...

  • Page 29: Printing

    G-code. Once the G-code file has been generated, it must be transferred to the Wuxn WXR printer via an SD card or flash drive to initiate the printing process. The G-code file contains a specific set of instructions for the Wuxn WXR to follow.
  • Page 30 WuxnSlicer is the recommended software for converting 3D objects into specific instructions for Wuxn 3D printers. WuxnSlicer is a derivative of Ultimaker Cura. WuxnSlicer + Wuxn Firmware + Wuxn Filament have been engineered to optimize print performance, quality, strength, and speed.
  • Page 31 Please see our WuxnSlicer Reinstallation Guide further assistance. Wuxn Dark Wuxn Light* *Navigate to Preferences -> Themes and select your preference after installation. WuxnSlicer will then require you to open and...
  • Page 32 Installing WuxnSlicer Double click:WuxnSlicer-2.0.0.exe Select a file path and follow the prompts: Note - this is an example of the Windows 10 installation process.
  • Page 33 Installing WuxnSlicer Follow the prompts: Note - this is an example of the Windows 10 installation process.
  • Page 34 Launch WuxnSlicer WuxnSlicer Icon is added to your desktop. After selecting finish, WuxnSlicer will automatically launch.
  • Page 35 WuxnSlicer Overview Action Bar (Contains settings, software version, and part file name) Machine Settings (A list of Wuxn printers that have various settings such as size, firmware, and start and end G-code) Material Settings (A list of filament settings already optimally...

  • Page 36: Wuxnslicer

    WuxnSlicer Controls This is a list of the basic mouse and keyboard controls when using WuxnSlicer: Left Click - Select Right Click - More Options Scroll Wheel Forward - Zoom in Scroll Wheel Backward - Zoom out Hold Right Click and Move Mouse - Rotate Left Click 3D model and then type T - Move the 3D model Left Click 3D model and then type S - Scale the 3D model Left Click 3D model and then type R - Rotate the 3D model...
  • Page 37 Using WuxnSlicer Step 1 - Select the file icon in the top left, navigate to your file, and then select “open” to import a 3D model into WuxnSlicer. The primary file types that are supported by WuxnSlicer are: 3MF File (.3mf), AMF File (.amf), and STL file (.stl). Note: Importing a .gcode file at this step will only allow for previewing and NOT slicing.
  • Page 38 Step 2 - Use the model manipulation tools to move, scale, rotate, mirror, add per model settings, or add support blockers if needed. Example, Wuxn Calibration Cube.stl: ❏ Left click the 3D model, select “Rotate”, select “face to align to build plate”, and then select the bottom face of the cube.
  • Page 39 Step 3 - In the Materials Settings tab, select the material you want to use for printing. Note: When using filaments that are not from the Wuxn brand, it is recommended to select the Generic Material profile as it usually produces satisfactory results. However, if the filament is...
  • Page 40 Strong: This profile produces a strong 3D part but takes the longest time to print. GoTo: This is the standard profile commonly used by the Wuxn team. It offers a balance of moderate speed, high print quality, and reliability.
  • Page 41 Using WuxnSlicer Step 5 - Select the “Slice” option to create a G-code file. This file will include a tool path for your Wuxn WXR 3D printer to follow. Use the 'Preview' window to view the G-Code and confirm that the slicing matches your expectations, particularly for the first layer.
  • Page 42 Wuxn WXR. The Wuxn WXR is compatible with 8GB, 16GB, and 32GB SD cards or USB drives. Transport SD card with the .gcode file to your Wuxn WXR and insert into the TFT display, and the printer will automatically display the file.
  • Page 43 WuxnSlicer Tips How do I print larger models? To print larger models, break them down into smaller parts and connect them using fasteners, joints, or adhesives. Utilize WuxnSlicer to divide the model by positioning it below the build surface. Select the 'Slice' option to generate a G-code for one portion of the model, then repeat the process for the remaining parts.
  • Page 44 WuxnSlicer Tips What is Support Material? As a 3D part is printed layer-by-layer the filament must be supported or it will fall due to the force of gravity. We can enable Support Material as a sacrificial part to “prop up” the geometries that form bridges or overhangs. WuxnSlicer automatically pinpoints the areas of your 3D model that require support material, and highlights them in red for easy identification.

  • Page 45: Materials

    Materials In FDM (Fused Deposition Modeling) 3D printing, filaments are the thermoplastic materials that are used as the "ink" for the printer. The filament is loaded into the printer and is melted by a heating element, and then extruded through a nozzle to build up the object layer by layer.
  • Page 46 Materials PLA (Polylactic Acid) PLA is a biodegradable thermoplastic polymer made from natural resources such as corn starch, sugarcane, or other types of starch. PLA is the most widely used filaments in 3D printing because it is easy to use and produces high-quality prints. PLA filament is non-toxic, has a low melting point, and produces minimal odor when printing.
  • Page 47 Materials PETG (Polyethylene terephthalate glycol) PETG is a type of thermoplastic polymer filament that is commonly used in 3D printing. It is a strong, durable, and has high thermal resistance. One of the main advantages of PETG filament is its strength and flexibility. It is stronger than PLA and is also more flexible, which makes it a good choice for parts that need to withstand high stress and pressure.
  • Page 48 Materials (Acrylonitrile Styrene Acrylate) ASA is a thermoplastic filament that is becoming more popular. It is known for its weather resistance, high UV resistance and high impact strength. ASA has similar printing characteristics to ABS but with improved resistance to environmental factors such as sunlight, heat, and moisture.
  • Page 49 Materials ABS (Acrylonitrile Butadiene Styrene) ABS filament is known for its toughness, strength, and heat resistance. It is a good choice for various 3D printing applications including toys, phone cases, and automotive parts. However, ABS filament is known to produce unpleasant odors during printing. Also, ABS filament is difficult to print with because it is prone to warping and layer separation.
  • Page 50 Materials (Thermoplastic Polyurethane) TPU filament is a type of flexible and durable thermoplastic material. It is known for its high elasticity, impact resistance, and toughness. It is often used to create flexible parts such as phone cases and footwear components. TPU filament is also resistant to oils, chemicals, and UV light, making it a versatile material for a range of applications.
  • Page 51 Materials PA (Polyamide) Polyamide (PA) filament, also known as Nylon filament, is a thermoplastic material commonly used for 3D printing. It is a strong and durable material that is often used for industrial applications where high strength and impact resistance are required.
  • Page 52 Materials PC (Polycarbonate) PC filament is a strong thermoplastic characterized by its excellent impact resistance, high rigidity, heat resistance, and fire retardancy. It is ideal for harsh environments where materials are put to the test, meaning it can withstand extreme temperatures and pressures.
  • Page 53 It's worth noting that composites can be more abrasive and wear out your brass nozzle faster. We suggest upgrading your Wuxn WXR to a hardened steel nozzle to mitigate this. Some examples of composite materials are: PLA carbon fiber-reinforced - This material will print just like traditional PLA but offer improved strength.
  • Page 54 Material Storage Moisture from the air can affect 3D printing filaments, leading to brittleness, increased stringing, and voids in printed parts. For best results, store filament in a dry box with vacuum sealing, desiccants, and optional heating. If a dry box is not available, an oven can be used to heat the filament and remove moisture.
  • Page 55 Maintenance & Care Every Wuxn WXR is thoroughly inspected, fully assembled, and tested prior to shipment to ensure that it is ready to run straight out of the box. However, all mechanical systems will degrade over time and maintenance is required to keep your 3D printer functioning properly.
  • Page 56 Maintenance & Care Linear Guide Rail Lubrication The second most common item thats needs regular maintenance is the X and Y linear guide rails. It is best practice to lubricate the linear guide rails every 2-3 months with low viscosity oil. We highly recommend using Lucas Extreme Duty Gun Oil because of its low viscosity and needle nozzle applicator.
  • Page 57 Maintenance & Care Adjusting Belt Tension For best performance of the Wuxn WXR, certain belt tensions are required. Improper belt tension will result in layer shifting, ringing, or inconsistent sensorless homing. The belt tension for both the X and Y axis should be checked every 3-4 months.
  • Page 58 Maintenance & Care Z Wheel Tensioning The Z-axis motion of the Wuxn WXR is achieved with six “V” wheels. The inner wheel on each side has an eccentric nut that is used to adjust the tension. Use a 10mm wrench and turn this nut until you are just able to move that wheel smoothly with your finger.
  • Page 59 Maintenance & Care Replacing the Nozzle The Wuxn WXR comes standard with a 0.4mm brass nozzle. This nozzle will wear down over time and reduce the print quality. The nozzle should be replaced after printing with 100 - 200 kg of filament. When printing with composite materials we recommend upgrading to a hardened steel nozzle.

  • Page 60: Maintenance

    Maintenance & Care Wuxn Gears Maintenance Over time filament shavings and other contaminants can accumulate on the Wuxn gears. These contaminants degrade print performance. The gears should be cleaned after printing with 100 - 200 kg of filament. Wuxn Gears Tensioning and Cleaning Process ●...

  • Page 61: Issues

    This will result in a “wavy” like extrusion of filament. Solution: Use the Wuxn Wizard items “PID” and then “E-Steps” to calibrate the temperature and flow rate. This list is not exhaustive of all the print quality issues that may arise.
  • Page 62 Print Quality Issues ● Over-extrusion: This occurs when the printer extrudes too much filament, resulting in the printed object having thicker layers than intended. Solution: It can be caused by the extrusion multiplier being set too high, or by the nozzle being too close to the build plate. ●...
  • Page 63 Common Mechanical Issues Lead Screw Separation An issue that may occur with the Wuxn WXR is “lead screw coupler separation”. The lead screw coupler is composed of three components that may separate during shipment due to excessive forces and vibration. Under normal conditions the lead screw coupler has an air gap of 0.5-1 mm gap between the three...
  • Page 64 Incorrect Nozzle Height Nozzle height also referred to as Z height is the distance between the nozzle and the print surface. From the factory the Wuxn WXR Z height is set to -1.0mm and this refers to the zeroth position.
  • Page 65 Common Mechanical Issues Homing Malfunction The Wuxn WXR determines the starting point for the X, Y, and Z axis by homing. Typically, this is established in the X and Y directions by briefly touching the printhead and print surface with the end stops.
  • Page 66 Load the filament and purge the new material at 285°C to push out any remaining filament. If the problem persists, it means the Wuxn WXR hotend is fully clogged and needs to be disassembled and cleaned. For more information on how to...
  • Page 67 Multiple layer shifts is caused by too much force on said axis, causing the stepper motors to lose steps. How to Fix? Do not touch or grab any of the components on the Wuxn WXR while ● printing. ●...
  • Page 68 Accessories Enhance the performance of your Wuxn WXR with our accessories. Speed up printing by upgrading your nozzle diameter from 0.4 mm to 0.6 mm. If your printed parts lack strength, consider switching to a different material. To alter the pattern of your first layer, try using a different print surface.
  • Page 69 The Wuxn WXR firmware, software, and 3D printed components have been made open source and are available for download. Access our Github pages to change the color of your Wuxn WXR, fix broken printed parts, or build and compile the code. https://github.com/wuxn3d/Wuxn_Firmware ●...
  • Page 70 60 days of purchase. What is not Covered ● Wuxn shall not be liable for costs of replacement of a product incurred as a result of: accidental damage, faults caused by negligent use or care, misuse, careless operation or handling of the product which is not in accordance with this Quick Start Guide or User’s Manual.
  • Page 71 Notes: Wuxn LLC www.wuxn3d.com info@wuxn3d.com support@wuxn3d.com...
