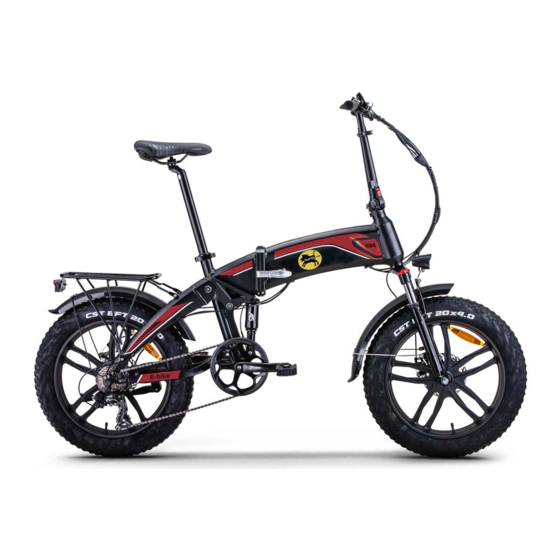

#99073 Quick Operation Guide
Please regularly check your E-Bike for a ride-ready condition.
This includes tight spokes, inflated tyres and responsive brakes.
Although we check the E-Bikes before shipping, we strongly advise you check the above on the Bike prior to riding for
the first time.

1. Battery Charging

The battery must be removed to charge
To remove the battery – open the locking mechanism on the centre of the frame – the same
lock as if you were folding the bike and fold the bike to expose the battery door.
Press the red switch to turn the battery power off
Insert the key and turn to release the battery to slide out.
Plug the charger into the battery port to charge.
Please ensure you regularly charge the battery to prolong lifespan. Do not overcharge.
Regular charging / discharging will keep battery in best form.

2. Assembly

Carefully lift the bike out of the box.
Slot the battery into the space into the frame and lock with the key
Unfold the bike to complete the frame and lock the central locking pin in place. Some
adjustment may be needed to get the locking clasp to fit properly – this can be done by
rotating the locking clasp clockwise / counter-clockwise to tighten / loosen.
This should be a snug fit, but not forced in. If the central frame or locking clasp has
movement once locked, it will need tightening.
Once the mid-section is locked in place, bring the handlebar stem up into position and lock
with the locking clasp. Finally, adjust the saddle and handlebar height with the relevant
locking clasps, and then unfold the pedals. To fold the pedals back in, squeeze the trigger
inside of the pedals and fold in at the same time.

3. Motor Starting

Ensure battery is switched to ON position (This can be found inside the frame when the bike
is folded)
Press and hold power button on the control panel for one second.
When the display illuminates, the bike is switched on.

4. Controls

To switch front light on, press & hold the PLUS button (above the power button) for 1
second. Repeat the turn light off.
Assist levels range between 0 (no assistance) & 5 (maximum assistance) – use the up and
down keys when the bike is switched on to cycle through the appropriate levels.
3 is a good balance of power and energy conservation.

5. Suspension

Front suspension forks can be engaged / locked by turning the red wheel on the suspension
fork clockwise / counter clockwise.
6. Tyre Pressure: We recommend between 20-25 PSI.
If your bike has been subjected to a lot of mud / water, please remove the battery as soon as possible
and wipe away any excess dirt / moisture that has accrued near the battery terminals.
