Summary of Contents for AVCLINK HS-81

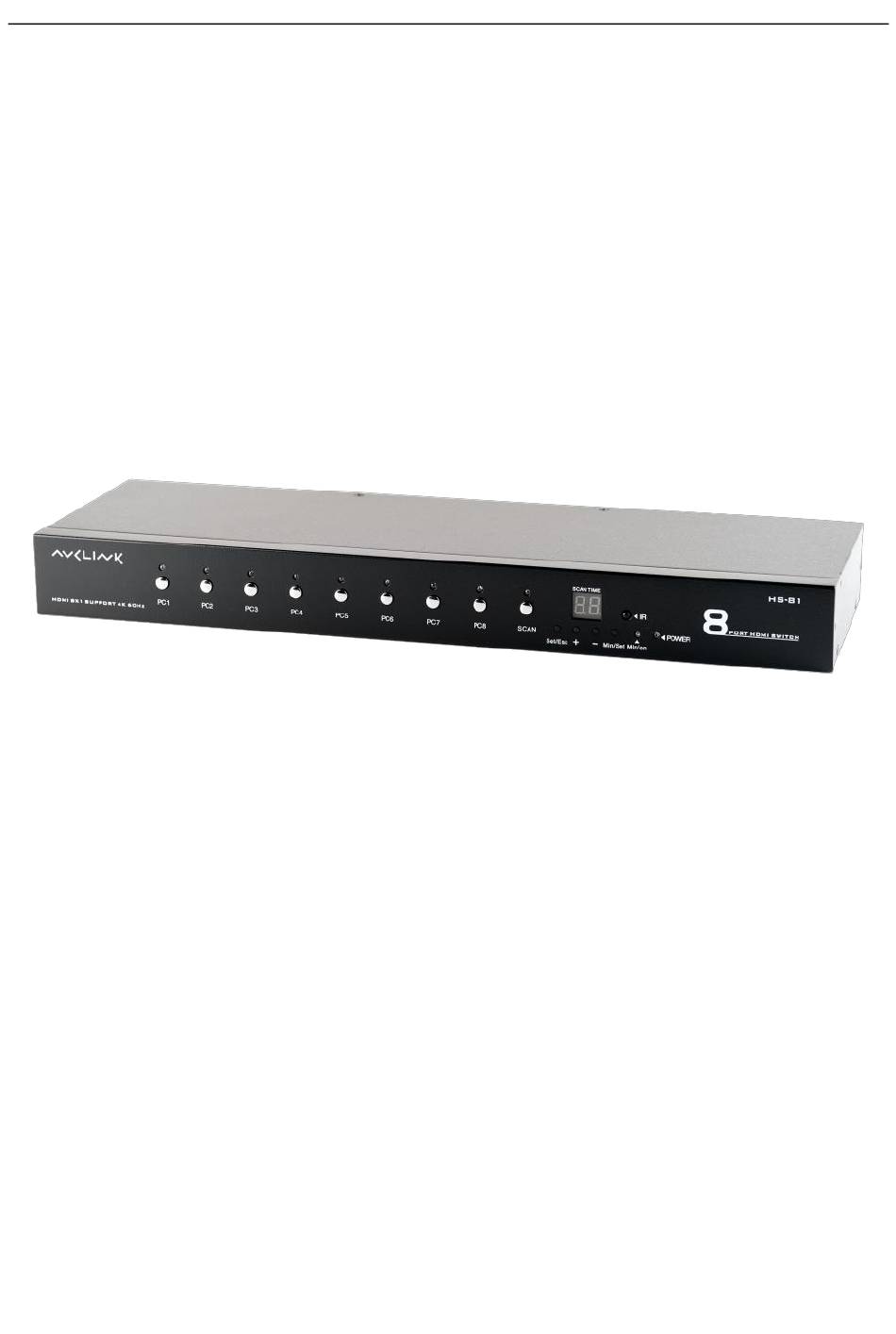

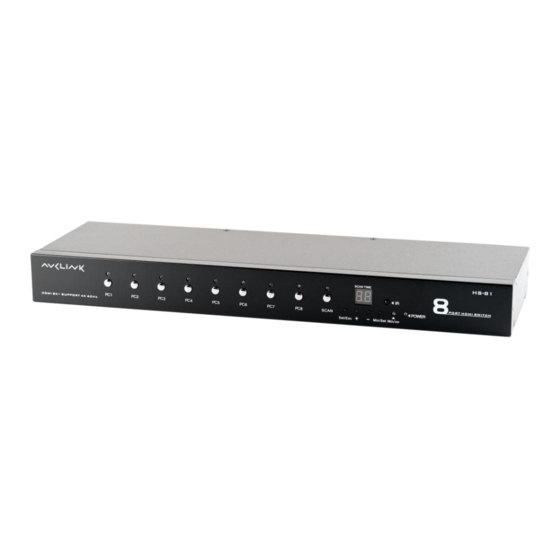

- Page 1 AVCLINK HS-81 User manual AVCLINK HS-81 4K60 HDMI switcher 8x1 User manual...
- Page 2 AVCLINK HS-81 User manual Table of contents Introduction ................................. 3 Features .................................. 3 Package Contents .............................. 3 Specifications ..............................4 Connection diagram ............................5 IR Remote ................................6 Operation Controls and Functions ......................6 1. Introduction...
- Page 3 AVCLINK HS-81 User manual AVCLINK HS-81 is a 18Gbps HDMI 8x1 Switcher that can connect 8 HDMI signal sources to an HDMI display. It supports the resolution up to 4K (4096*2160@60Hz 4:4:4), data rate 18Gbps, 3D, color depth up to 12 bits, and distortion-free audio format. The 8 port HDMI auto switch is equipped with an automatic switching mode, which can provide the convenience of automatic switching of signals and an instant switching function, allowing users to easily switch between HDMI signal sources.
- Page 4 AVCLINK HS-81 User manual 4. Specifications Technical 8 port auto HDMI switch Function Video Input Interface 8 x HDMI Type A Female Resistance 100Ω 3m (4K 60Hz signal) Max. distance 1x HDMI Type A Video Output Interface 100Ω Resistance 3m (4K 60Hz signal) Max.
- Page 5 AVCLINK HS-81 User manual 5. Connection diagram...
- Page 6 AVCLINK HS-81 User manual 6. IR control 7. Operation Controls and Functions Control Controller Method Panel, IR remote, RS232 Controller port RS-232 1x DB-9 female Interface 9600 Baud rate Data bits Stop bits None Parity None Flow control 2=TX, 3=RX, 5=GND...
- Page 7 AVCLINK HS-81 User manual Serial code: Output select in1: 0xa5 0x5a 0x00 0xcc Output select in2: 0xa5 0x5a 0x01 0xcc Output select in3: 0xa5 0x5a 0x02 0xcc Output select in4: 0xa5 0x5a 0x03 0xcc Output select in5: 0xa5 0x5a 0x04 0xcc...
