Summary of Contents for AVCLINK P20

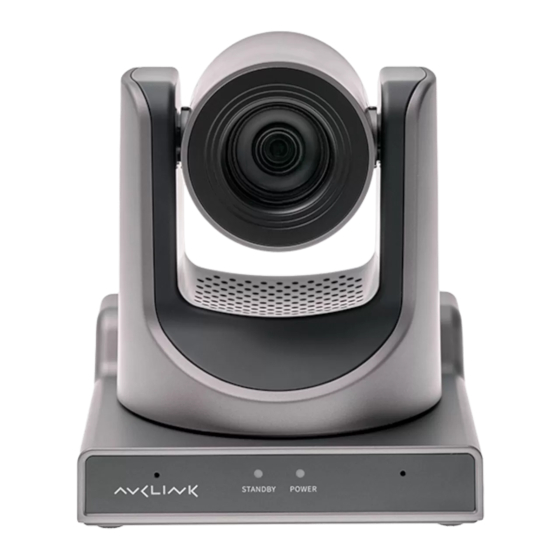

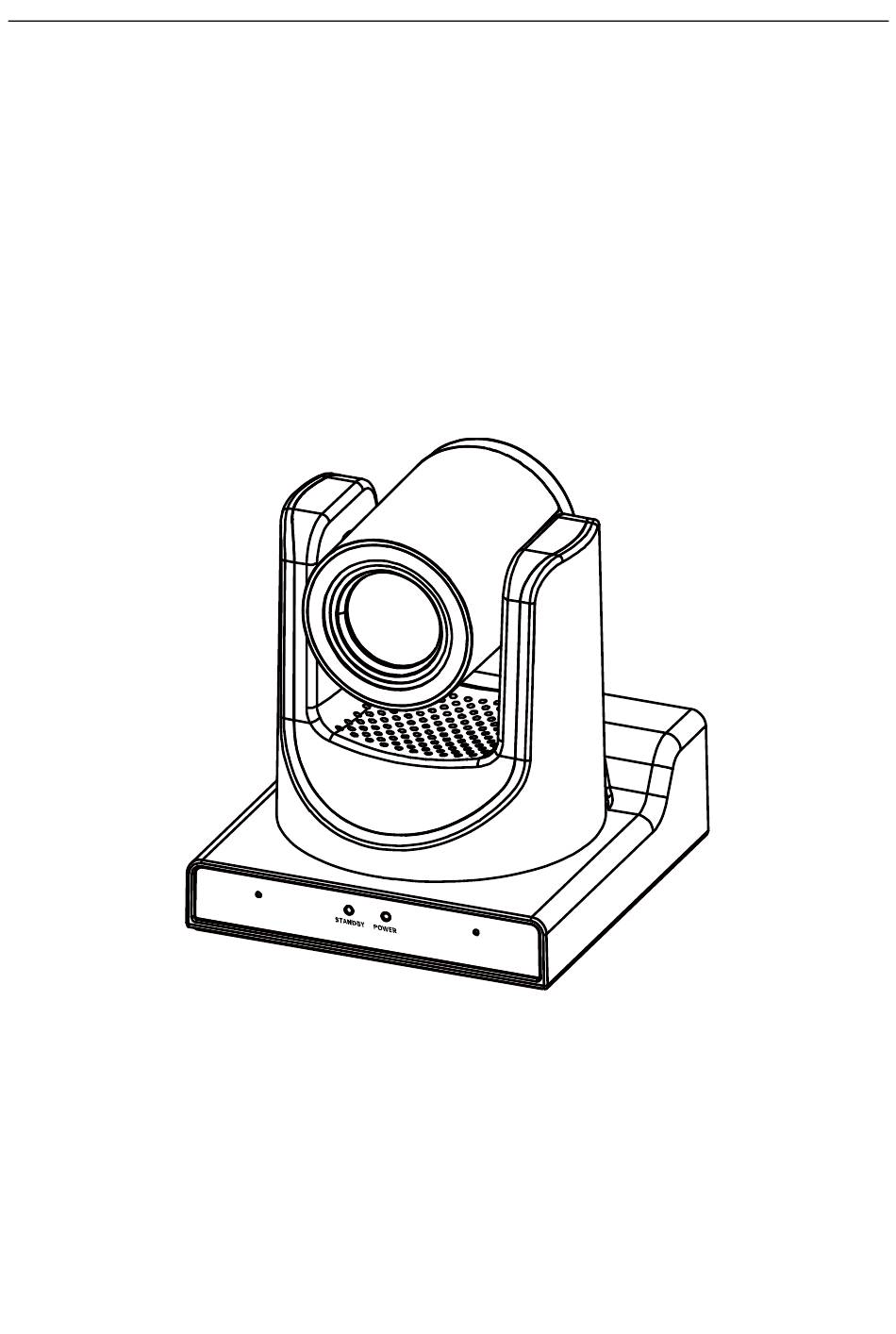

- Page 1 AVCLINK P20 User Manual AVCLINK P20 Smart PTZ Camera User Manual...
- Page 2 AVCLINK P20 User Manual Notice Product specifications and information which were referred to in this document are for reference only. We may change, delete, or update any content at any time and without prior notice. FCC NOTICE (Class A) This product complies with Part 15 of the FCC Rules. The operation is subject to the...
-
Page 3: Table Of Contents
AVCLINK P20 User Manual Catalogue Safety Precautions ..............................1 Packing List ................................1 Quick Start ................................1 Video Format ................................2 About Product ................................ 2 Features ....................................2 Specifications ..................................2 Interface and Switch ................................. 4 Dimension ..................................... 4 Installation ................................... 5 Remote Control ................................... -
Page 4: Safety Precautions
AVCLINK P20 User Manual noises, please turn off the power Safety Precautions immediately and unplug the power cord, and contact the dealer in time. ⚫ During the installation and use of the ⚫ This device is not waterproof, please keep equipment, all electrical safety regulations of the device dry. -
Page 5: Video Format
AVCLINK P20 User Manual 2) Connect the power adapter to the power video conferencing, live broadcasting, connector on the rear panel of the camera. broadcasting and other industries. The power indicator on the front panel of ⚫ Upgraded AI Technology the camera is on. - Page 6 AVCLINK P20 User Manual Effective pixels: 2.07M UVC PTZ Control Support Scanning Mode Progressive Network Features 20x, f = 4.42mm ~ 88.5mm, Video Lens H.264/H.265 F1.8 ~ F2.8 Compression First Stream, Digital Zoom Video Stream Second Stream Minimum 0.5 Lux @ (F1.8, AGC ON)
-
Page 7: Interface And Switch
AVCLINK P20 User Manual 5.4 Dimension Power Jack JEITA type (DC IN 12V) Ø70.7 General Specifications Input Voltage DC 12V Input Current Max. 1.2A Operating 0°C ~ 40°C Temperature Storage -40°C ~ 60°C Temperature Power Max. 15W Consumption Dimension 146mm x 169mm x 168mm Net Weight About 1.5Kg... -
Page 8: Installation
AVCLINK P20 User Manual 5.5 Installation The installation diagram is for reference only. The brackets and screws are not standard. Note For packing accessories, please refer to the actual product. -
Page 9: Remote Control
AVCLINK P20 User Manual 6. Return Key 5.6 Remote Control Press to return to the previous menu 7. ZOOM Key SLOW: Zoom In [+] or Zoom Out [-] slowly ⚫ FAST: Zoom In [+] or Zoom Out [-] fast ⚫... -
Page 10: Gui Settings
AVCLINK P20 User Manual Bright Priority. GUI Settings Flicker: Off, 50Hz, 60Hz (Effective only in Auto, 6.1 Menu Iris Priority, Bright Priority mode). Expcomp Mode: On, Off (Effective only in Auto, Press [MENU] key to display the main menu on the normal screen, using arrow key to move the Iris Priority mode). -
Page 11: Image
AVCLINK P20 User Manual One Push mode). 6.5 Display B-Gain: 0~1023 (Effective only in Manual, Move the main menu cursor to [Display], and One Push mode). press [HOME] key enter the display page, as R-Tuning: -128~128 (Effective only in Auto, shown in the following figure. -
Page 12: Setting
AVCLINK P20 User Manual only in Focus Limit to On). AF: Display the camera autofocus version LR Mode: STD, REV. number. Motion Sync: On, Off. Date: Display the burning date of the main Horizontal Speed: 0~23. program version of the camera. - Page 13 AVCLINK P20 User Manual Zoom A. Video Viewing Window Zoom In and Zoom Out buttons allow for wide Video viewing window must be same as video or narrow view of the space. resolution, the bigger the resolution is, the Focus bigger the playing area is.
-
Page 14: Video Settings
AVCLINK P20 User Manual the image. However, the configuration of the bit 7.3 Video Settings rate needs to be combined with the network Video Settings bandwidth. When the network bandwidth is Frac Rate narrow and the bit rate is configured larger, the... -
Page 15: Audio Settings
AVCLINK P20 User Manual Brightness 7.6 System Settings Brightness of image: 0~99 (Default value is 50). Saturation Saturation of image: 0~200 (Default value is 100). Contrast Contrast of image: 0~99 (Default value is 50). Sharpness Sharpness of image: 0~99 (Default value is 20). -
Page 16: Ndi® Settings
AVCLINK P20 User Manual D. UDP Port RTMP(S) Settings Support UDP protocol, default port: 1259. First Stream E. Sony Visca rtmp://192.168.100.138/live/stream0 Support Sony Visca, default value: 52381. Second Stream RTMP(S) Settings rtmp://192.168.100.138/live/stream1 Turn On/Off first stream or second stream, SRT Settings setting the MRL of RTMP. -
Page 17: Device Information
AVCLINK P20 User Manual ⚫ Unable to access camera through Browser 7.9 Device Information 1) Using PC to access the network to test Information whether the network access can work Device ID HD Camera properly, first of all, the network fault Device Type V.F1...
