- Page 1 Manual C2C caberQU v2.5k USB C to USB C cable tester caberqu.com...
-
Page 3: Safety Notes
Keep out of reach for children. Do not touch the device with anything electrically conductive. Do not connect the C2C caberQU cable tester to any kind of other device. Never connect the device to a live wiring. ... -

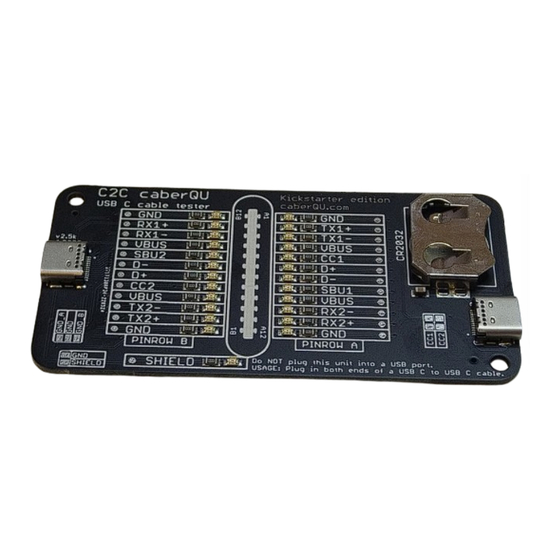

Page 4: Device Overview
2. Usage Battery insertion Only use 3V CR2032 batteries. Insert a fresh CR2032 battery carefully and fully into the holder. The positive contact (+) needs to be on top. 3. Device overview 12x electrical test point 12x LED 12x electrical test point 12x LED Battery... - Page 5 4. Measurement Insert both ends of a USB C to USB C cable into the C2C caberQU. This will make each LED which has any of the pins of connector II connected to connector I light up. Pins which have a resistor attached in the cable internally will make the corresponding LED light up less intense.
- Page 6 5. Useful LED combinations The LEDs for the corresponding pins need to light up to make sure the desired mode is available. Please note that shorted pins, diodes, active electronics or other faults/things inside the cable can provide false results. Options A and B are for the two possible connector I orientations and can be inverted by flipping the cable at connector I.
- Page 7 C2C caberQU USB Power Delivery Option A: V | GND | CC1 | Shield Option B: V | GND | CC2 | Shield USB 2.0/1.1 Option A: V | GND | D+ | D- | Shield USB 3.0/3.1/3.2/4 Single lane (3.0/3.1)
- Page 8 6. USB C connector summary First high speed Second high speed data: USB 3/4 data: USB 3/4 or Alternate Mode USB 2 data or Alternate Mode Sideband, not used for USB TX1+ TX1- VBUS SBU1 VBUS RX2- RX2+ RX1+ RX1- VBUS SBU2 VBUS...
- Page 9 C2C caberQU 7. Schematics...
-
Page 11: Warranty
Alternatively you can contact us directly: Peter Traunmüller eU, Arnleitnerweg 13, 4020 Linz, AUSTRIA, Tel: +4369981148006, E-Mail: info@caberqu.com, Web: caberqu.com We as the manufacturer are not liable for damages to persons or property caused by improper installation or ... -
Page 12: Technical Data
With the CE sign we ensure, that the product conforms to the basic standards and directives. Peter Traunmüller eU Arnleitnerweg 13, 4020 Linz, AUSTRIA E-Mail: info@caberqu.com Tel: +43 699 811 4800 6 Web: caberqu.com...
