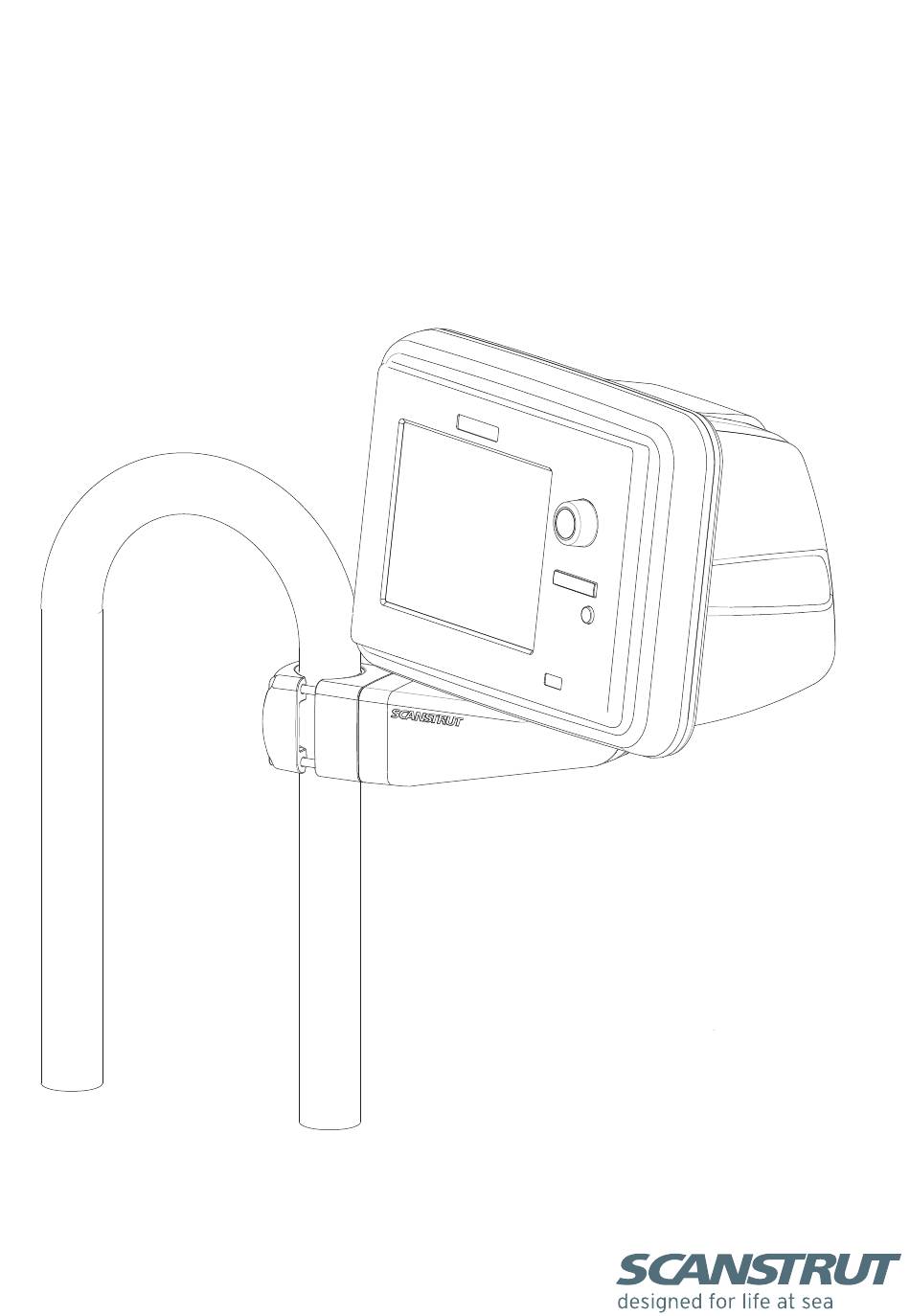

- Page 1 Scanstrut Scanpod Installation Instructions SPR-7-AM / SPR-7S-AM/SPR-8-AM 7/8“ Arm Mount Helm Pod ®...
- Page 2 15-12-17 Issue E Tools Required Parts List Pod Back 60548 SP-ARM Jigsaw/Spiral 60513 Hole Saw ø20 or 25mm (25/32" or 1”) 60546 Pod Front 60536 Power drill 60549 60535 Posidriv No. 3 Screwdriver Bracing Plate 60513 10265 4mm Allen Key 60546 Fully tighten to lock 3mm Allen Key...
- Page 3 Arm Mounted Pod - Ultra Compact - Up to 7” displays (SPR-7S-AM) 170mm Ø295mm (6.7”) (11.6”) When Arm Clamp set at angle Pod can be rotated to suit. 275mm (10.8”) 317.5mm (12.5”) 240.0mm (9.4”) 30° Max cut-out area Arm can be rotated & set 218.0mm for angled rails (8.5”)
