Aplus S-90D Operating Instructions And Parts Manual

Framing nailer
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual

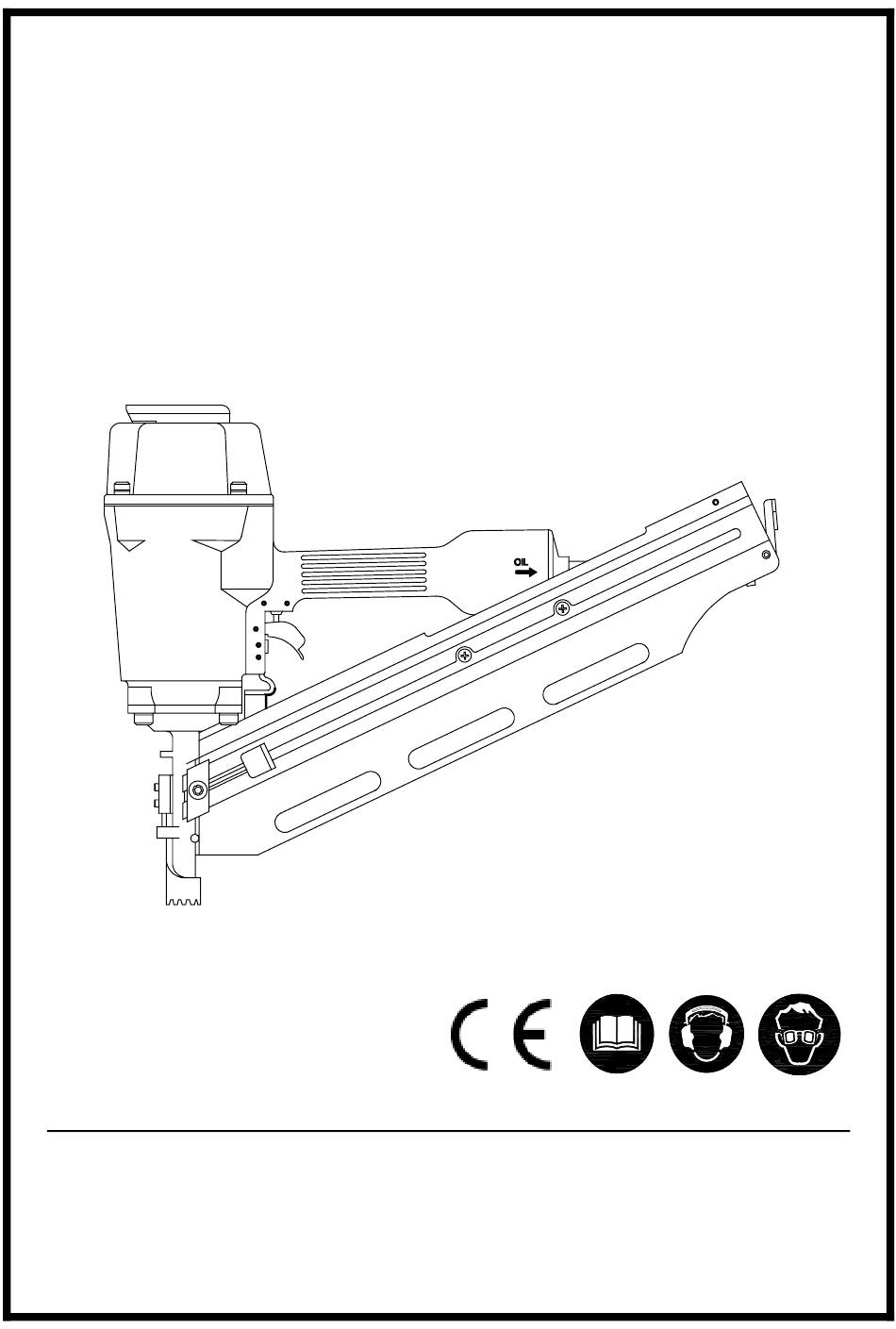

OPERATING INSTRUCTIONS AND PARTS MANUAL
MODEL S-90D
Framing Nailer
CAREFULLY READ THIS MANUAL BEFORE OPERATING TOOL
APLUS Pneumatic Corp.
NO.579, SEC. 1, SHEN LIN RD., TAYA,TAICHUNG CITY 428 TAIWAN, R.O.C.
Tel: 886-4-25602860 Fax: 886-4-25602859
Original instructions
