Etlin-Daniels STL54S Installation Manual

INSTALLATION MANUAL FOR STL54S LED STRIP FIXTURE
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
WARNING
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION.
• To reduce risk of death, personal injury or property damage from fire, electric shock,
falling parts, cuts / abrasions, and other hazards read all warnings and instructions
included with and on the fixture box and all fixture labels.
• Before installing, servicing, or performing routine maintenance upon this equipment,
follow these general precautions.
• Commercial installation, service and maintenance of luminaires should be performed by a
qualified licensed electrician.
• For the installation: If you are unsure about the installation or maintenance of the luminaires, consult a
qualified licensed electrician and check your local electrical code.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.

INSTALLATION INSTRUCTION

SURFACE MOUNTING

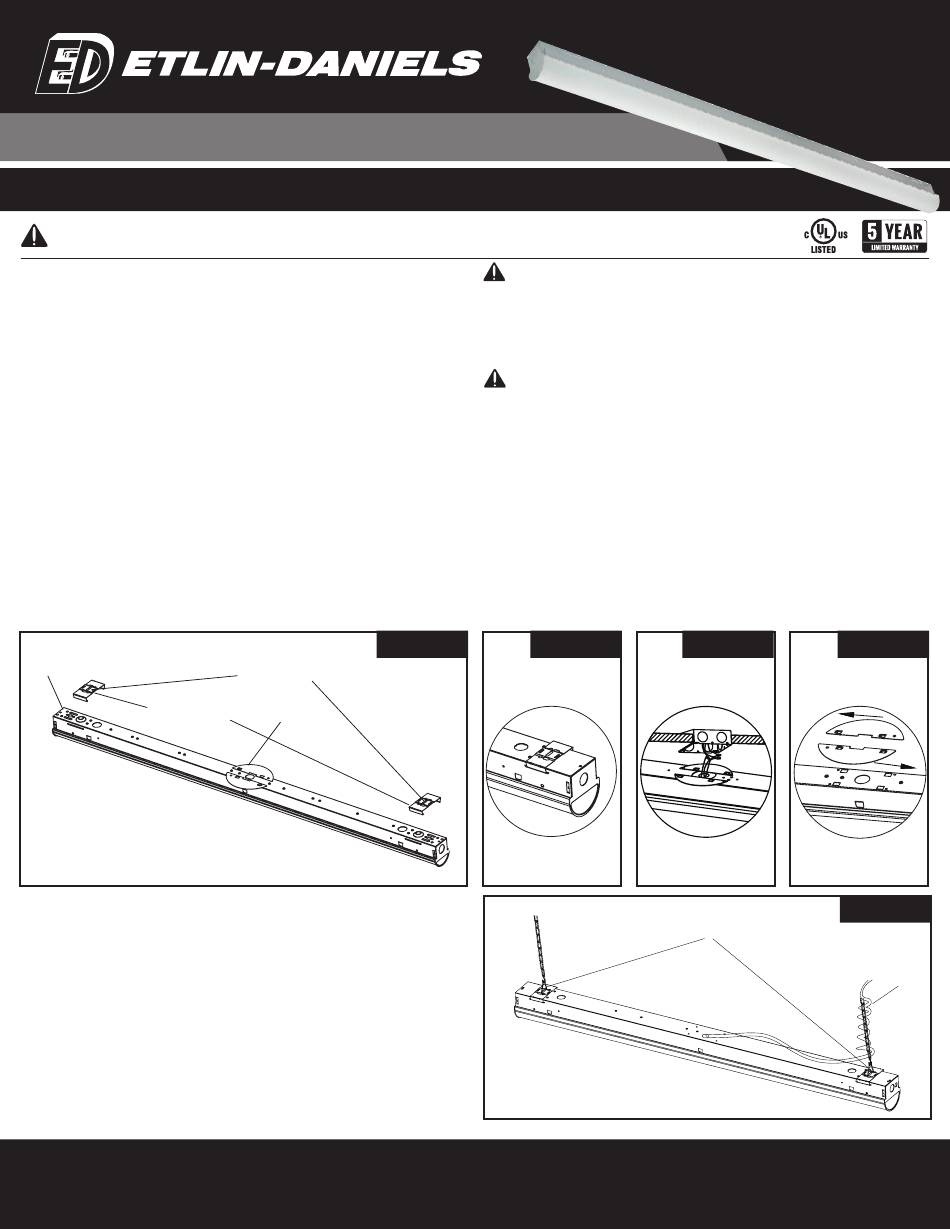

1. Securely mount the Mounting brackets directly to a sturdy surface using the correct mounting hardware through the Drill Locations, (2 places minimum). See Fig.1 .
2. Lock the tabs into the opening,then push the cover to the right and left respectively. See Fig.1a.
3. Pull supply wires through the outlet,use correct UL rated wire connectors as required by the National Electric Code to make electrical splices to fixture leads. See Fig.1b.
4. Then clip the brackets to the slots of fixture. See Fig.1c.
WARNING: To prevent wiring damage or abrasion, do not expose wiring to sharp objects.
Housing
Mounting brackets

SUSPENDED MOUNTING

The fixture can be mounted using V-Hooks
1. Clip the mounting brackets to the slots of fixture.
2. Attach supplied V-Hooks to brackets, then attach customer
supplied chain to the V-Hooks and mounting surface. See Fig.2.
3. For electrical wiring, follow steps 3 above.
FIG. 1
Drill Locations
J-Box cover
(Accessory)
Head Office - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104
Toll Free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com · For sales/service questions - sales@etlin.com
CAN ICES-005 (B) NMB-005 (B)
WARNING
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label information.
• All wiring connections should be capped with UL approved wire connectors.
CAUTION
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be hazardous to children.
• Risk of burn. Disconnect power and allow fixture to cool before changing bulb or handing fixture.
FIG. 1A
Chain
FIG. 1B
V-Hooks
FIG. 1C
FIG. 2
Cord
