WASHING MACHINE
WASHING MACHINE
WA13R3Q3IW/YGG
WA15R3Q3IW/YGG
CONTENTS
1. PRECAUTIONS FOR SAFETY DURING
SERVICING
2. TECHNICAL POINT
3. SCHEMATIC AND PCB DIAGRAM
4. HIGHLY IMPROVED STRUCTURE
5. TROUBLE DIAGNOSIS
6. HOW TO DISASSEMBLE
7. EXPLODED VIEW & PARTS LIST

Advertisement

loading
Need help?

Need help?

Do you have a question about the WA13R3Q3IW/YGG and is the answer not in the manual?

Questions and answers

Ali
June 4, 2025

كيف ارفع صوت موسيقى الازرار لانها اصبحت واطئه فجاه

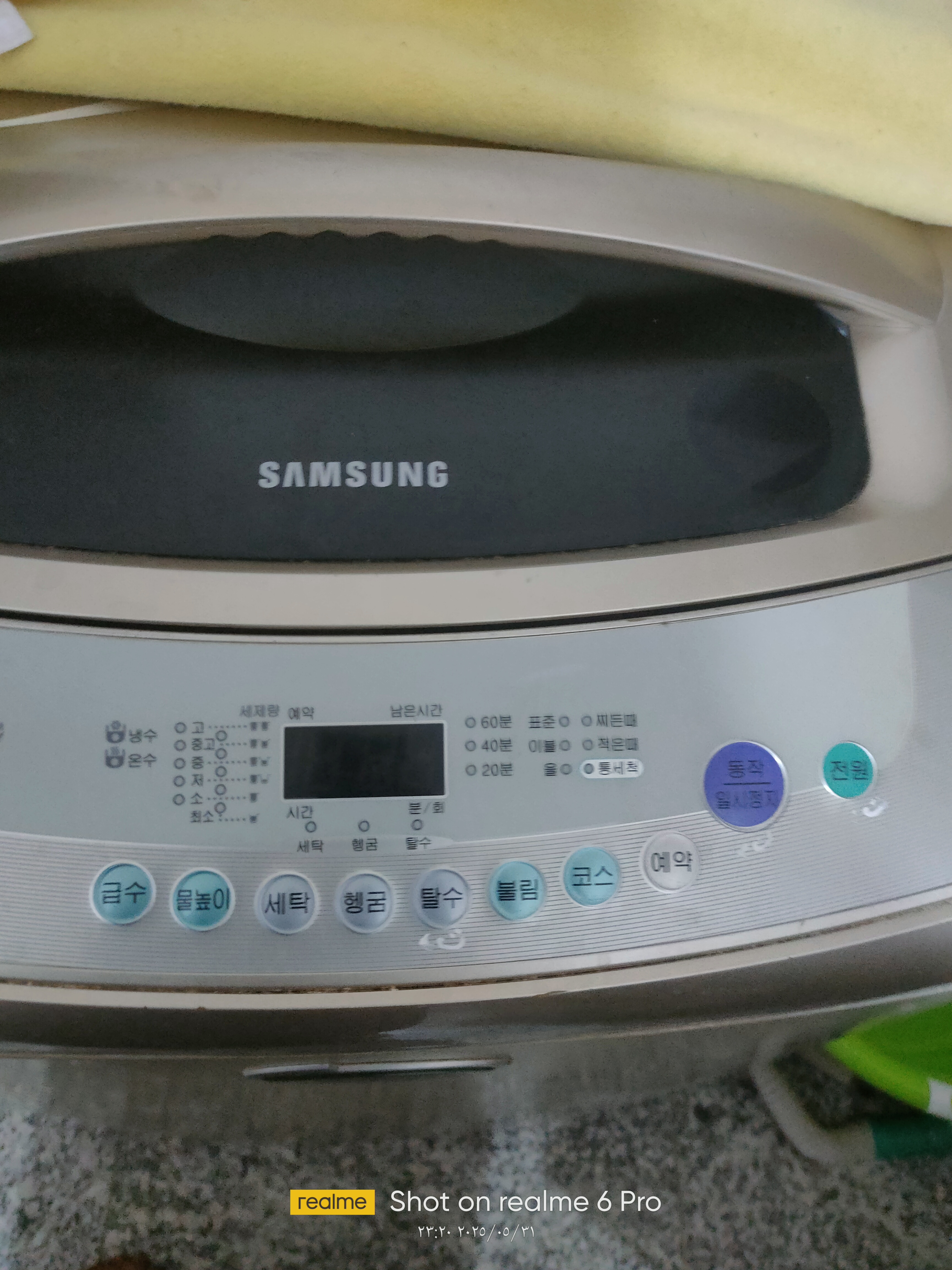

User image 68408ab0b7794

Summary of Contents for Samsung WA13R3Q3IW/YGG

  • Page 1 WASHING MACHINE WA13R3Q3IW/YGG WA15R3Q3IW/YGG WASHING MACHINE CONTENTS 1. PRECAUTIONS FOR SAFETY DURING SERVICING 2. TECHNICAL POINT 3. SCHEMATIC AND PCB DIAGRAM 4. HIGHLY IMPROVED STRUCTURE 5. TROUBLE DIAGNOSIS 6. HOW TO DISASSEMBLE 7. EXPLODED VIEW & PARTS LIST...
  • Page 2 3. SCHEMATIC AND PCB DIAGRAM 3-1 SCHEMATIC DIAGRAM...
  • Page 3 This Document can not be used without Samsung's authorization 3-2 PCB - DIAGRAM...
  • Page 4 6. HOW TO DISASSEMBLE 6-1 REPLACEMENT OF MAIN PCB-ASS'Y 1) Remove the two cover-screw and then a screw 2EA as shown in the figure 2) Lift up the CONTROL-PANEL by pushing it slightly from right to left as shown in the figure here. 3) Turn the CONTROL-PANEL ASS'Y and remove 4EA screws securing PCB ASS'Y.
  • Page 5 6-2 REPLACEMENT OF PRESSURE-SENSOR, WATER-VALVE, GUIDE-WATER, AND CHECKER-ASS'Y 1) Remove 2 screws(rear part) securing TOP- COVER, COVER-T.C, and remove them by lifting COVER-T.C to the arrow direction. 2) PRESSURE-SENSOR - After removing terminals of PRESSURE-SENSOR LEAD-WIRE and disassemble by opening the HOOK wide. * When reassembling PRESSURE-SENSOR, firstly PUSHING check AIR-HOSE position and connection status.
  • Page 6 6-3 Replacement of CLUTCH ASS`Y 1) After removing CONTROL-PANEL 2) Remove COVER-SCREW 2EA(R · L) in CONTROL-PANEL by using a pin and remove a SCREW 2EA(R · L) securing CONTROL-PANEL by using a (+) driver and then remove CONTROL-PANEL by pushing it slightly to left. 3) Remove screws (2EA in rear, 2EA in front) securing TOP-COVER and remove SCREW securing EARTH IRE and then lift TOP-COVER ASS`Y backward.
  • Page 7 7. EXPLODED VIEW & PARTS LIST ASSY-COVER TOP P0051 P0018 A0098 P0075 P0120 C0082 P0008 W0002 P0053 R0051 P0011 W0004 P0038...
  • Page 8 ASSY-TUB OUTER(SPIN BASKET) S0030 U0131 U0225 S0032 U0100 U0076 S0049 M0053 S0035 S0050 F0045 R0009 U0262 U0177 U0195 U0258 U0196 X0003 H0028 U0075 U0199 U0136 W0001...
  • Page 9 ASSY-CASE OUTER U0061 F0062 A0086 J0013 B0044 B0014 A0057 F0113 B0023 I0022 B0012...
  • Page 10 Parts List CODE NO. DESCRIPTION;SPECIFICATION REMARK A0057 DC61-10571B COVER-BACK;-,SBHG1-A,-,-,-,-,-,EDGE-BEND A0086 DC61-20209P HANDLE;SW12E1SP,PP,-,-,-,-,SNOW/WHT,- A0098 DC64-00748A INLAY-PANEL;WA16R3,PET,-,-,-,-,SELA-P/SP B0012 DC97-00287A ASSY-BASE;SW12E1SP,PUMP WA13R3Q3IW B0012 DC97-00287E ASSY-BASE;WA1635D0,PUMP(13KG) WA15R3Q3IW B0014 DC61-30330A BASE;PP,SEW-X1,-, WA13R3Q3IW B0014 DC61-30333A BASE;PP,SEW-X13,-, WA15R3Q3IW B0023 DC91-11795D ASSY-LEG;SEW-D107,RUBBER-LEG+ADJUST B0044 DC61-50164A LEG-LEVER;FRPP,SEW-X10,- B0047 DC61-50166A LEG-RUBBER;BUTYL,10/12KG,D41(FRONT) C0082 DC64-00697A PANEL-CONTROL;WA15R3W,ABS,-,-,-,-,SNOW-W...
  • Page 11 Parts List CODE NO. DESCRIPTION;SPECIFICATION REMARK S0030 DC97-05443H ASSY-BASKET SPIN;WA12RAN3IS/YFQ,MAGIC(1) WA13R3Q3IW S0030 DC97-06999A ASSY-BASKET SPIN;TORNADO12,SAVING WATER, WA15R3Q3IW S0032 DC97-00526D ASSY-BALANCER;SEW-SA101E(SPIN/GRY),M-FIL WA13R3Q3IW S0032 DC97-01806A ASSY-BALANCER;SEW-SA101E,KS-PJT WA15R3Q3IW S0035 DC97-05444A ASSY-S.BASKET SPIN;BB-PJT,NEW-BOWL WA13R3Q3IW S0035 DC97-06998A ASSY-S.BASKET SPIN;TORNAO12,SAVING WATER WA15R3Q3IW S0049 DC61-00862A GUIDE-W.F(F);SEW-3G100A,PP,-,-,1/2,SPIN/ S0050 DC61-00861A GUIDE-W.F(M);SEW-3G100A BB,PP,-,-,1/2,SP U0061...
  • Page 12 Screw/Bolt Parts List CODE NO. DESCRIPTION SPECIFICATION REMARK DC91-11258U ASSY-SCREW M8*30FE/FZY(FLANGE),MOTOR(COAT MOTOR DC97-04458C ASSY-SCREW SEW-3G100A,D_TYPE/L20/NO_LOCTIT SHAFT DC97-00623A ASSY-WASHER PLAIN SEW-524,SEM-NEW DC60-40007A BOLT-HEX SM18C,HH,M6,L22,FP,ZPC2,-,- DC60-00013A BOLT-HEX MSWR,HEX,M5,L20,-,ZPC2,SEW-524,SEM-10H DC60-40133A BOLT-PULSATOR M8,L25,-,STS 304 PULSATOR DC61-00584D CAP-SCREW TS85-PJT,SILICON,-,-,-,SNOW-WHT,- COVER TOP DC02-10009A CHEMICALS-LOCK SCREW NO2,-,-,- 0.000800 NUT-HEX DC02-10009A CHEMICALS-LOCK SCREW NO2,-,-,-...
  • Page 13 ELECTRONICS ©Samsung Electronics Co., Ltd. January. 2005 This Service Manual is a property of Samsung Electronics Co.,Ltd. Any unauthorized use of Manual can be punished under applicable Printed in Korea International and/or domestic law. Code No. : DC68-02376A...
