Summary of Contents for DK-TEC SPCPR150

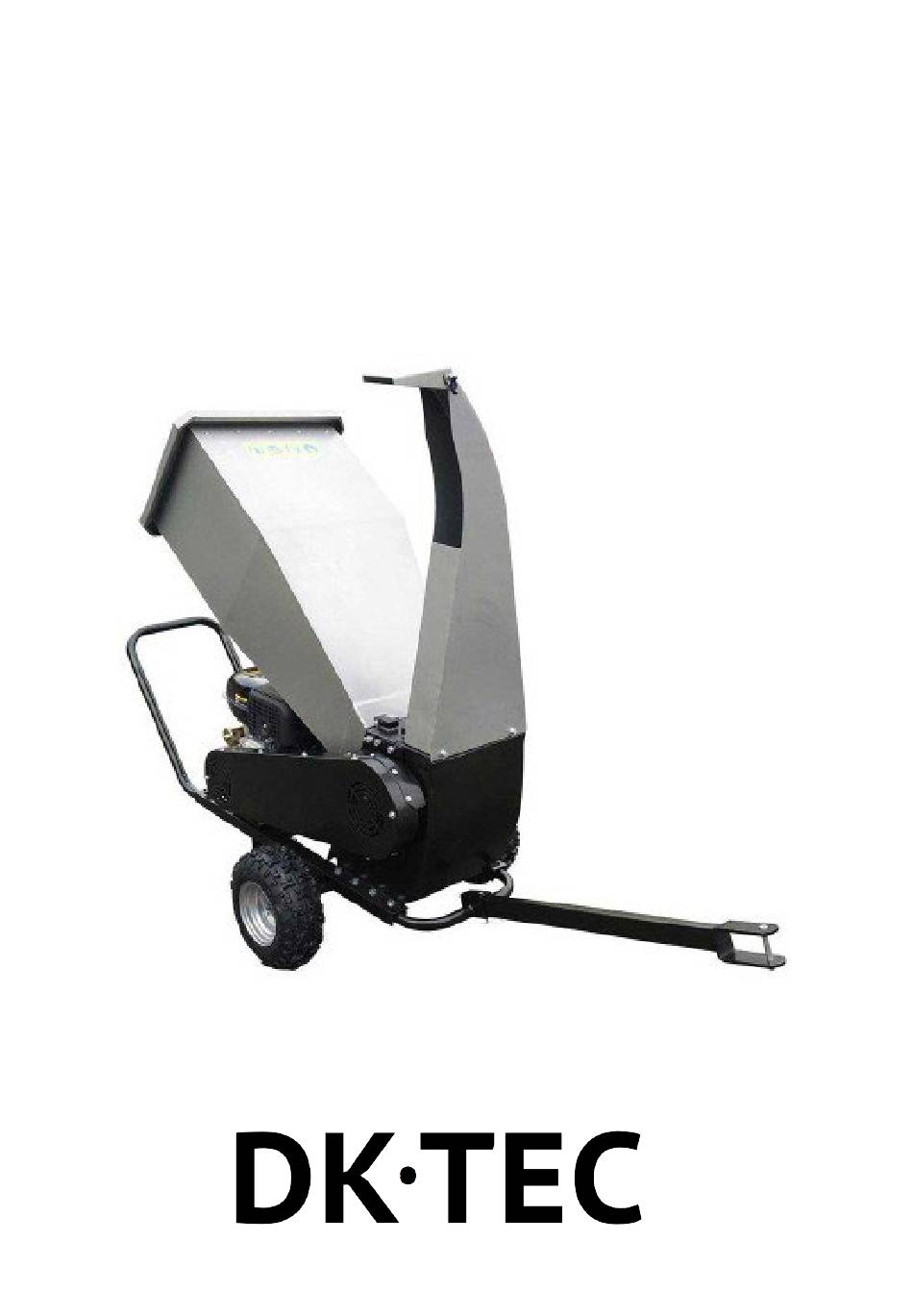

- Page 1 01/2021 Wood Chipper 15 HP with electric start User Manual Original manual Model: SPCPR150 ALWAYS READ INSTRUCTIONS BEFORE USING THE MACHINE DK-TEC A / S Ærøvej 8, 5800 Nyborg Phone: 66128222 Email: info @ dk-tec.dk...
- Page 2 01/2020 Table of Contents 1. In general ..............................1 2. Overviewover maskinen ........................... 2 3. Safety labels ............................... 3 4. Operationafmaskinen ..........................3 5. Misfiring ............................... 7 Specifications Max tree diameter: 90 mm Weight: 215 kg Electric start Tank 6.5 ltr Engine 402cc 15 hp petrol Roller with 2 reversible knives Pneumatic tires: 13x5.00-6...
- Page 3 01/2020 1. General Intended use • The chipper is designed exclusively for fine cutting/chipping of all kinds of branches with one diameter of up to a maximum of 8.5 cm. Restriction • You must not use the chipper for fine cutting/chipping of metal, stone, plastic. •...
-
Page 4: Overview Of The Machine
01/2020 2. Overview of the machine Indgangstragt Udgangstud Motor Beskyttelse af rotoraksel Trækstang Batteri Nødstop... -
Page 5: Safety Labels
01/2020 3. Safety labels NB: Before using the machine, make sure that the instructions have been carefully read for correct use of the machine. Observe all safety instructions! 4. Operation of the machine 1. Safety and technical notes • The user must be 18 years or older. •... - Page 6 01/2020 • A jammed piece of wood in the inlet pipe can only be safely removed when the engine is switched off. If necessary, open and tip the inlet and outlet tubes to facilitate access to the rotor. Use a wooden stick to remove the jammed piece of wood in the rotor. Never use your hands! (Fig.
- Page 7 01/2020 Transport position Manual transport position 2 . Before operating the machine Check that the machine is firmly on the ground and cannot tip in any way. The danger zone on the outlet pipe of the machine must be observed to avoid serious personal injury from chips being thrown out of the outlet pipe.
- Page 8 01/2020 Before starting the engine, check that the bolts holding the inlet and outlet pipes are fully tightened. (Fig. 12, 13) 4. Transportation Before moving the machine, the engine must be switched off! Maintenance and inspection All technical inspections and maintenance must be carried out with the engine off and the spark plug cap removed from the spark plug.
- Page 9 01/2020 For engine maintenance, refer to the engine manufacturers in the engine manual. Note that the first engine oil change must take place after 5 hours of using the machine.
-
Page 10: Troubleshooting
01/2020 5. Troubleshooting Problem Cause Solution The chipper does not do the - The blades are too worn - Change or sharpen the job correctly: the wood is not - The diameter of the blades. Note that the blades pulled in by the machine itself. branches inserted into the are sharpened on both sides The tile is not the same size. - Page 12 01/2020 Find parts for your machine on DK-TEC.dk Ærøvej 8, 5800 Nyborg, Denmark +45 31 12 82 22 info@dk-tec.dk...
