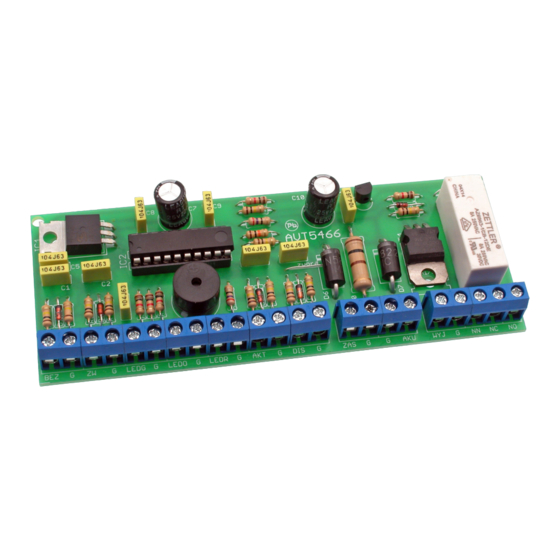

Alarm Unit with 2 Monitoring Lines
kits
An uncomplicated alarm unit with monitoring lines:
immediate and delayed. Several sensors can be
connected in series to each of them, such as motion
detectors, window and door opening sensors (e.g.,
reed switches), optical barriers and others with output
in the form of normally closed (NC) contacts.
This unit is ideal for basic security in a house, flat or
leisure cabin.
Circuit description
Basic operating state of the unit is sleep. In this
state, it will not respond to any events, its outputs
are off, and the circuit activity is indicated by LEDs,
green or orange, but only if any of the trigger lines
are not closed. If the voltage of the backup battery
drops below 10.5 V, the orange LED will additionally
flash.
The LED states with their corresponding device
states are shown in Figure 1. The unit is activated
when its input is shorted to earth. Red LED will then
flash, and the buzzer will beep periodically to
indicate the time at which you should leave the
protected area. After 30 seconds the unit will stand
by, and before the trigger line circuits must be
Features
• relay output with load capacity 230 VAC / 8 A
• siren power output 12 VDC / 3 A
• 2 trigger lines: immediate and delayed with a delay
time of 30 seconds
• operating status indication: 3 LEDs
• low battery voltage indication
• power supply 8-15 VDC, current consumption: 2 mA
at stand-by, 100 mA at alarm
closed, the green and orange LEDs off. Otherwise,
the alarm procedure will start immediately. In the
active state, a green LED is on every few seconds. If
the alarm is reported via a delayed line, the unit can
be deactivated within 30 seconds; if an immediate
line is used, the sound alarm and relay will be
activated immediately. The alarm condition is
indicated by the continuous light of the red diode
and the diode corresponding to the active trigger
line.
The alarm siren will be switched off automatically
after 1 minute, irrespective of the status of the
triggering lines, another line violation will repeat
the procedure. The relay output will be on for 1
PDF
DOWNLOAD
ASSEMBLY DIFFICULTY
1
Advertisement
Summary of Contents for AVT 5466

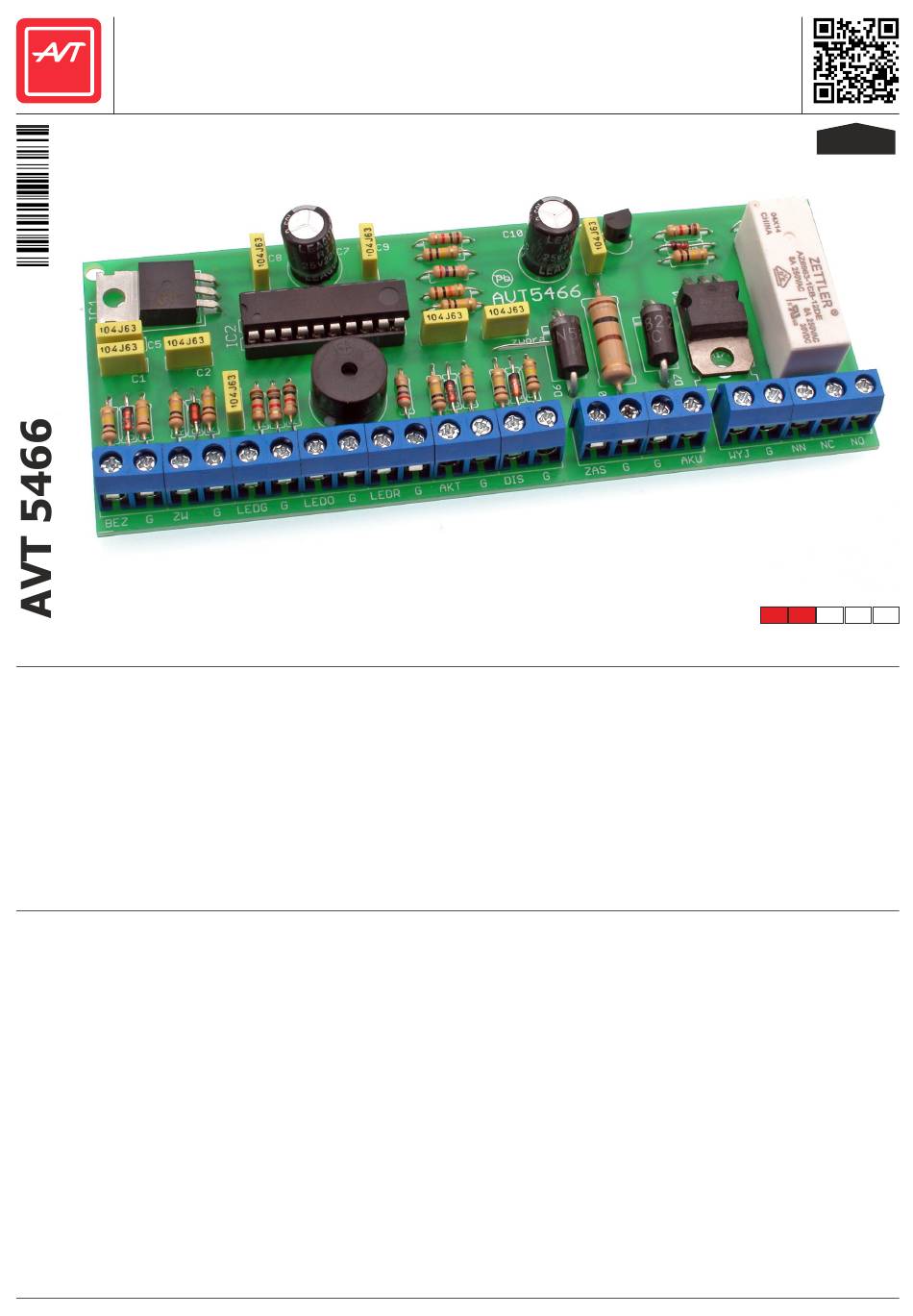

- Page 1 Alarm Unit with 2 Monitoring Lines kits DOWNLOAD ASSEMBLY DIFFICULTY An uncomplicated alarm unit with monitoring lines: Features immediate and delayed. Several sensors can be • relay output with load capacity 230 VAC / 8 A connected in series to each of them, such as motion •...
- Page 2 Unit active + Immediate line Unit active low battery is not violated Delayed line is Immediate line Low bat. violated + countdown is violated Immediate line Immediate line is Alarm on violated + countdown is not violated Fig. 1 LED indication of device statuses minute and then for as long as any of the trigger activation and deactivation input are protected lines are violated.
- Page 3 Mounting and start-up Mounting diagram of the unit is shown in Fig. 4. outputs are available. On the first of these, in the The circuit is made of typically assembled through- alarm state, there is a supply voltage, i.e., approx. hole components, so even less experienced users 12 V, intended for connection to an audible or will succeed in making it.
- Page 4 AVT SPV reserves the right to make changes without prior notice.Installation and connection of the appliance not in accordance with the instructions, unauthorised modification of components and any structural alterations may cause damage to the appliance and endanger persons using it. In such a case, the manufacturer and its authorised representatives shall not be liable for any damage arising directly or indirectly from the use or malfunction of the product.
