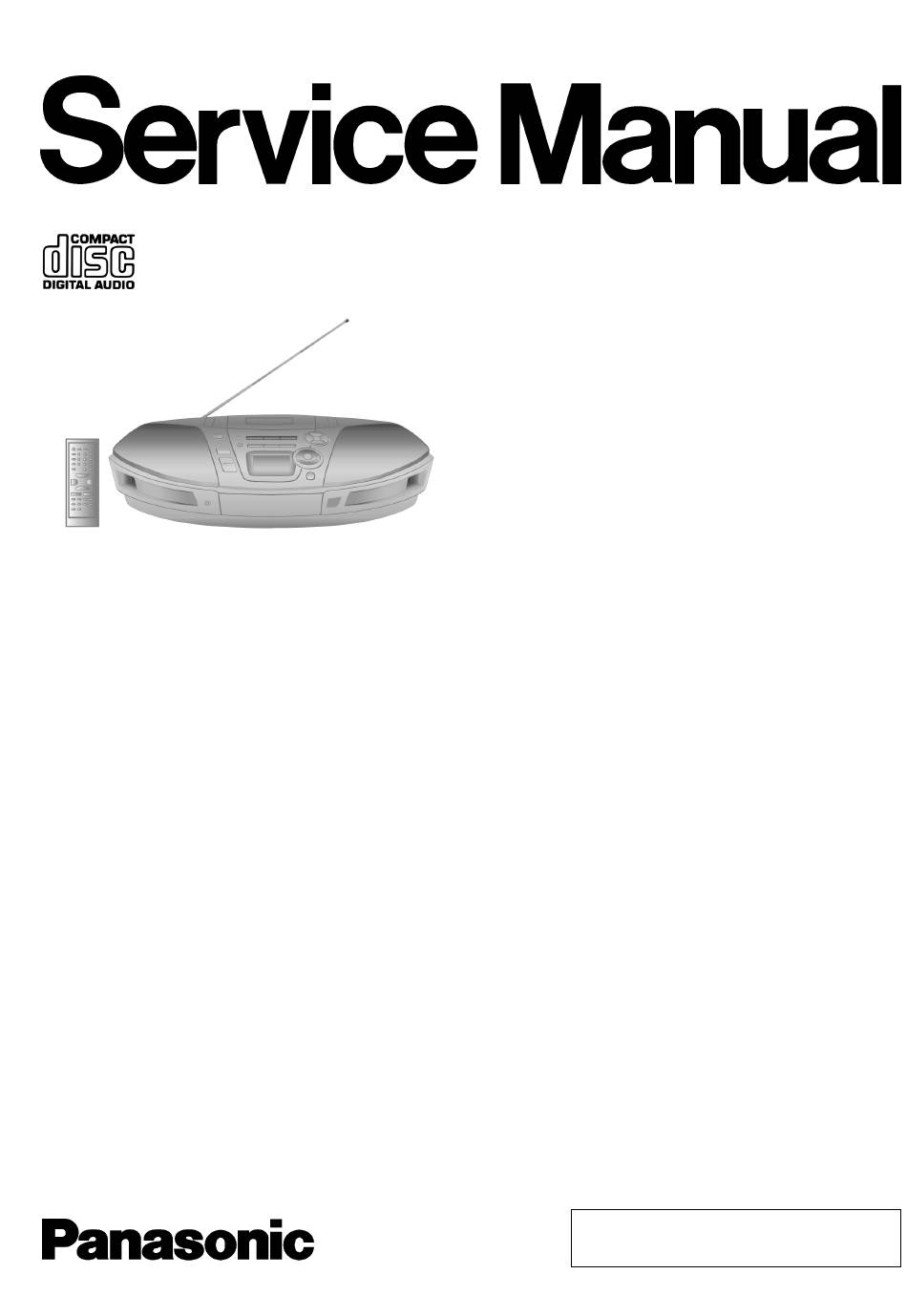

Panasonic RX-ES29EE Service Manual

Panasonic RX-ES29EE Service Manual

Portable stereo cd system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Specification
n RADIO
Frequency range
FM
AM
n CD PLAYER
Sampling frequency
Decoding
Beam source
No. of channels
Wow and flutter
D/A converter
n TAPE RECORDER
Track system
Monitor system
Recording system
Erasing system
Frequency range
Normal position
87.50-108.00 MHz (50 kHz steps)
522-1629 kHz (9 kHz steps)
44.1 kHz
16 bit linear
Semiconductor laser (wavelength
780 nm)
2 channel, stereo
Below measurable limit
MASH (1 bit DAC)
Stereo
Variable sound monitor
AC bias
Multi Pole magnet
50-14000 Hz

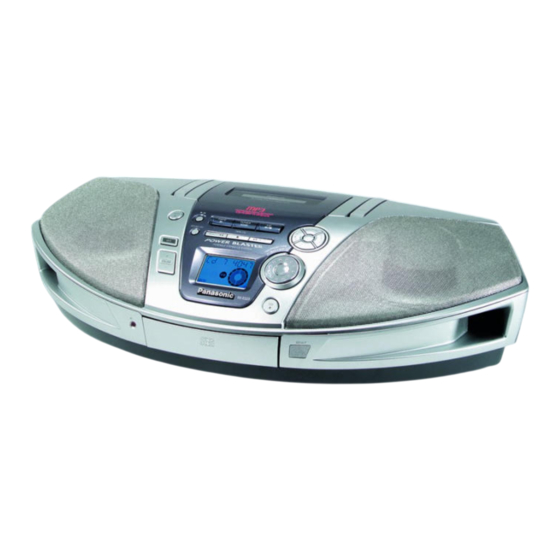

Portable Stereo CD System
RX-ES29EE
Colour
(S)..........Silver Type
n GENERAL
Speakers
Jacks
Output
Power requirement
AC
Power consumption
Battery
Memory backup for
computer/clock
Dimensions
Mass
Power consumption in standby
mode
Notes:
1. Specifications are subject to change without notice.
2. Mass and dimensions are approximate.
© 2004 Matsushita Electric Industrial Co. Ltd.. All
rights
reserved.
distribution is a violation of law.
Order No. MD0411556C3
8 cm 5.4Ω x 2
Phones: 3.5 mm stereo (16-32Ω)
230-240 V, 50 Hz
12 V [Eight R20/LR20 (D, UM-1)
l Do not use rechargeable type batteries
6 V [Four R6/LR6 (AA, UM-3)
l Do not use rechargeable type batteries
529 mm (W) x 144 mm (H) x 276
4.4 kg without batteries
Unauthorized
copying
30 W
batteries]
batteries]
mm (D)
2.7 W
and

Advertisement

Table of Contents
loading

Related Manuals for Panasonic RX-ES29EE

Summary of Contents for Panasonic RX-ES29EE

  • Page 1 Order No. MD0411556C3 Portable Stereo CD System RX-ES29EE Colour (S)..Silver Type Specification n RADIO n GENERAL Frequency range Speakers 8 cm 5.4Ω x 2 87.50-108.00 MHz (50 kHz steps) Jacks 522-1629 kHz (9 kHz steps) Output Phones: 3.5 mm stereo (16-32Ω)

  • Page 2: Table Of Contents

    RX-ES29EE CONTENTS Page Page 1 Safety Precautions 13 Measurements and Adjustments 1.1. GENERAL GUIDELINES 13.1. Tuner Section 2 Before Repair and Adjustment 13.2. Deck Section 3 Protection Circuitry 14 Voltage Measurement 4 Handling the Lead Solder 14.1. Main P.C.B. 4.1. About lead free solder (PbF) 14.2.

  • Page 3: Safety Precautions

    RX-ES29EE 1 Safety Precautions 1.1. GENERAL GUIDELINES 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, ensure that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Before Repair And Adjustment

    RX-ES29EE 2 Before Repair and Adjustment Disconnect AC power, discharge Power Supply Capacitors C301, C131, C231, C310, C307, C309 and C331 through a 10 Ω, 1 W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screw driver blade, for instance), as this may destroy solid state devices.

  • Page 5: Precaution Of Laser Diode

    RX-ES29EE 5 Precaution of Laser Diode Caution : This product utilizes a laser diode with the unit turned "ON", invisible laser radiation is emitted from the pick up lens. Wavelength : 780 nm Maximum output radiation power from pick up : 100 µW/VDE Laser radiation from pick up unit is safety level, but be sure the followings: 1.

  • Page 6: Handling Precautions For Traverse Deck

    RX-ES29EE 6 Handling Precautions For Traverse Deck The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused by static electricity of clothes or human body. So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).

  • Page 7: Accessories

    RX-ES29EE 7 Accessories Note : Refer to Packing Materials & Accessories Parts List (Section 23.5) for the part number. Remote Control..1pc AC cord..1 pc...

  • Page 8: Operation Procedures

    RX-ES29EE 8 Operation Procedures 8.1. Main Unit...

  • Page 9: Remote Control

    RX-ES29EE 8.2. Remote Control...

  • Page 10: Information On Mp3

    RX-ES29EE 9 Information on MP3...

  • Page 11: Disassembly And Main Component Replacement Procedures And Operational Check

    RX-ES29EE 10 Disassembly and Main Component Replacement Procedures and Operational Check “ATTENTION SERVICER” Some chassis components may be have sharp edges. Be careful when disassembly and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components.

  • Page 12: Checking Procedure For Each Major P.c.b

    RX-ES29EE 10.2. Checking Procedure for each major P.C.B. 10.2.1. Disassembly of Top Cabinet Unit. Step 3: Flip up the handle as arrow direction shown. Step 1: Remove 10 screws. Step 2: Remove 2 screws. Step 4: Use a screw driver and insert into the hole. Slide the screw driver to the direction shown to open the cassette panel.
  • Page 13 RX-ES29EE Step 5: Cassette panel will automatically open. Step 8: Flip the Top Cabinet over as arrow shown. Step 9: Detach the FFC wire (CP401). 10.2.2. Disassembly of Panel P.C.B. Follow (step 1) to (step 9) of item 10.2.1. Step 6: Remove 2 screws.
  • Page 14 RX-ES29EE Step 5: Release 2 catches. Step 3: Remove the Front Panel from Top Cabinet as arrow shown. Step 6: Flip over the Control Button Unit with the Panel P.C.B. as arrow shown. Step 4: Remove 6 screws. Step 7: Remove the Jog Knob using a screwdriver as arrow shown.
  • Page 15 RX-ES29EE 10.2.3. Disassembly of Speakers. Follow (step 1) to (step 9) of item 10.2.1. Follow (step 1) to (step 10) of item 10.2.2. Step 8: Release 6 catches. Step 1: Remove 8 screws. Step 9: Remove the Panel P.C.B. as arrow shown.
  • Page 16 RX-ES29EE Step 1: Remove 4 screws. Step 3: Release the connector (CP1450) to remove the deck mechanism. 10.2.5. Disassembly of Main, Standby LED, Power On and Sensor P.C.B. Follow (step 1) to (step 9) of item 10.2.1. Follow (step 1) to (step 3) of item 10.2.4.
  • Page 17 RX-ES29EE Step 4: Remove 2 screws. Step 5: Release all the connectors (CP501, CP402 & CP801). Step 7: Release the Sensor P.C.B. as arrow shown. Step 8: Remove the Main P.C.B. as arrow shown. 10.2.6. Disassembly of Battery and Power P.C.B.
  • Page 18 RX-ES29EE Step 3: Remove the Battery P.C.B. as arrow shown. Step 5: Remove the Transformer together with battery P.C.B. and Power P.C.B. as arrow shown. 10.2.7. Disassembly of CD Loading Mechanism. Follow (step 1) to (step 9) of item 10.2.1.
  • Page 19 RX-ES29EE Step 2: Remove the CD Loading Mechanism as arrow shown. Step 1: Remove the cassette open spring. 10.2.8. Replacement of Cassette Panel. Follow (step 1) to (step 9) of item 10.2.1. Step 2: Push the cassette panel slowly to the right.

  • Page 20: Procedures For Replacing Pinch Roller And Head Block (Deck Mechanism Unit)

    RX-ES29EE Step 3: Push the cassette panel slowly to the left using a screw driver. Caution: Be careful of using/exerting strong forces. 10.4. Procedures for Replacing Motor, Capstan Belt A, Capstan Belt B, and Winding Belt (Deck Mechanism Unit) Step 4: Remove the cassette panel from top cabinet as arrow Follow (step 1) to (step 9) of item 10.2.1.
  • Page 21 RX-ES29EE...

  • Page 22: Procedures For Replacing Parts On Deck Mechanism Pcb

    RX-ES29EE Follow (step 1) to (step 3) of item 10.2.4. Follow (step 1) of item 10.3. 10.6. Procedures of Replacing Traverse Base (Unit), Driving Gear, and Cam Gear (CD Mechanism Unit) 10.6.1. Disassembly of the Disc Tray. Follow (step 1) to (step 9) of item 10.2.1.
  • Page 23 RX-ES29EE...
  • Page 24 RX-ES29EE...

  • Page 25: Procedures For Replacing Optical Pickup (Cd Mechanism Unit)

    RX-ES29EE 10.7. Procedures for Replacing Optical Pickup (CD Mechanism Unit) Follow (step 1) to (step 9) of item 10.2.1. Follow (step 1) to (step 3) of item 10.2.4. Follow (step 1) to (step 8) of item 10.2.5. Follow (step 1) to (step 2) of item 10.2.7.

  • Page 26: Procedures For Replacement Traverse Gear A And Traverse Gear B (Cd Mechanism Unit)

    RX-ES29EE 10.8. Procedures for Replacement Traverse Gear A and Traverse Gear B (CD Mechanism Unit) Follow (step 1) to (step 9) of item 10.2.1. Follow (step 1) to (step 3) of item 10.2.4. Follow (step 1) to (step 8) of item 10.2.5.
  • Page 27 RX-ES29EE...

  • Page 28: Procedure For Checking Of The Major P.c.b

    RX-ES29EE 11 Procedure for checking of the major P.C.B. 11.1. Checking the Main P.C.B., Panel P.C.B., Deck Mechanism P.C.B., CD Servo P.C.B., Battery P.C.B., Sensor P.C.B., Power-On P.C.B., Power and Standby LED P.C.B. Preparation Follow items 10.2.1. to 10.2.7. of Disassembly Procedure.

  • Page 29: Self Diagnostic Function

    RX-ES29EE 12 Self Diagnostic Function 12.1. Self-diagnosis Function 12.1.1. Entering into self-diagnosis mode 1. Ensure there is no cassette tape in the deck unit. 2. Switch to CD function. 3. Press and hold the [CD/TAPE STOPn] key of the main set for more than 2 seconds. While pressing this key, press the FF key on the main set for another 2 seconds to enter into the Self-Diagnosis mode.
  • Page 30 RX-ES29EE Error code Possible symptom Description of problem · During operation, when PDET switches to OFF (PDET < 1.534V) due to fall of power supply voltage Power supply cut fall, the power supply will be automatically switched OFF. · If REM_STBY = L, VCCDET = H the system shall be judged to have low battery and [..UO2] shall be displayed for 10 seconds.

  • Page 31: Setting Of Doctor Mode

    RX-ES29EE Figure 12-2 12.2. Setting of doctor mode 1. Switch to CD mode. (Ensure no disc is inserted) 2. To enter Doctor mode, press and hold [TAPE/CD STOPn] key at the main unit, followed by [4] & [7] on remote control.
  • Page 32 RX-ES29EE 4. However, if the EEPROM was not detected, it will not display the EEPROM’s checksum information. The LCD will display micro- p version number (as shown below) for 1 sec and return to normal Doctor Mode display. Note: Within the Doctor Mode display, at any of the test modes, if [STOPn] key at main set is pressed, followed by [4] and [7] key from the remote control, the micro-p’s version number and EEPROM information will be displayed for 1 sec, and then returned to the...
  • Page 33 RX-ES29EE Figure 12-3 3. After a few times, the LCD shall display as below: Special Note: Due to certain reasons, when the following conditions occur, the aging will stop but the count value shall be maintained: · During OPEN operation, after a certain timing, the CD does not open in the Open position. (After REST SW is OFF, the CD OPEN SW did not turn ON after 4s.)
  • Page 34 RX-ES29EE Figure 12-4 3. After a few times, the LCD will display as shown below: Special Note : Due to certain reasons, when the following conditions occur, the aging will stop but the count value shall be maintained: · After 10s, the Disc Access has not yet complete.
  • Page 35 RX-ES29EE Figure 12-5 3. After a few times, the LCD will display as shown below: Special Note : Due to certain reason, when the following conditions occur, the aging will stop but the count value shall be maintained: · During OPEN operation, after a certain timing, the CD does not open in the OPEN position. (After REST SW is OFF, the CD OPEN SW did not turn ON after 4s.)
  • Page 36 RX-ES29EE Example of LCD Display:...

  • Page 37: Measurements And Adjustments

    RX-ES29EE 13 Measurements and Adjustments 13.1. Tuner Section READ CAREFULLY BEFORE ATTEMPTING ALIGNMENT 1. Set selector switch to AM or TAPE. 2. Set volume level to 40. 3. Output of signal generator should be no higher than necessary to obtain an output reading.

  • Page 38: Deck Section

    RX-ES29EE 13.2. Deck Section · HEAD AZIMUTH ALIGNMENT Test Tape Indicator (Electronic Adjustment Remarks Voltmeter or oscilloscope) QZZCFM Headphone Jack Azimuth Screw 1. Insert a test tape (QZZFCM) and start playback in the forward direction. (8 kHz, -20 dB) (32Ω)Fabricate the plug as (Shown in Fig.
  • Page 39 RX-ES29EE...

  • Page 40: Voltage Measurement

    RX-ES29EE 14 Voltage Measurement Note: · Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester.

  • Page 41: Cd Servo

    RX-ES29EE Q102 Q103 Q202 Q203 Ref No. MODE CD PLAY STANDBY Q301 Q302 Q303 Q304 Q305 Ref No. MODE CD PLAY 11.7 15.0 11.1 14.3 15.0 15.0 STANDBY 11.7 16.4 11.1 16.4 16.5 Q306 Q307 Q308 Q309 Q310 Ref No.

  • Page 42: Waveform Chart

    RX-ES29EE 15 Waveform Chart CS901 PIN 4 CS901 PIN 5 CS901 PIN 7 CS901 PIN 8 CD PLAY CD PLAY CD PLAY CD PLAY 3.88Vp-p (10msec.div) 3.48Vp-p (10msec.div) 3.60Vp-p (10msec.div) 3.52Vp-p (10msec.div) IC702 PIN 76 IC702 PIN 77 IC702 PIN 78...

  • Page 43: Notes Of Schematic Diagram

    RX-ES29EE 16 Notes of Schematic Diagram (All schematic diagrams may be modified at any time with the development of new technology.) Notes: S701 : REST SWITCH S780 : OPEN SWITCH S901 : VOL+ SWITCH S902 : VOL- SWITCH S903 :...

  • Page 44: Schematic Diagram

    RX-ES29EE 17 Schematic Diagram 17.1. CD SERVO CIRCUIT SCHEMATIC DIAGRAM - 1 CD SERVO CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE OPTICAL PICKUP UNIT C701 6.3V33 R701 Q701 B1ADCF000001 CN701 LASER POWER DRIVE Vref R754 HUL7213 LD GND LD GND 0.47...
  • Page 45 RX-ES29EE SCHEMATIC DIAGRAM - 2 : CD-DA SIGNAL LINE CD SERVO CIRCUIT : +B SIGNAL LINE : CD SIGNAL LINE C703 C724 C723 C704 C755 6.3V100 6.3V220 C727 R717 50V1 C725 1000P C726 C728 R718 R711 1000P 50V1 R721 C730 C731 6.3V220...

  • Page 46: Main Circuit And Power On Circuit

    RX-ES29EE 17.2. MAIN CIRCUIT and POWER ON CIRCUIT SCHEMATIC DIAGRAM-3 : PLAYBACK SIGNAL LINE MAIN CIRCUIT : FM/AM SIGNAL LINE : RECORD SIGNAL LINE : +B SIGNAL LINE R803 150K L801 G0C2R2KA0029 R804 R802 R801 100K 150K (1A) C820 C813 C803 6.3V100...
  • Page 47 RX-ES29EE D805 SCHEMATIC DIAGRAM-4 LNW9A8BYBZ POWER ON LED POWER ON CIRCUIT MAIN CIRCUIT : +B SIGNAL LINE W801 COM0 SEG25 COM1 SEG26 COM2 SEG27 COM3 SEG28 VLC3 VLC2 VLC1 ECLK EDATA IC801 MBP1 D803,D804 MN101C74GAA1 MBP2 B0AACK000004 R849 R854 MICRO PROCESSOR...
  • Page 48 RX-ES29EE SCHEMATIC DIAGRAM-5 : CD SIGNAL LINE : PLAYBACK SIGNAL LINE : +B SIGNAL LINE MAIN CIRCUIT : FM/AM SIGNAL LINE : RECORD SIGNAL LINE : MAIN SIGNAL LINE Z801 L5ACAGD00019 R101 R213 R113 R234 R134 R108 IC201 C1BB00000732 SOUND PROCESSOR...
  • Page 49 RX-ES29EE SCHEMATIC DIAGRAM-6 : +B SIGNAL LINE MAIN CIRCUIT : MAIN SIGNAL LINE R120 R130 C231 D201 16V330 B0BA7R500006 C131 D101 16V330 B0BA7R500006 R111 R110 C103 C102 R124 16V10 0.068 Q102 C111 C120 R119 2.2K 0.022 0.015 R109 C105 100P...
  • Page 50 RX-ES29EE SCHEMATIC DIAGRAM-7 : +B SIGNAL LINE MAIN CIRCUIT : MAIN SIGNAL LINE C301 R302 25V4700 C303 16V22 STAND BY VCC1 VCC2 +OUT1 SIGNAAL MUTE R303 4.7K GND1 C304 -OUT1 16V47 IC301 +OUT2 GND2 -OUT2 C219 C236 C119 C136 IC301...
  • Page 51 RX-ES29EE SCHEMATIC DIAGRAM-8 : +B SIGNAL LINE MAIN CIRCUIT : MAIN SIGNAL LINE : CD SIGNAL LINE C121 16V10 R121 R221 C221 50V10 HEADPHONE C122 C222 R339 50V2.2 50V2.2 R340 100K Q316 JK301 Q317 B1AAGF000008 R341 C318 16V47 SWITCH Q316...
  • Page 52 RX-ES29EE SCHEMATIC DIAGRAM-9 MAIN CIRCUIT : +B SIGNAL LINE : CD SIGNAL LINE C101 1000P C201 CD L 1000P A_GND CD_R L400 G0A200D00002 CD_3.3V D3.3V LD_SW/CLDCK C414 1000P D_GND CD7.5V CD_7.5V IC401 C419 C418 C421 C423 C422 C413 CD SERVO...

  • Page 53: Main (Tuner) Circuit

    RX-ES29EE 17.3. MAIN (TUNER) CIRCUIT SCHEMATIC DIAGRAM - 10 : FM/AM SIGNAL LINE : AM SIGNAL LINE MAIN (TUNER) CIRCUIT : FM OSC SIGNAL LINE : +B SIGNAL LINE : AM OSC SIGNAL LINE 0.022 1000P G2CAEB000004 RL02B131-T TELESCOPIC ANTENNA...
  • Page 54 RX-ES29EE SCHEMATIC DIAGRAM - 11 : FM/AM SIGNAL LINE MAIN (TUNER) CIRCUIT : +B SIGNAL LINE 3.9K 100P 1000P 330P C1CA00000198 PLL IC RSXD7M20C01 0.01 1000P 1000P 1000P 50V2.2 4.7K 2.2K 2200P 0.01 G0C101KA0029 3.3K 1000P 1000P 1000P 16V100 16V100...

  • Page 55: Main (Deck) Circuit

    RX-ES29EE 17.4. MAIN (DECK) CIRCUIT SCHEMATIC DIAGRAM-12 : PLAYBACK SIGNAL LINE MAIN (DECK) CIRCUIT : +B SIGNAL LINE : +B SIGNAL LINE Q1103, Q1104 C1107 50V1 B1DEDQ000004 C1108 R1108 HEAD SELECT 820P 3.9K R1109 (REC: ON) R1103 C1502 3.9K Q1104...
  • Page 56 RX-ES29EE SCHEMATIC DIAGRAM-13 : PLAYBACK SIGNAL LINE MAIN (DECK) CIRCUIT : +B SIGNAL LINE : +B SIGNAL LINE Q1101, Q1201 B1DEDQ000004 SWITCH R1204 R1104 Q1201 Q1101 R1002 4.7K Q1000 KRC119MTA SWITCH Q1000 Q1102 Q1202 R1207 TAPE_REC_Rch Q1102, Q1202 R1299 KTC3199GRTA...

  • Page 57: Panel Circuit, Standby Led Circuit, Battery

    RX-ES29EE 17.5. PANEL CIRCUIT, STANDBY LED CIRCUIT, BATTERY CIRCUIT, POWER CIRCUIT and SENSOR CIRCUIT SCHEMATIC DIAGRAM-14 STANDBY LED SENSOR : +B SIGNAL LINE CIRCUIT CIRCUIT : MAIN SIGNAL LINE D401 Z401 SLR325VRT31 STANDBY LED W401 B3RAB0000046 REMOTE SENSOR MAIN CIRCUIT...

  • Page 58: Printed Circuit Board

    RX-ES29EE 18 Printed Circuit Board 18.1. CD SERVO P.C.B CD SERVO P.C.B (REPV0039A) C755 TP51 C727 C718 TP19 C725 TP16 C726 R711 J711 TP23 TP50 C716 J722 C728 TP17 C702 TP18 C705 TP87 C729 C706 TP13 TP27 C762 C733 CN702...

  • Page 59: Main

    RX-ES29EE 18.2. MAIN P.C.B. MAIN P.C.B (REPV0043A) HEADPHONE TP21 Q316 Q317 R327 R339 Q309 W351 D314 Q311 C314 W330 D308 Q308 JK301 R121 C315 C219 IC301 R335 D311 Q314 W380 R226 Q312 Q313 W352 W407 TP23 R218 R337 R118 W328...
  • Page 60 RX-ES29EE TELESCOPIC ANTENNA R339 W351 D314 Q311 C315 R335 D311 Q314 Q313 R337 R336 R338 R306 D301 C309 C305 IC302 IC303 Q301 C330 C331 W388 W375 W349 W348 W336 W385 W386 W387 W337 W339 W340 W341 W342 R308 Q303 D319...

  • Page 61: Panel P.c.b. And Deck Mechanism P.c.b

    RX-ES29EE 18.3. PANEL P.C.B. and DECK MECHANISM P.C.B. PANEL P.C.B (REPV0045A) S916 PLAY/REC S909 R910 S914 CD REC S910 S908 S912 CLOCK MODE R912 /TIMER CD PLAY/PAUSE TUNER BAND TAPE R904 R908 R911 R914 R913 S911 S913 DECK EJECT S915...

  • Page 62: Standby Led P.c.b., Battery P.c.b., Power On

    RX-ES29EE 18.4. STANDBY LED P.C.B., BATTERY P.C.B., POWER ON P.C.B. and SENSOR P.C.B. STANDBY LED BATTERY P.C.B P.C.B (REPV0043A) (REPV0043A) 12V (1.5V X 8 BATTERIES) D-TYPE, UM-1, R20/LR20 D401 FP501 W505 W504 POWER ON P.C.B (REPV0043A) W502 W507 W506 W801...

  • Page 63: Power

    RX-ES29EE 18.5. POWER P.C.B. POWER P.C.B (REPV0043A) H502 /W502 CP501 R501 F501 250V T4AL FH501 FH502 T501 TRANSFORMER C501 W501 JK501 5-BATT AC IN 4-AC 230V-240V 50Hz 3-COM W502 L501 L502 CAUTION RISK OF ELECTRIC SHOCK AC VOLTAGE LINE. PLEASE DO NOT TOUCH THIS P.C.B...

  • Page 64: Wiring Connection Diagram

    RX-ES29EE 19 Wiring Connection Diagram SOLDER SIDE H502/W502 CP501 POWER P.C.B SENSOR P.C.B JK501 T501 TRANSFORMER W403 Z401 AC IN 230-240V SENSOR 50Hz SOLDER SIDE PANEL P.C.B SOLDER SIDE H901 Z901 /W901 VOLUME SP902 WHITE (R ch) PM DYNAMIC W905...
  • Page 65 RX-ES29EE 12V (1.5V X 8 BATTERIES) D-TYPE, UM-1, R20/LR20 DECK MECHANISM P.C.B BATTERY P.C.B 9 ..1 CS971 SOLDER SIDE W502 SOLDER SIDE SOLENOID R/P Head SOLDER SIDE 6V (1.5V X 4 BATTERIES)

  • Page 66: Type Illustration Of Ic 痴, Transistors And Diodes

    RX-ES29EE 20 Type Illustration of IC’s, Transistors and Diodes C1BA00000331 (24P) LA4663 (14P) MN6627953HB (80P) C0CAABC00007 C1BB00000732 (32P) MN101C74GAA1 (100P) C1CA00000198 (22P) C0JBAZ001229 (14P) BA5948FPE2 (28P) No.1 C1AA00000612 (5P) KTC3199GRTA C0CAADC00031 (3P) CNB13030R2AU AN7317 (16P) KTA1270YTA 2SA1515STPQ B1ACND000003 B1DEDQ000004 2SD09650RA...

  • Page 67: Terminal Function Of Ic 痴

    RX-ES29EE 21 Terminal Function Of IC’s 21.1. IC801 (MN101C74GAA1): Terminal Name Function Microprocessor ASP_DATA ASP SERIAL DATA OUTPUT PCONT POWER CONTROL OUTPUT Terminal Name Function REM_STBY AC IN DETECTION NO CONNECTION COM0 LCD COMMON OUTPUT NO CONNECTION COM1 LCD COMMON OUTPUT...

  • Page 68: Troubleshooting Flowchart (Cd Section Circuit)

    RX-ES29EE 22 Troubleshooting Flowchart (CD Section Circuit)
  • Page 69 RX-ES29EE...

  • Page 70: Parts Location And Replacement Parts List

    RX-ES29EE 23 Parts Location and Replacement Parts List Notes: · Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low noise (resistors), etc are used.

  • Page 71: Deck Mechanism (Raa4401-1V)

    RX-ES29EE 23.1. Deck Mechanism (RAA4401-1V) 23.1.1. Deck Mechanism Parts Location...
  • Page 72 RX-ES29EE 23.1.2. Deck Mechanism Parts List Ref. Part No. Part Name & Description Remarks CASSETTE DECK RED0062 HEAD BLOCK UNIT RDG0300 REEL BASE GEAR RDG0301 WINDING RELAY GEAR RDK0026-4 MAIN GEAR RDV0033-4 WINDING BELT RDV0064 CAPSTAN BELT RMB0312 TRIGGER LEVER SPRING...

  • Page 73: Cd Loading Mechanis M

    RX-ES29EE 23.2. CD Loading Mechanis m 23.2.1. CD Loading Mechanism Parts Location...
  • Page 74 RX-ES29EE 23.2.2. CD Loading Mechanism Parts List Ref. Part No. Part Name & Description Remarks TRAVERSE DECK RAE0157Z-V CT 130MP TRV RDG0455 TRAVERSE GEAR (A) RDG0456 TRAVERSE GEAR (B) RFKNCT100 TRAVERSE BASE ASS’Y 304-1 RDG0457 LOAD GEAR (A) 304-10 RXQ0632...

  • Page 75: Cabinet Part List

    RX-ES29EE 23.3. Cabinet Part List 23.3.1. Cabinet Parts Location...
  • Page 76 RX-ES29EE 23.3.2. Cabinet Part List Ref. Part No. Part Name & Description Remarks CABINET AND CHASSIS RFKKXES29EGS UPPER CABINET ASS’Y RKWX0140-Q LCD PANEL RKSX0036S-H BOTTOM CABINET REX0980 MAIN-CD WIRE REXX0212 MOTOR WIRE REEV0069 CD FF WIRE RGKX0052E-H FRONT PANEL RDG0183-J...

  • Page 77: Electrical Part List

    RX-ES29EE 23.4. Electrical Part List Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Printed Circuit Board Q1451 KRA119MTA TRANSISTOR Q1452 2SD09650RA TRANSISTOR REPV0039A CD SERVO P.C.B. [M] RTL Q1453 2SB10300RA TRANSISTOR REPV0043A MAIN P.C.B.
  • Page 78 RX-ES29EE Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks CP501 K1KA04A00105 4P CONNECTOR CP801 K1KA02A00010 2P CONNECTOR JACKS CP1301 RJS1A6804-J 4P CONNECTOR CP1450 K1KA02A00228 MOTOR CONNECTOR JK301 K2HC103B0049 JK HEADPHONE CP1902 K1KA09B00058...
  • Page 79 RX-ES29EE Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R204 D0AE102JA048 1K 1/4W R435 D0AE101JA048 100 1/4W R205 ERDS2TJ222T 2.2K 1/4W R439 ERDS2TJ222T 2.2K 1/4W R206 D0AE123JA048 12K 1/4W R443 D0AE103JA048 10K 1/4W...
  • Page 80 RX-ES29EE Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R847 D0AE472JA048 4.7K 1/4W R848 D0AE102JA048 1K 1/4W CAPACITORS R849 D0AE102JA048 1K 1/4W R850 D0AE102JA048 1K 1/4W F1D1H470A006 47P 50V R851 D0AE102JA048 1K 1/4W...
  • Page 81 RX-ES29EE Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C134 F1E1H1030001 0.01 50V C707 F1H1E223A002 0.022 25V C135 ECQB1H153JF3 0.015 50V C710 ECJ1VC1H471J 470P 50V C136 ECQB1H104JF3 0.1 50V C713 F1H1C104A041 0.1 16V...
  • Page 82 RX-ES29EE Ref. Part No. Part Name & Description Remarks C1110 F1D1H821A012 820P 50V C1201 F1D1H101A012 100P 50V C1202 F1D1C122A010 1200P 16V C1203 F1D1H101A012 100P 50V C1204 F1C1C393A013 0.039 16V C1205 ECA1CAK100XB 10 16V C1206 ECA1CAK101XB 100 16V C1207 ECA1HAK010XB 1 50V...

  • Page 83: Packaging Materials & Accessories Parts List

    RX-ES29EE 23.5. Packaging Materials & Accessories Parts List Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks PACKING MATERIALS ACCESSORIES RPGV0165 PACKING CASE N2QAHB000048 REMOTE CONTROL RPNX0111-3 POLYFOAM A1-1 RKK-HTR0283H R/C BATTERY COVER...
