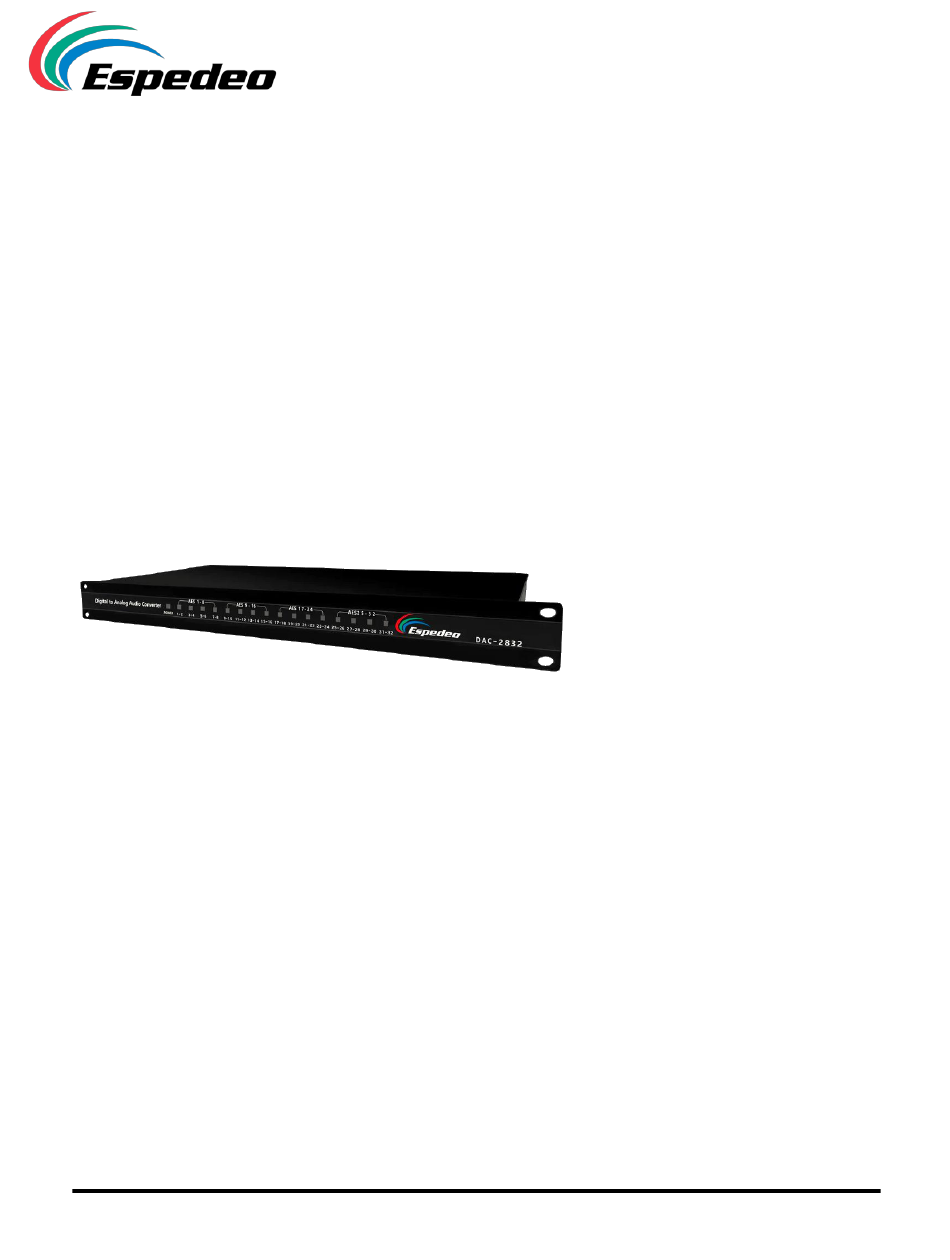

- Page 1 DAC Series Digital-to-Analog Audio Converter (Model: DAC-2808 · DAC-2812 · DAC-2816 · DAC-2824 · DAC-2832) User Manual Before installing and operating the DAC Series Digital-to-Analog Audio Converter, please read this User Manual thoroughly...
-
Page 2: Table Of Contents
AES3 / Analog Output Connection ................10 Routing Diagram ......................11 Installation and Panel Description ................13 Installation........................13 AC Mains Supply ....................... 13 Front Panel of DAC Series ..................14 Rear Panel of DAC Series ..................15 - 2 -... -
Page 3: Introduction
Projector. Each model supports the specified number of AES3 digital audio inputs through RJ-45 socket(s) and the outputs are accessible via Phoenix connectors. The Espedeo DAC Series’ front panel LED indicators show signal presence on each AES3 pair, providing an audio interface solution for your entertainment needs. -
Page 4: Dimensions
2. Dimensions Figure 1: DAC Series Dimensions (in mm) - 4 -... -
Page 5: Technical Specifications
3. Technical Specifications Model → DAC-2808 DAC-2812 DAC-2816 DAC-2824 DAC-2832 20 Hz – 20,000 Hz Frequency Range 1 x RJ-45 2 x RJ-45 2 x RJ-45 3 x RJ-45 4 x RJ-45 AES3 Input Max. AES3 Input Pairs 12 x 16 x 24 x 32 x... -
Page 6: Packing List
4. Packing List The DAC Series Digital-to-Analog Audio Converter package consists of the components listed under Table 2. Sr. No. Part Description Quantity ① DAC 28xx Digital-to-Analog Audio Converter Unit 1 PCS. Model: DAC-2808 8 PCS. Model: DAC-2812 12 PCS. -
Page 7: Safety Instructions
5. Safety Instructions Explanation of Graphical Symbols: The triangle with the lightning bolt is used to alert the user to the risk of electric shock. The triangle with the exclamation point is used to alert the user to important operating or maintenance instructions. - Page 8 IMPORTANT SAFETY INSTRUCTIONS Read these instructions carefully. Do not use this equipment near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not use near heat sources such as stoves, heat registers, radiators or other equipment (including amplifiers) that produces heat.
-
Page 9: Regulatory Information
6. Regulatory Information FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 10: Aes3 / Analog Output Connection
7. AES3 / Analog Output Connection Analog Outputs AES3 In - 10 -... -
Page 11: Routing Diagram
8. Routing Diagram Figure 2: Routing Diagram for DAC-2808 Figure 3: Routing Diagram for DAC-2812 Figure 4: Routing Diagram for DAC-2816 - 11 -... - Page 12 Figure 5 : Routing Diagram for DAC-2824 Figure 6: Routing Diagram for DAC-2832 - 12 -...
-
Page 13: Installation And Panel Description
9. Installation and Panel Description 9.1 Installation The DAC-28xx Digital-to-Analog Audio Converter is a 1U Rack device and can most conveniently be installed in the amplifier rack it connects to. NOTE: Instead of connecting the DAC-28xx to the power grid directly, it is recommended to plug the device’s mains connection to a UPS outlet. -
Page 14: Front Panel Of Dac Series
9.3 Front Panel of DAC Series Figure 7: DAC Series Front Panel ① → Power indicator ② → AES3 Input Signal Indicators - 14 -... -
Page 15: Rear Panel Of Dac Series
Power Switch ② → Equipment Power Supply: C14 mains socket. AC 100V - 240V 1.0A Max. 50/60Hz. The following power cord types are supplied with DAC Series unit, depending on the shipment region: ▪ EU - Type F - C13 ▪... - Page 16 ③ → AES3 Input: 8-channel AES3 signal input. RJ-45 connector receives the AES3 stream which can be routed to analog output as mentioned below: DAC-2808/-2812/-2816/-2824/-2832 (wherever applicable): ▪ AES3 1-8 IN - Analog Outputs 1-8 ▪ AES3 9-12 IN - Analog Outputs 9-12 ▪...
