Eko Devices CORE Quick Start Manual

Step 1
Assemble your CORE
1. Choose the standard or pediatric
tubing connector and screw into
the top of the CORE, the end
closest to the power toggle
Attach the chest piece to the
2. tubing connector
Choose either the standard or
3. pediatric barb to screw into the
base of the CORE
Attach your stethoscope tubing to
4. the barb
Slide the On / O toggle to power
5. the device. CORE will only deliver
ampli ed sound in the ON
position
Your CORE is now ready to be
used in Analog or Digital mode.
CORE is ON & CORE is OFF &
seeking device charging
CORE is ON & CORE is fully
connected charged

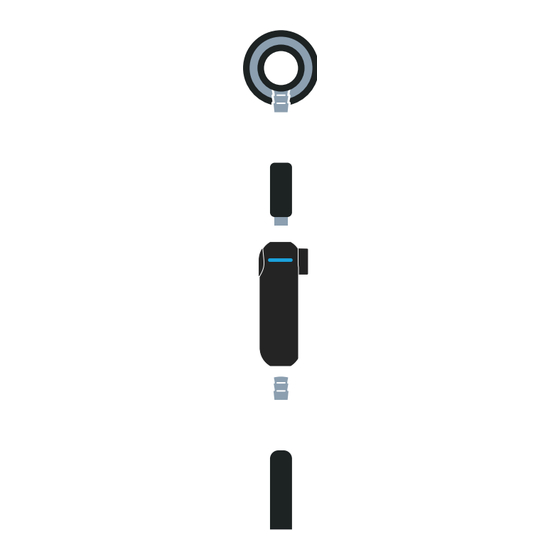

Chestpiece
Tubing connector
CORE
Barb
Stethoscope tubing
TM and © Eko Devices Inc.
LBL 055 Rev B
Step 2 (optional)
Connect CORE to the Eko App
CORE is LOW on
battery
1. Download and install the App
CORE is
recording
2. Create an account, and log in
3. Turn on the CORE
4. Follow the prompts to connect your
device and select the CORE
With the app installed, you can now
Visualize Auscultation Sounds, Create
Recordings, Save, and Share Patient
Data
